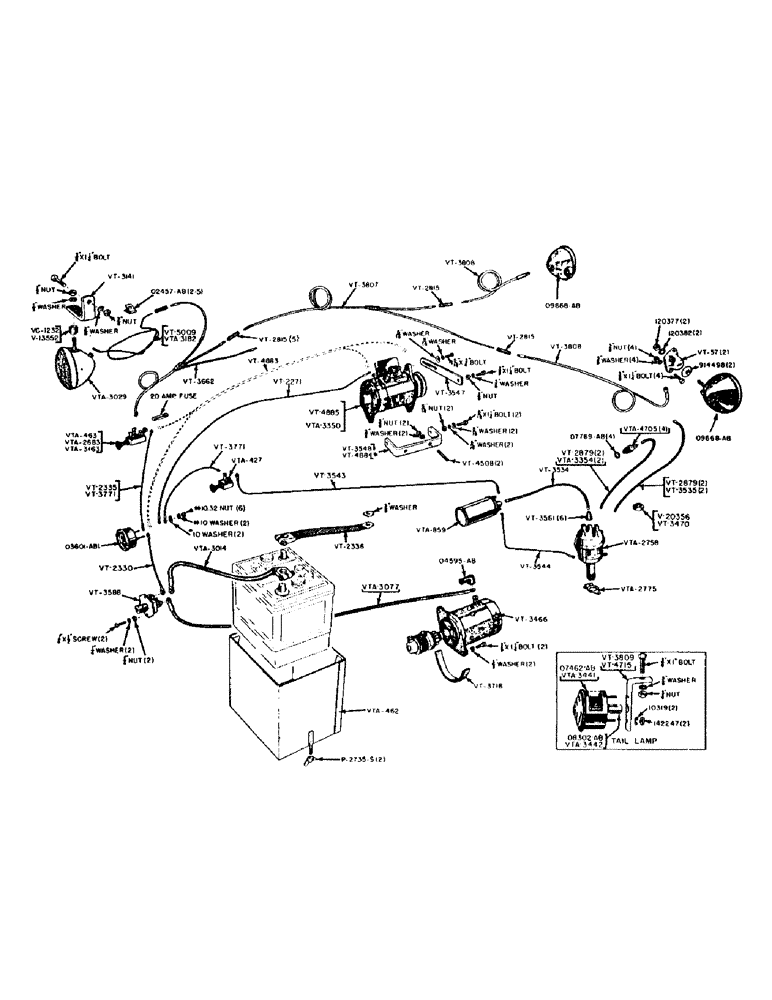

Запчасти Case IH VAI-SERIES (036) - DISTRIBUTOR IGNITION, (INCLUDING ELECTRIC LIGHTING) (02) - ENGINE

O2457AB

CLIP - wire, rear light

2-5шт.

O3601AB1

X

AMMETER - with clamp

1шт.

No. 10-32 nut, hexagon, jam, U.N.F. (Brass)

6шт.

No. 10-32 washer, Shakeproof (No. 1210)

2шт.

No. 10 washer, plain (Brass)

2шт.

O3609AB

LAMP - tail (Ruby lens) (Use VT4715, VTA3182, VTA3441, and VTA3442)

1шт.

A21753

CAP

NIPPLE - starting motor terminal

1шт.

O6330AB

LAMP-HEAD (Tractors before no. 6013525) (Use O9668AB)

1шт.

O7462AB

LAMP-TAIL (Frosted lens)

1шт.

O7769AB

X

GASKET - spark plug

4шт.

O8302AB

PLUG ASSEMBLY - tail lamp (Use with O3609AB and O7462AB)

1шт.

O9668AB

LAMP - head, sealed beam (Tractors after no. 6013524)

2шт.

P2735S

X

NUT - wing, 1/4" U.N.C. battery box

2шт.

V13552

X

BUSHING - tail lamp (For VTA3029)

1шт.

V20356

NUT

WASHER - rubber, ignition cable grommet (Tractors after no. 6000403)

1шт.

VC1232

BUSHING - tail lamp (Used with VT3665) (Use V13552)

1шт.

VT57

BRACKET - head lamp

2шт.

3/8" x 1-1/4" bolt, hexagon head, U.N.F. with hexagon nut and lockwasher

4шт.

VT2271

WIRE - generator to ammeter (Tractors after no. 5654122) (See VT4883)

1шт.

VT2330

WIRE - ammeter to starter switch

1шт.

VT2334

X

CABLE - battery to starter switch (Use VTA3014)

1шт.

VT2335

WIRE - ammeter to light switch (5-13/16" long) (Tractors before no. 5654121) (See VT3771)

1шт.

VT2336

X

STRAP -, Serial Range: battery-ground

1шт.

3/8" washer, plain, S.A.E. standard

1шт.

VT2337

CABLE - starter to starter switch (Use VTA3077)

1шт.

VT2814

CABLE - rear flood and tail light (For VT3665 and VTA3029)

1шт.

VT2815

X

CONNECTOR - cable

5шт.

VT2879

X

WIRE - no. 1 and no. 4 spark plugs (Tractors after no. 6000403)

2шт.

WIRE - no. 2 and no. 3 spark plugs (Tractors before no. 6000404) (See VTA3354)

2шт.

VT3141

CHAIN AND REAR FLOOD LIGHT BRACKET (Tractors with Eagle hitch) (Use with VT3665 and VTA3029)

1шт.

3/8" x 1-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

VT3466

MOTOR - starting (Auto-Lite no. MZ4114) (See note)

1шт.

3/8" x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT3467

GENERATOR (Auto-Lite no. GAS-4169A) (Tractors before no. 5060679) (Use VTA1637)

1шт.

VT3470

GROMMET - ignition cables (Tractors before no. 6000404)

1шт.

VT3534

X

WIRE -, Serial Range: distributor-coil

1шт.

VT3535

X

WIRE - no. 1 and no. 4 spark plugs (Tractors before no. 6000404) (See VT2879)

2шт.

VT3543

WIRE -, Serial Range: coil-ignition

1шт.

VT3544

WIRE -, Serial Range: coil-distributor

1шт.

VT3547

STRAP - generator adjusting

1шт.

3/8" x 1-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

5/16" x 3/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

5/16" washer, plain, S.A.E. standard

1шт.

VT3548

BRACKET - generator (Tractors before no. 5060679) (See VT4884)

1шт.

VT3561

X

NIPPLE - spark plug wires

6шт.

VT3587

X

COIL - ignition (Auto-Lite no. IG-4803) (Use VTA859)

1шт.

VT3588

X

SWITCH - starting

1шт.

1/4" x 1/2" screw machine, round head, U.N.C. with hexagon nut and lockwasher

2шт.

VT3618

X

PLUG - spark, Champion no. 15A-18MM (Use VTA4705)

1шт.

VT3662

CABLE - main light

1шт.

VT3664

CABLE - rear flood and tail light (For VT3665) (Use VT2814)

1шт.

VT3665

LAMP - rear flood (Use VTA3029)

1шт.

VT3718

SEAL - felt, starting motor to engine block

1шт.

VT3771

WIRE - ammeter to ignition switch (4-13/16" long)

1шт.

WIRE - ammeter to light switch (Tractors after no. 5654122) (Use VT2335)

1шт.

VT3806

BRACKET - rear light (Tractors without Eagle hitch) (Use VT3141)

1шт.

3/8" x 1-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

VT3807

CABLE - front lamp, long

1шт.

VT3808

CABLE - front lamp, short

2шт.

VT3809

BRACKET - tail lamp (Used with O3609AB and O7462) (See VT4715)

1-2шт.

VT3810

CABLE - rear light (For O3609AB) (Use VTA3182)

1шт.

VT4001

X

DISTRIBUTOR (Use VTA2758)

1шт.

VT4508

STUD - generator bracket

2шт.

3/8" nut, hexagon, U.N.C. with lockwasher

2шт.

VT4715

BRACKET - mounting, tail lamp (For VTA3441) (See VT3809)

1шт.

3/8" x 1" bolt, hexagon head, U.N.F. with hexagon nut and lockwasher

1шт.

VT4883

CABLE - generator to ammeter and light switch (Tractors before no. 5654123) (See VT2271)

1шт.

VT4884

BRACKET - generator (Tractors after no. 5060678) (See VT3548)

1шт.

5/16" x 1-1/4" bolt, hexagon head, U.N.F. with hexagon nut and lockwasher

2шт.

5/16" washer, plain, S.A.E. standard

2шт.

VT4885

GENERATOR (Auto-Lite no. GBM-4823A-5) (Tractors after no. 5060678 and before no. 5654123) (Use VTA3350)

1шт.

VT5009

CABLE - dual tail lamp (Use when both O3609AB and O7462AB are used)

1шт.

VTA47

BOX - battery (Tractors before no. 4800001) (Use VTA462)

1шт.

VTA55

RING - clamp, battery (Tractors before no. 4925001)

1шт.

VTA427

X

SWITCH - ignition

1шт.

VTA462

BOX ASSEMBLY - battery (Tractors after no. 4925000)

1шт.

VTA463

SWITCH - light (Tractors before no. 5060679) (See VTA2683 and VTA3163)

1шт.

VTA859

X

COIL - ignition (Auto-Lite CR-6010)

1шт.

VTA1637

GENERATOR REPLACEMENT UNIT FOR VT3467 GENERATOR (Tractors before no. 5060679)

1шт.

VTA2683

X

SWITCH - light (Tractors after no. 5060678 and before no. 5654123) (See VTA463 and VTA3163)

1шт.

VTA2734

GENERATOR REPLACEMENT UNIT FOR VT3467 GENERATOR (Use VTA1637)

1шт.

VTA2758

X

DISTRIBUTOR AND ADVANCE ARM ASSEMBLY (Auto-Lite no. IAD6003-2F) (See note)

1шт.

VTA2775

X

ADVANCE ARM ASSEMBLY (See VTA2758) (Auto-Lite no. IG-1860A1)

1шт.

VTA3014

X

CABLE - battery to starter switch (Complete)

1шт.

VTA3029

X

LIGHT - combination flood and tail

1шт.

1/2" nut, hexagon, U.N.C. with lockwasher

1шт.

VTA3077

CABLE - starter to starter switch

1шт.

VTA3162

X

GENERATOR W/AUTOMATIC VOLTAGE CONTROL (Auto-Lite no. GHD6001A) (Use VTA3350)

1шт.

VTA3163

X

SWITCH - light (Tractors after no. 5654122) (See VTA463 and VTA2683)

1шт.

VTA3182

CABLE - rear light (For O3609AB and VTA3441)

1шт.

VTA3350

X

GENERATOR W/AUTOMATIC VOLTAGE CONTROL (Auto-Lite no. GHD60012)

1шт.

VTA3354

X

WIRE - no. 2 and no. 3 spark plugs (Tractors after no. 6000403)

2шт.

VTA3441

LAMP - tail, red

1шт.

1/4" - 20 nut, hexagon, U.N.C. with lockwasher

2шт.

VTA3442

PLUG - connection, tail lamp (Use with VTA3441)

1шт.

VTA4705

X

PLUG - spark, Champion no. 8 COM, 18 MM

4шт.
