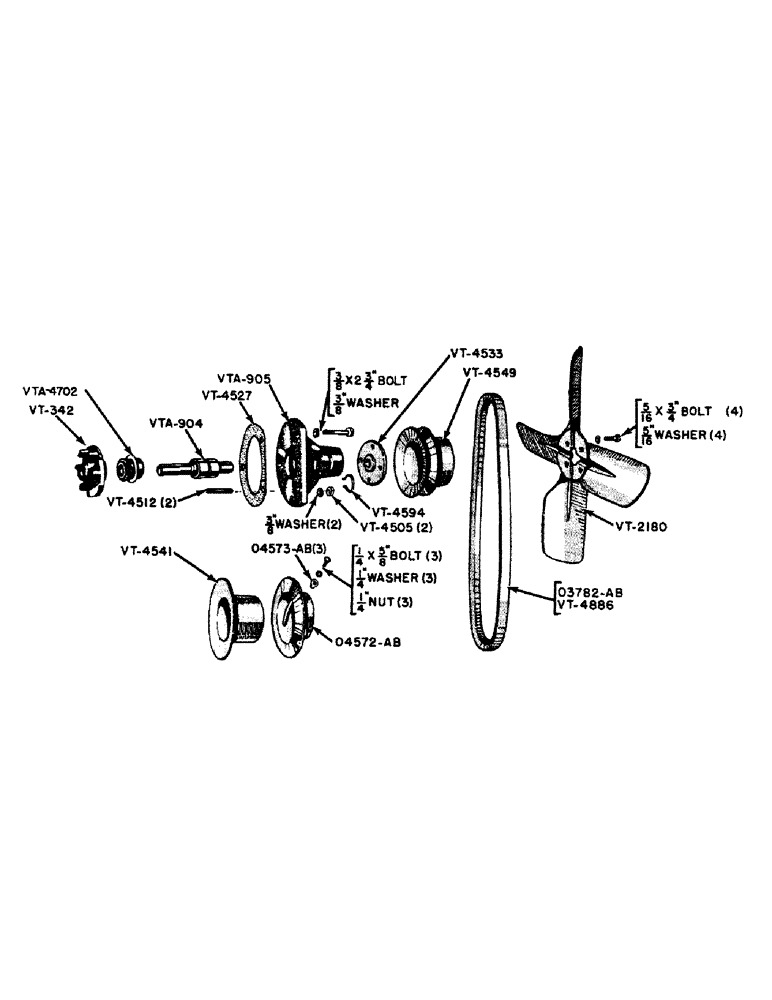

Запчасти Case IH VAI-SERIES (032) - WATER PUMP AND FAN, (ENGINES AFTER NO. 72-E07778) (02) - ENGINE

O3782AB

BELT - fan (Engines not equipped with generator)

1шт.

O4572AB

FLANGE - fan adjusting, adjusting half (Engines without generator)

1шт.

O4573AB

WASHER - lipped (Engines without generator)

3шт.

1/4" x 5/8" bolt, carriage, U.N.C. with hexagon nut and lockwasher

3шт.

VT341

BODY (Use VTA905)

1шт.

VT342

IMPELLER - water pump

1шт.

VT2180

X

FAN

1шт.

5/16" x 3/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT4505

NUT - hexagon 3/8" U.N.C.

2шт.

VT4512

X

STUD - water pump 3/8 x 1"

2шт.

3/8" washer, Shakeproof, I.T.

2шт.

VT4527

X

GASKET - pump body

1шт.

VT4533

HUB - fan

1шт.

VT4541

FLANGE - fan hub, stationary half (Engines without generator)

1шт.

VT4549

X

PULLEY - water pump (Engines equipped with generator)

1шт.

VT4594

X

RING - retainer

1шт.

VT4886

X

"V" BELT - fan and generator

1шт.

VTA904

X

Shaft with bearing and slinger

1шт.

VTA905

X

BODY AND SEAL ASSEMBLY

1шт.

3/8" x 2-3/4" bolt, hexagon head, U.N.C.

1шт.

3/8" washer, Shakeproof, I.T.

1шт.

VTA908

X

WATER PUMP ASSEMBLY (Complete) with gasket

1шт.

VTA4702

SEAL ASSEMBLY

1шт.
