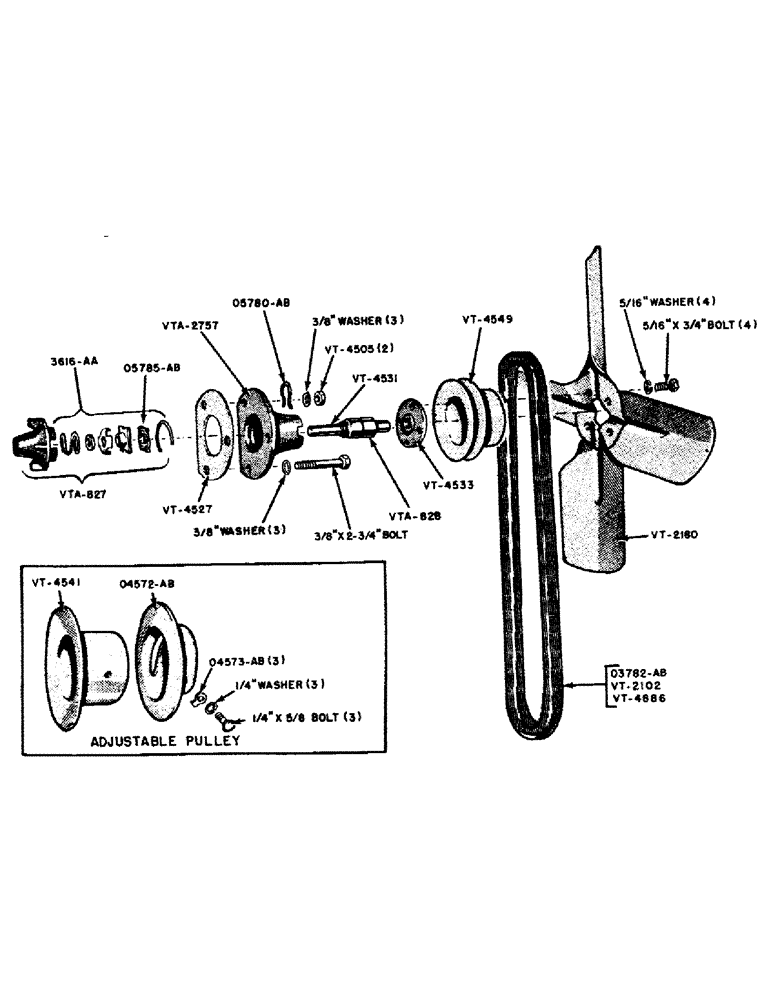

Запчасти Case IH VAI-SERIES (031) - WATER PUMP AND FAN, (ENGINES NO. A4700000 THROUGH NO. 72-E07778) (02) - ENGINE

3616-AA

SEAL ASSEMBLY

1шт.

O3782AB

BELT - fan (Engines not equipped with generator)

1шт.

O4572AB

FLANGE - fan adjusting, adjusting half (Engines without generator)

1шт.

O4573AB

WASHER - lipped (Engines without generator)

3шт.

O5780AB

X

SNAP RING - pump shaft

1шт.

O5785AB

WASHER - carbon seal, for 3616AA

1шт.

VT326

IMPELLER (Use VTA827)

1шт.

VT327

PUMP BODY (Use VTA2757)

1шт.

VT2102

X

BELT - fan and generator (For generator VT3467)

1шт.

VT2180

X

FAN

1шт.

5/16" x 3/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT4505

NUT - hexagon 3/8" U.N.C.

2шт.

VT4527

X

GASKET - pump body

1шт.

VT4531

X

SLINGER

1шт.

VT4533

HUB - fan

1шт.

VT4541

FLANGE - fan hub stationary half (Engines without generator)

1шт.

1/4" x 5/8" bolt, carriage, U.N.C. with hexagon nut and lockwasher

3шт.

VT4549

X

PULLEY - water pump (Engines equipped with generator)

1шт.

VT4886

X

"V" BELT - fan and generator (For VT4885 generator)

1шт.

VTA826

X

WATER PUMP ASSEMBLY - complete (Use VTA908)

1шт.

VTA827

IMPELLER AND SEAL

1шт.

VTA828

X

SHAFT - with bearing and slinger

1шт.

VTA908

X

WATER PUMP ASSEMBLY (Complete) with gasket (See page 32)

1шт.

VTA2757

BODY ASSEMBLY

1шт.

3/8" x 2-3/4" bolt, hexagon head, U.N.C.

1шт.

3/8" washer - Shakeproof, I.T.

3шт.
