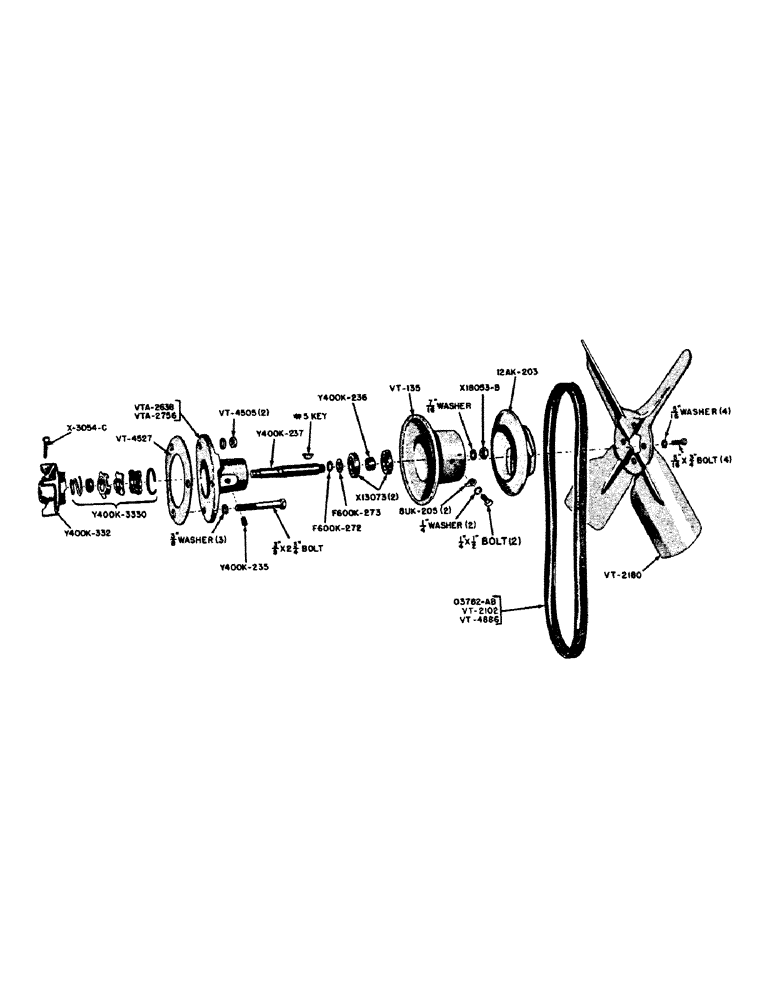

Запчасти Case IH VAI-SERIES (030) - WATER PUMP AND FAN, (ENGINES BEFORE NO. A4700000) (02) - ENGINE

O3782AB

BELT - fan (Engines not equipped with generator)

1шт.

VT135

X

HUB - fan

1шт.

VT307

BODY - pump (Use VTA2756)

1шт.

VT2102

X

BELT - fan and generator (Used with VT3467 generator)

1шт.

VT2180

X

FAN

1шт.

5/16" x 3/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT4505

NUT - hexagon, 3/8" U.N.C.

2шт.

VT4527

X

GASKET - drive support

1шт.

VT4886

X

"V" BELT - fan and generator (Used with VT4885 generator)

1шт.

VTA773

ASSEMBLY

PUMP REPAIR KIT (Complete shaft, bearing, impeller, and seal assembly ball bearing units) (Use VTA896 and VTA908)

1шт.

VTA896

FAN PULLEY ASSEMBLY (Use with VTA908) (Includes (1) O4572AB, (3) O4573AB, (1) VT4541, and (3) 1/4" x 5/8" bolt, carriage, U.N.C. with hexagon nut and lockwasher) (See page 32)

1шт.

VTA908

X

WATER PUMP ASSEMBLY (Complete) with gasket (See page 32)

1шт.

VTA2638

X

BODY - water pump (Ball bearing pumps)

1шт.

VTA2756

X

BODY - water pump (Roller bearing pumps)

1шт.

3/8" x 2-3/4" bolt, hexagon head, U.N.C.

1шт.

3/8" washer, Shakeproof, I.T.

3шт.

12AK-203

FLANGE - adjustment, fan belt

1шт.

8UK-205

LOCK - nut

2шт.

1/4" x 1/3" bolt hexagon head, U.N.C. with lockwasher

2шт.

D600G283

BUSHING - thrust (Use VTA2638 or VTA2756)

1шт.

F400K217

SHIELD - grease, felt, front (Roller bearing pumps)

1шт.

F400K218

SHIELD - grease, felt, rear (Roller bearing pumps)

1шт.

F400K219

RETAINER AND LOCK NUT (Roller bearing pumps)

1шт.

F400K220

RETAINER - snap ring (Roller bearing pumps)

1шт.

F400K221

RETAINER - grease seal (Roller bearing pumps)

1шт.

F600K272

SNAP RING - bearing

1шт.

F600K273

RETAINER - snap ring

1шт.

F600K293

SPACER - bearing, outer (Roller bearing pumps)

1шт.

X3054C

SCREW - set, dog point

1шт.

X5292

SCREW - set, drive support (Roller bearing pumps)

1шт.

X13073

BEARING - ball

2шт.

X13806

BEARING (Roller bearing pumps)

2шт.

X18053B

NUT - hexagon 7/16"

1шт.

7/16" washer, lock

1шт.

Y400K235

SCREW - bearing retainer

1шт.

Y400K236

SPACER - bearing

1шт.

Y400K237

SHAFT - drive

1шт.

No. 5 key, Woodruff

1шт.

Y400K247

SPACER - bearing (Roller bearing pumps)

1шт.

Y400K332

IMPELLER

1шт.

Y400K3330

SEAL ASSEMBLY

1шт.

Y400K3353

WATER PUMP ASSEMBLY (Use VTA896 and VTA908)

1шт.
