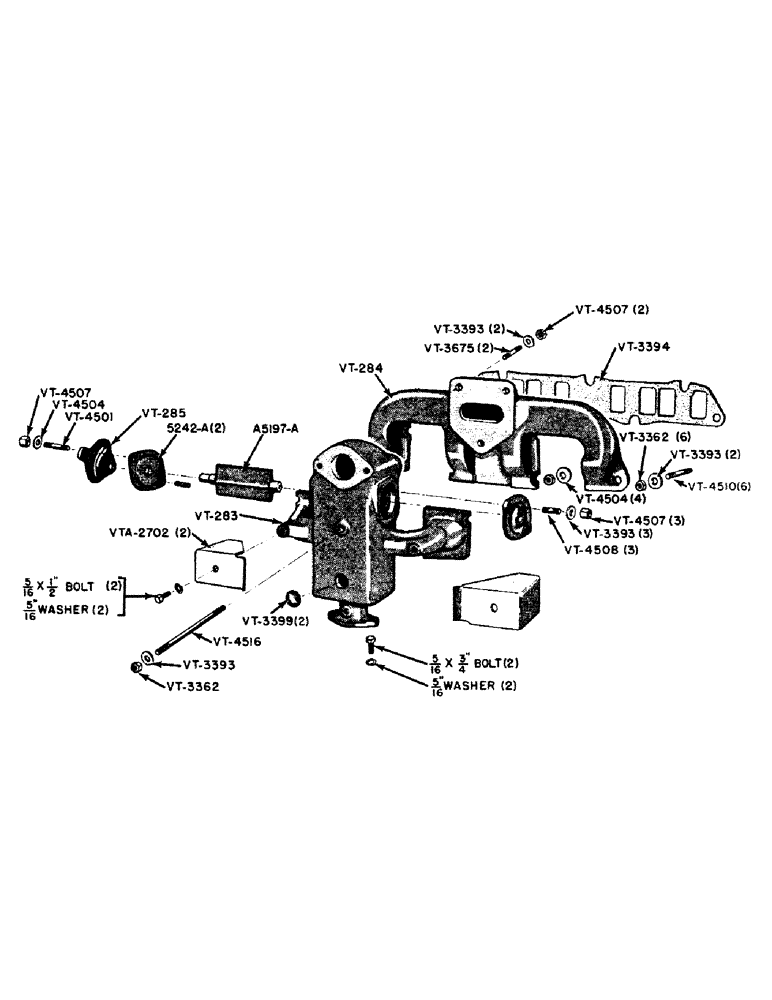

Запчасти Case IH VAI-SERIES (015) - LOW COST FUEL MANIFOLD (02) - ENGINE

A5197A

VALVE - heat control

1шт.

5242A

FLANGE - heat control

2шт.

VT283

MANIFOLD - intake

1шт.

5/16" x 3/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT284

MANIFOLD - exhaust

1шт.

3/8" x 1" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT285

LEVER - heat control valve

1шт.

VT286

ELBOW - exhaust (See page 14)

1шт.

VT3362

X

NUT - hexagon (Brass) 3/8" - 16

7шт.

VT3393

X

WASHER - 3/4" O.D. x 13/32" I.D. x 1/16"

8шт.

VT3394

X

GASKET - manifold

1шт.

VT3399

PLUG - hubbard (1" diameter)

2шт.

VT3591

PIPE - exhaust (See page 14)

1шт.

VT3675

X

STUD - 3/8" x 1-1/2"

2шт.

VT3864

X

CLAMP - muffler (See page 14)

1шт.

5/16" x 1-1/4" screw, machine, with square nut and lockwasher

1шт.

VT4501

STUD - 3/8" x 1-11/16"

1шт.

VT4504

WASHER

- 7/8" O.D. x 13/32" I.D. x 1/8"

5шт.

VT4507

NUT - hexagon (Brass) 3/8" - 16 x 21/64" high

6шт.

VT4508

STUD - 3/8" - 16 x 1-1/4"

3шт.

VT4510

X

STUD - manifold 3/8" x 1-1/4"

6шт.

VT4516

X

STUD - 3/8" - 16 x 6-3/8"

1шт.

VTA1135

X

MUFFLER - exhaust, with clamp (Machinery item) (See page 14)

1шт.

VTA2702

HEAT BOX ASSEMBLY

2шт.

5/16" x 1/2" bolt, hexagon head, U.N.C. with lockwasher

2шт.
