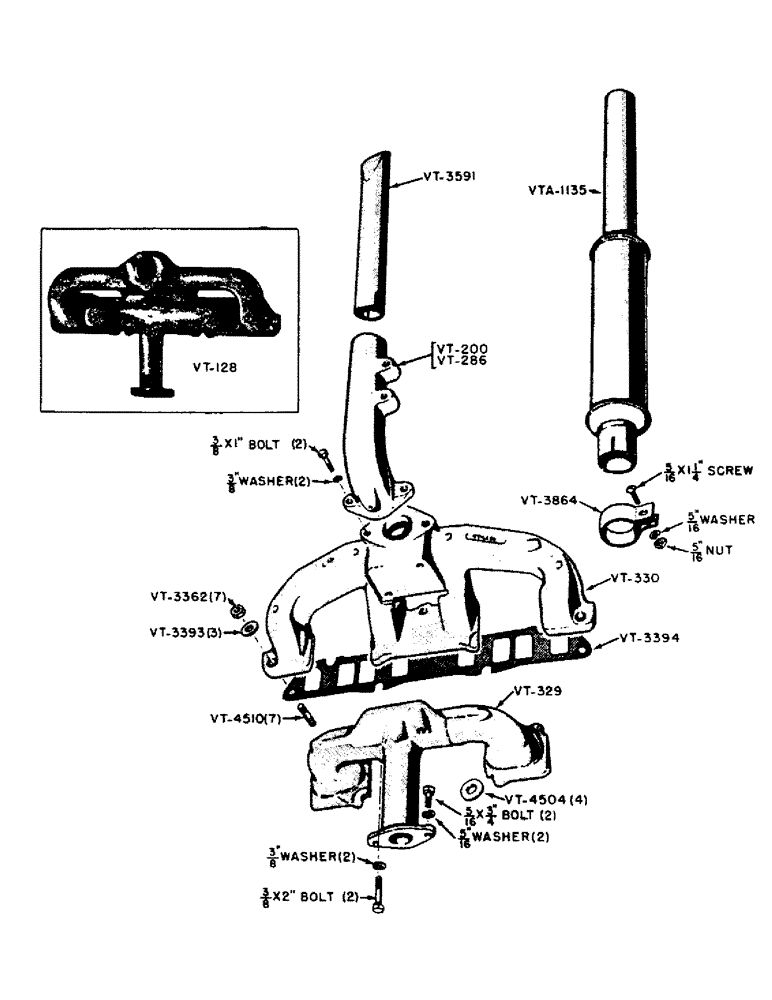

Запчасти Case IH VAI-SERIES (014) - GASOLINE MANIFOD, EXHAUST PIPE, AND MUFFLER (02) - ENGINE

O1581AB

STUD - 3/8" x 2-1/4", used with VTA924 manifold unit

2шт.

3/8" nut, hexagon, U.N.F.

2шт.

V21206

SPARE PART

SPACER - used with VTA924 manifold unit

2шт.

VT128

MANIFOLD - intake and exhaust (Engines before no. A4700000) (Use VTA924)

1шт.

VT200

ELBOW - exhaust (Engines before no. A4700000)

1шт.

VT286

ELBOW - exhaust (Engines after no. A4700000)

1шт.

3/8" x 1" bolt, hexagon, U.N.C. with lockwasher

2шт.

VT329

X

MANIFOLD - intake (Engines after no. A4700000)

1шт.

5/16" x 3/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT330

MANIFOLD - exhaust (Engines after no. A4700000)

1шт.

3/8" x 2" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT3362

X

NUT - hexagon (Brass) 3/8" - 16

7шт.

VT3393

X

WASHER - plain 3/4" O.D. x 13/32" I.D. x 1/16"

3шт.

VT3394

X

GASKET - manifold

1шт.

VT3591

PIPE - exhaust

1шт.

VT3864

X

CLAMP - muffler

1шт.

5/16" x 1/4" screw, machine, with square nut and lockwasher

1шт.

VT4504

WASHER

- plain 7/8" O.D. x 13/32" I.D. x 1/8"

4шт.

VT4510

X

STUD - manifold 3/8" x 1-3/4"

7шт.

VTA924

INTAKE AND EXHAUST MANIFOLD UNIT (Consists of: 1 VT329, 1 VT330, 1 VT4510, 2 V21206, 2 O1581AB, and commodities

1шт.

VTA1135

X

MUFFLER - exhaust, with clamp (Machinery item)

1шт.
