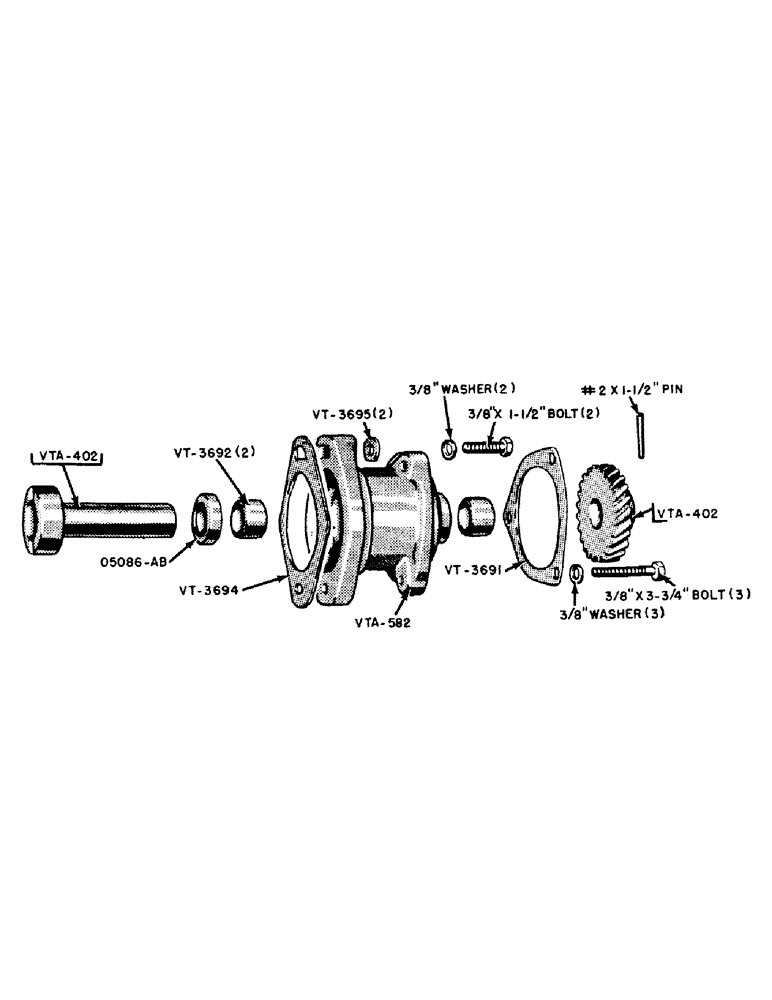

Запчасти Case IH VAI-SERIES (013) - MAGNETO ADAPTER (02) - ENGINE

O5086AB

X

SEAL - oil, magneto adapter shaft

1шт.

VT193

FRAME - adapter (Use VTA582)

1шт.

VT3289

GEAR - magneto drive (Use VTA402)

1шт.

No. 2 x 1-1/2" pin, taper

1шт.

VT3691

X

GASKET - magneto adapter

1шт.

VT3692

BUSHING - magneto adapter

2шт.

VT3693

SHAT - magneto adapter drive (Use VTA402)

1шт.

VT3694

X

GASKET - magneto to adapter frame

1шт.

VT3695

X

WASHER - magneto stud

2шт.

3/8" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VTA402

SHAFT - drive and gear assembly

1шт.

VTA582

FRAME - magneto adapter drive

1шт.

3/8" x 3-1/4" bolt, hexagon head, U.N.C. with lockwasher

3шт.
