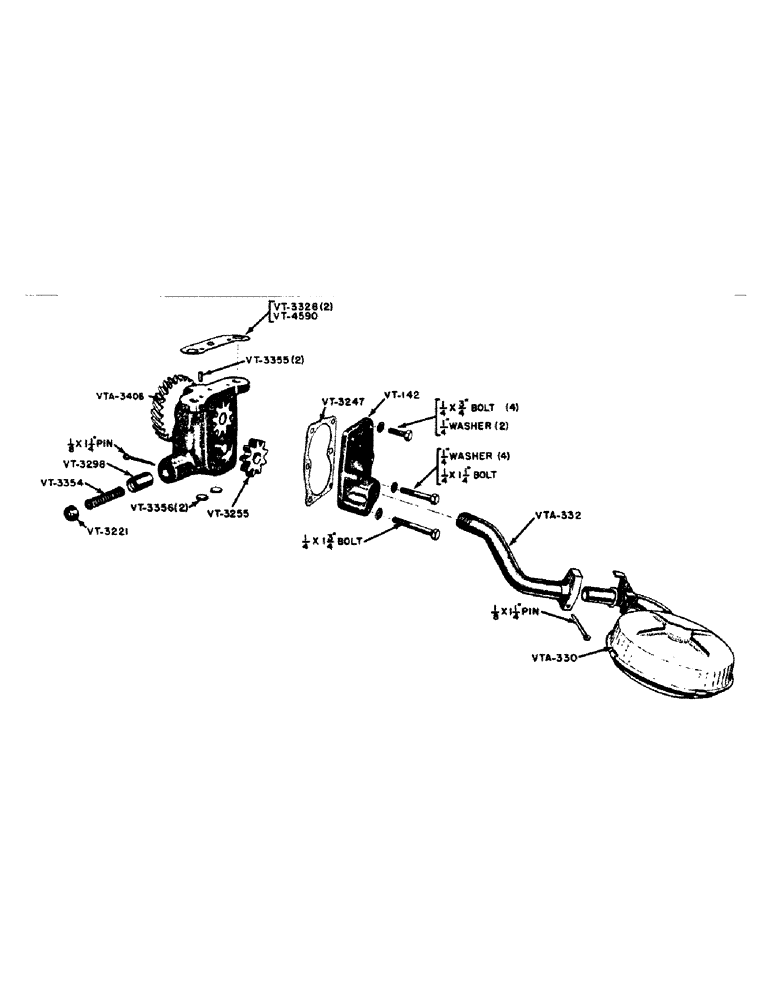

Запчасти Case IH VAI-SERIES (012) - ENGINE OIL PUMP (02) - ENGINE

VT125

X

PUMP BODY AND BEARING CAP (Use VTA2506)

1шт.

VT142

X

COVER - oil pump body

1шт.

1/4" x 3/4" bolt, hexagon head, U.N.C.

4шт.

1/4" x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

1/4" x 1-3/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

1/4" washer, lock

2шт.

1/4" washer, Shakeproof, I.T.

2шт.

VT158

X

BODY - oil pump (Use VTA3408)

1шт.

VT3221

X

RETAINER - relief spring

1шт.

VT3223

BUSHING - oil pump body (See VTA3408)

2шт.

VT3226

X

GEAR - drive, oil pump (Use VTA3408)

1шт.

VT3247

X

GASKET - oil pump body cover

1шт.

VT3252

X

SHAFT - drive, oil pump body (Use VTA3408)

1шт.

VT3254

X

GEAR - driver, oil pump, 9 tooth (Use VTA3408)

1шт.

No. 207 key, Woodruff

1шт.

VT3255

X

GEAR - driven, oil pump (9 tooth)

1шт.

VT3298

X

VALVE - relief, oil pressure

1шт.

VT3328

X

SHIM - (.002") (Pump body to main bearing cap)

2шт.

VT3354

X

SPRING - oil pressure relief

1шт.

VT3355

PIN - dowel (Front main bearing cap)

2шт.

VT3356

PLUG - Hubbard, 1/2" diameter

21шт.

VT4528

PIN - 1/4" x 1/4" (Used in VT3254, Serial Range: prior-key)

1шт.

VT4590

X

SHIM - (.005") (Pump body to main bearing cap)

1шт.

VTA330

FLOAT-O, assembly

1шт.

VTA332

PIPE - suction, assembly

1шт.

1/8" x 1-1/4" pin, cotter

1шт.

VTA2506

X

COMPLETE PUMP ASSEMBLY AND BEARING CAP - less float and suction pipe (Engines before VAB18536)

1шт.

VTA2507

X

COMPLETE PUMP ASSEMBLY - less bearing cap, float and suction pipe (Engines before VAB-18535)

1шт.

VTA3408

X

OIL PUMP BODY, drive shaft assembly and shims (Engines after VAB18535) 1/8" x 1-1/4" pin, cotter

1шт.
