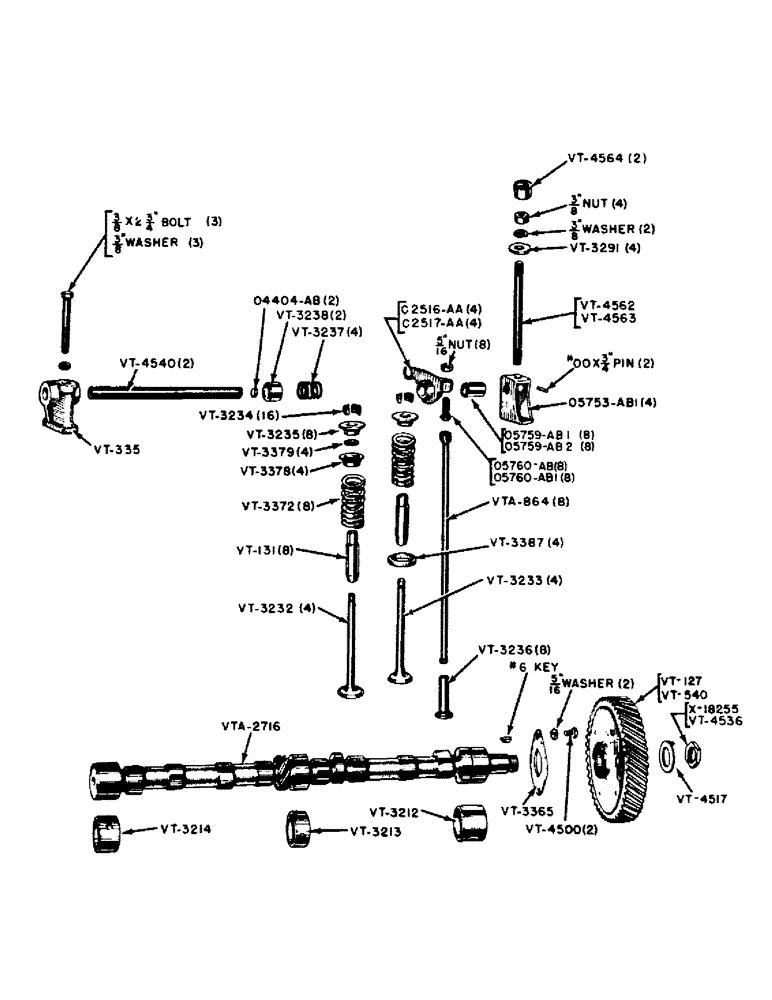

Запчасти Case IH VAI-SERIES (011) - VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

A2516AA

X

ARM - rocker, right-hand assembly (Use C-2516-AA)

1шт.

A2517AA

X

ARM - rocker, left-hand assembly (Use C-2517-AA)

1шт.

B2516AA

X

ARM - rocker, right-hand assembly (Engines before no. 72-G06248) (Use C-2516-AA)

1шт.

B2517AA

X

ARM - rocker, left-hand assembly (Engines before no. 72-G06248) (Use C-2517-AA)

1шт.

C2516AA

X

ARM - rocker, right-hand assembly (Engines after no. 72-G06247)

4шт.

C2517AA

X

ARM - rocker, left-hand assembly (Engines after no. 72-G06247)

4шт.

O4404AB

X

PLUG - rocker arm shaft

2шт.

O5753AB1

BRACKET - rocker arm shaft

4шт.

3/8" x 2-3/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

O5759AB1

BUSHING - for A-2516-AA valve rocker arms (O.D. .754")

8шт.

O5759AB2

X

BUSHING - for B-2516-AA, B-2517-AA, C-2516-AA and C-2517-AA valve rocker arms (O.D. .802")

8шт.

O5760AB

X

SCREW - adjusting, rocker arm (Use with A-2516-AA, A-2517-AA, B-2516-AA and B-2517-AA)

8шт.

O5760AB1

X

SCREW - adjusting, rocker arm (Use with C-2516AA and C-2517-AA)

8шт.

5/16" nut, hexagon jam, U.N.F.

8шт.

12CH208

WASHER - plain (Used with VT-126)

1шт.

VT126

CAMSHAFT (Use VTA-2716)

1шт.

VT127

X

GEAR - camshaft, 48 teeth (Before tractor no. 5365687) (See VT540)

1шт.

VT131

X

GUIDE - valve stem (Use VTA911)

8шт.

VT333

CAMSHAFT (Use VTA2716)

1шт.

VT335

BRACKET - center, rocker shaft

1шт.

3/8" x 2-3/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

VT540

GEAR - camshaft, 48 teeth (After tractor no. 5365686) (See VTA857)

1шт.

VT3212

X

BUSHING - camshaft, front (See VTA2621)

1шт.

VT3213

BUSHING - camshaft, center (See VTA2621)

1шт.

VT3214

X

BUSHING - camshaft, rear (See VTA2621)

1шт.

VT3232

X

VALVE - intake (See VTA2634)

4шт.

VT3233

X

VAVLE - exhaust (See VTA2635)

4шт.

VT3234

X

LOCK - retainer, valve spring

16шт.

VT3235

X

RETAINER - valve spring

8шт.

VT3236

X

TAPPET - valve

8шт.

VT3237

X

SPRING - rocker shaft

4шт.

VT3238

X

SPACER - rocker shaft

2шт.

VT3239

X

ROD - push (Use VTA864)

1шт.

VT3242

STUD (Use 1 VT4562, 1 VT4564 and 1 3/8" hexagon nut)

1шт.

VT3287

STUD (Use 1 VT4563, 1 VT4564 and 1 3/8" hexagon nut)

1шт.

VT3291

X

WASHER - 1" O.D. x 13/32" I.D. x 1/8"

4шт.

VT3365

X

PLATE - thrust, camshaft

1шт.

VT3372

SPRING

- valve

8шт.

VT3378

X

RETAINER - gasket, intake valve stem

4шт.

VT3379

X

GASKET - valve stem

4шт.

VT3387

INSERT - valve seat

4шт.

VT4500

X

SCREW - special hexagon head, 5/16 - 18 x 1/2"

2шт.

5/16" washer, Shakeproof, E.T.

2шт.

VT4517

X

NUT LOCK - camshaft (Used with VT333)

1шт.

VT4536

X

NUT - camshaft (Used with VT333)

1шт.

VT4540

X

SHAFT - rocker

2шт.

No. 00 x 3/4" pin taper

2шт.

VT4562

X

STUD - 3/8" x 4-3/8"

1шт.

VT4563

STUD - 3/8" x 4-3/4"

1шт.

3/8" nut, hexagon, N.C.

4шт.

3/8" washer, lock

2шт.

VT4564

X

SPACER - lower, valve cover studs

2шт.

VTA864

X

ROD - push

8шт.

VTA911

X

Set of four valve stem guides

2шт.

VTA2621

X

Set of camshaft bushings

1шт.

VTA2634

Set of four intake valves

1шт.

VTA2635

X

Set of four exhaust valves

1шт.

VTA2716

Camshaft with nut

1шт.

No. 6 key, Woodruff

1шт.

X18255

NUT - camshaft (Used with VT126)

1шт.
