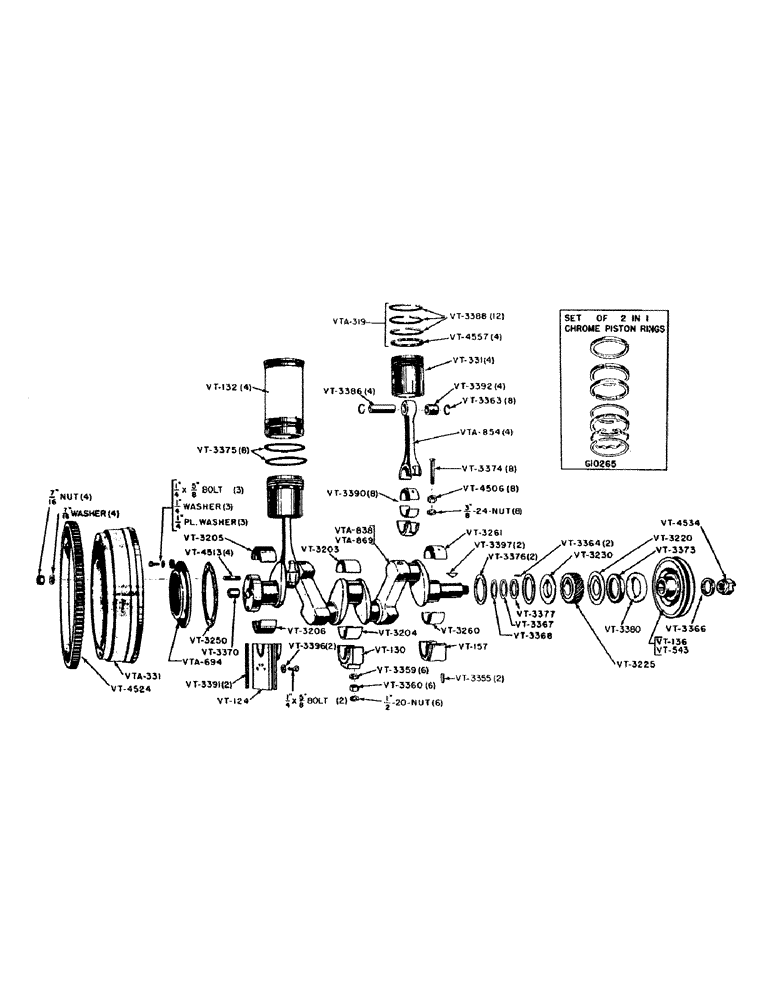

Запчасти Case IH VAI-SERIES (009) - PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

VT124

BLOCK - rear bearing cap and filler, crankshaft

1шт.

1/2" - 20 nut, pal, crankshaft

2шт.

1/4" x 5/8" screw, cap, hexagon head, U.N.C., crankshaft

2шт.

VT130

CAP - bearing, crankshaft center

1шт.

1/2" - 20 nut, pal, crankshaft

2шт.

VT136

X

PULLEY - fan drive (Tractors before no. 5159895), crankshaft

1шт.

VT141

FLYWHEEL (Use VTA331), crankshaft

1шт.

VT157

CAP - bearing, front, crankshaft

1шт.

1/2" - 20 nut, pal, crankshaft

2шт.

VT543

PULLEY - fan drive (Tractors after no. 5159894), crankshaft

1шт.

VT3161

LOCKNUT - flywheel (Use 4-7/16" lockwasher), crankshaft

1шт.

VT3203

X

BEARING - crankshaft, center upper (Standard) see VTA2608

1шт.

VT32032

BEARING - crankshaft, center upper (.002 undersize) see VTA2609

1шт.

VT320320

X

BEARING - crankshaft, center upper (.020 undersize) see VTA2610

1шт.

VT320322

BEARING - crankshaft, center upper (.022 undersize) see VTA2611

1шт.

VT320340

BEARING - crankshaft, center upper (.040 undersize) see VTA2612

1шт.

VT3203SF

BEARING - crankshaft, center upper (Semi-finished) see VTA2613

1шт.

VT3204

X

BEARING - crankshaft, center lower (Standard) see VTA2608

1шт.

VT32042

BEARING - crankshaft, center lower (.002 undersize) see VTA2609

1шт.

VT320420

X

BEARING - crankshaft, center lower (.020 undersize) see VTA2610

1шт.

VT320422

BEARING - crankshaft, center lower (.022 undersize) see VTA2611

1шт.

VT320440

BEARING - crankshaft, center lower (.040 undersize) see VTA2612

1шт.

VT3204SF

BEARING - crankshaft, center lower (Semi-finished) see VTA2613

1шт.

VT3205

SLEEVE CYLINDER

BEARING - crankshaft, rear upper (Standard) see VTA2608

1шт.

VT32052

BEARING - crankshaft, rear upper (.002 undersize) see VTA2609

1шт.

VT320520

BEARING - crankshaft, rear upper (.020 undersize) see VTA2610

1шт.

VT320522

BEARING - crankshaft, rear upper (.022 undersize) see VTA2611

1шт.

VT320540

BEARING - crankshaft, rear upper (.040 undersize) see VTA2612

1шт.

VT3205SF

BEARING - crankshaft, rear upper (Semi-finished) see VTA2613

1шт.

VT3206

SLEEVE CYLINDER

BEARING - crankshaft, rear lower (Standard) see VTA2608

1шт.

VT32062

BEARING - crankshaft, rear lower (.002 undersize) see VTA2609

1шт.

VT320620

BEARING - crankshaft, rear lower (.020 undersize) see VTA2610

1шт.

VT320622

BEARING - crankshaft, rear lower (.022 undersize) see VTA2611

1шт.

VT320640

BEARING - crankshaft, rear lower (.040 undersize) see VTA2612

1шт.

VT3206SF

BEARING - crankshaft, rear lower (Semi-finished) see VTA2613

1шт.

VT3220

X

THROWER - crankshaft oil

1шт.

VT3225

X

GEAR - crankshaft, 24 teeth

1шт.

VT3230

X

PLATE - crankshaft thrust

1шт.

VT3250

X

GASKET - crankshaft oil seal retainer

1шт.

VT3260

X

BEARING - crankshaft, front lower (Standard) see VTA2608)

1шт.

VT32602

X

BEARING - crankshaft, front lower (.002 undersize) see VTA2609

1шт.

VT326020

X

BEARING - crankshaft, front lower (.020 undersize) see VTA2610

1шт.

VT326022

BEARING - crankshaft, front lower (.022 undersize) see VTA2611

1шт.

VT326040

X

BEARING - crankshaft, front lower (.040 undersize) see VTA2612

1шт.

VT3260SF

BEARING - crankshaft, front lower (Semi-finished) see VTA2613

1шт.

VT3261

X

BEARING - crankshaft, front upper (Standard) see VTA2608

1шт.

VT32612

X

BEARING - crankshaft, front upper (.002 undersize) see VTA2609

1шт.

VT326120

X

BEARING - crankshaft, front upper (.020 undersize) see VTA2610

1шт.

VT326122

BEARING - crankshaft, front upper (.022 undersize) see VTA2611

1шт.

VT326140

X

BEARING - crankshaft, front upper (.040 undersize) see VTA2612

1шт.

VT3261SF

BEARING - crankshaft, front upper (Semi-finished) see VTA2613

1шт.

VT3355

PIN - dowel, crankshaft

2шт.

VT3359

WASHER - plain 1/2", crankshaft

6шт.

VT3360

NUT - 1/2" - 2 x 7/16" high, crankshaft

6шт.

VT3364

X

PIN - crankshaft thrust washer

2шт.

VT3366

X

COLLAR - starting jaw, crankshaft

1шт.

VT3367

X

SHIM - thrust, crankshaft (.002)

1шт.

VT3368

X

SHIM - thrust, crankshaft (.008)

1шт.

VT3370

X

BUSHING - pilot, crankshaft

1шт.

VT3373

OIL SEAL - crankshaft, front

1шт.

VT3376

WASHER

- thrust, crankshaft

2шт.

VT3377

X

SPACER - thrust, crankshaft

1шт.

VT3380

DUST SEAL - fan belt pulley, crankshaft

1шт.

VT3391

PACKING

- rear bearing filler block, crankshaft

2шт.

VT3396

X

GASKET - rear bearing filler block, crankshaft

2шт.

VT3397

KEY - Hi Pro no. 808, crankshaft

2шт.

VT4513

X

STUD -7/16 x 1-3/4", crankshaft

4шт.

7/16" nut, hexagon, U.N.F. with lockwasher, crankshaft

4шт.

VT4524

X

RING GEAR - 96 teeth, crankshaft

1шт.

VT4534

JAW - starting, crankshaft

1шт.

VTA331

Flywheel with ring gear, crankshaft

1шт.

VTA694

X

SEAL AND RETAINER - crankshaft, rear

1шт.

1/4" x 5/8" bolt, hexagon head, U.N.C., crankshaft

3шт.

1/4" washer, plain, crankshaft

3шт.

1/4" washer, Shakeproof, I.T., crankshaft

3шт.

VTA838

X

Crankshaft with pilot bushing (Before engine no. VAC12422884)

1шт.

VTA869

Crankshaft with pilot bushing (After engine no. VAC12422883) (Not used before 1946)

1шт.

VTA2608

X

Set of crankshaft bearings (Standard)

1шт.

VTA2609

X

Set of crankshaft bearings (.002 undersize)

1шт.

VTA2610

X

Set of crankshaft bearings (.020 undersize)

1шт.

VTA2611

Set of crankshaft bearings (.022 undersize)

1шт.

VTA2612

X

Set of crankshaft bearings (.040 undersize)

1шт.

VTA2613

Set of crankshaft bearings (Semi-finished)

1шт.

G10265

RING, SET

Set of piston rings, perfect circle 2-in-1 chrome, connecting rods

1шт.

VT132

X

SLEEVE - cylinder (3-1/4" bore) (See VTA557), pistons and connecting rods

4шт.

VT331

PISTON - 4 ring (See VTA557), connecting rods

4шт.

VT3363

X

RETAINING RING - piston pin, connectring rods

8шт.

VT3374

X

BOLT - connecting rod, pistons

8шт.

3/8" - 24 nut, pal, pistons and connecting rods

8шт.

VT3375

X

PACKING - cylinder sleeve, pistons and connecting rods

8шт.

VT3386

X

PIN - piston, connecting rods

4шт.

VT3388

X

RING - piston, 1/8" taper face (See VTA319), connecting rods

12шт.

VT3390

X

BEARING - connecting rod (Standard) (See VTA2622), pistons

8шт.

VT33902

X

BEARING - connecting rod (.002 undersize) (See VTA2623), pistons

8шт.

VT339020

X

BEARING - connecting rod (.020 undersize) (See VTA2624), pistons

8шт.

VT339022

BEARING - connecting rod (.022 undersize) (See VTA2625), pistons

8шт.

VT339040

X

BEARING - connecting rod (.040 undersize) (See VTA2626), pistons

8шт.

VT3390SF

BEARING - connecting rod (Semi-finished) (See VTA2627), pistons

8шт.

VT3392

X

BUSHING - piston pin, connecting rods

4шт.

VT4506

X

NUT - connecting rod bolt, 3/8" - 24, pistons

8шт.

VT4538

X

ROD - connecting (Use VTA-854), pistons

1шт.

VT4557

X

RING - piston 1/4" oil ring (See VTA319), connecting rods

4шт.

VTA319

Set of piston rings, (See G10265), connecting rods

1шт.

VTA557

Set of four matched pistons - sleeves, rings, pins, etc., pistons and connecting rods

1шт.

VTA854

X

CONNECTING ROD ASSEMBLY (Includes no bearings), pistons

4шт.

VTA2622

X

Set of connecting rod bearings (Standard), pistons

1шт.

VTA2623

X

Set of connecting rod bearings (.002 undersize), pistons

1шт.

VTA2624

X

Set of connecting rod bearings (.020 undersize), pistons

1шт.

VTA2625

Set of connecting rod bearings (.022 undersize), pistons

1шт.

VTA2626

X

Set of connecting rod bearings (.040 undersize), pistons

1шт.

VTA2627

Set of connecting rod bearings (Semi-finished), pistons

1шт.

X18188

NUT - connecting rod (Engines before no. 4700000) (Use VT4506 and 3/8" - 24 pal nut), pistons

1шт.
