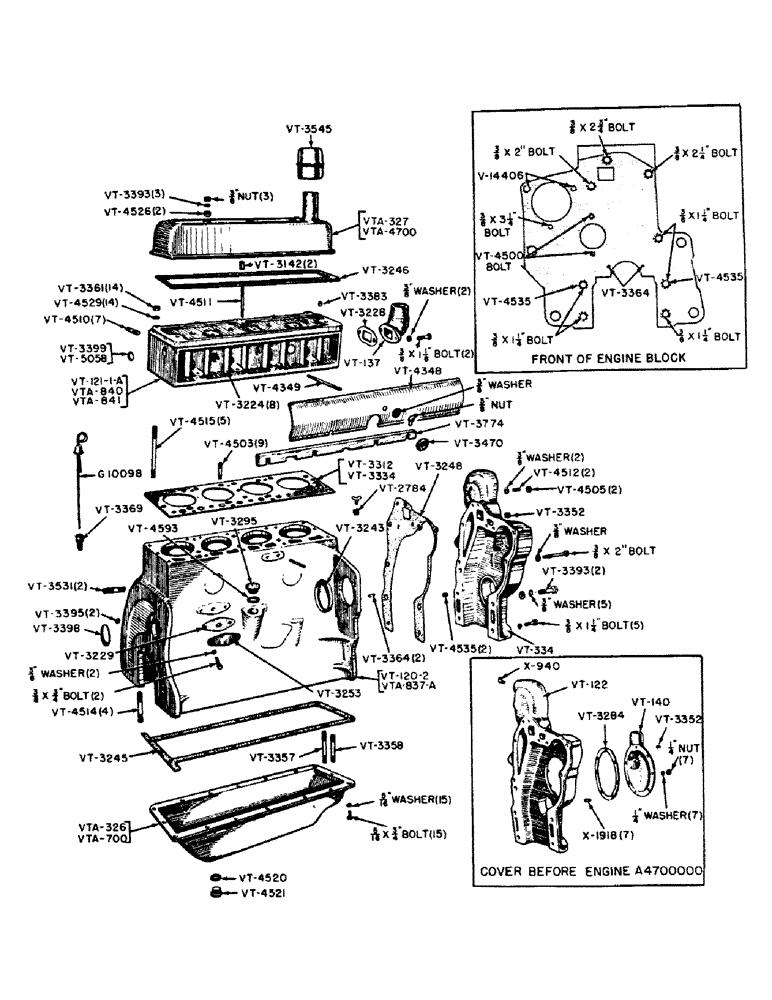

Запчасти Case IH VAI-SERIES (006) - CYLINDER HEAD, CYLINDER BLOCK AND OIL PAN PARTS (02) - ENGINE

V20356

NUT

WASHER - rubber, igntion cable grommet (Tractors after no. 6000403), cylinder head

1шт.

VT1211A

HEAD - cylinder with valve guides and seats (Engines before no. VAB-12908)

1шт.

VT137

ELBOW - water outlet, cylinder head

1шт.

3/8" x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher, cylinder head

2шт.

VT148

HEAD - cylinder (Use VTA-840)

1шт.

VT159

HEAD - cylinder (Use VTA-841)

1шт.

VT3142

X

SPACER - cylinder head cover

2шт.

VT3217

COVER - spark plug (Use VT-4348 and VT-4349), cylinder head

1шт.

VT3224

TUBE - push rod, cylinder head

8шт.

VT3228

X

GASKET - water outlet elbow, cylinder head

1шт.

VT3246

GASKET - valve cover, cylinder head

1шт.

VT3312

X

GASKET - cylinder head (Gasoline engines) (See VT-3334)

1шт.

VT3334

X

GASKET - cylinder head (Low cost fuel engines) (See VT-3312)

1шт.

VT3361

X

NUT - hexagon, 1/2", U.N.F. (Engines after no. VAB-12908), cylinder head

14шт.

VT3383

X

PLUG - fuse, cylinder head

1шт.

VT3393

X

WASHER - 3/4" O.D. x 13/32" I.D. x 1/16", cylinder head

3шт.

VT3399

PLUG - Hubbard 1" diameter, cylinder head

1шт.

VT3470

GROMMET - ignition cables (Tractors before no. 6000404), cylinder head

1шт.

VT3545

X

CAP - oil filler and breather, cylinder head

1шт.

VT3774

HOLDER - spark plug wires (Tractors before no. 6000404), cylinder head

1шт.

VT4348

COVER - spark plug (Tractors before no. 6000404), cylinder head

1шт.

VT4349

STUD - spark plug cover, 3/8" x 3-15/16" (Tractors before no. 6000404), cylinder head

1шт.

3/8" nut, wing, N.C. (Tractors before no. 6000404), cylinder head

1шт.

3/8" washer, plain (Tractors before no. 6000404), cylinder head

1шт.

VT4510

X

STUD - manifold, 3/8" x 1-3/4" (Low cost fuel engines), cylinder head

6шт.

VT4510

X

STUD - manifold, 3/8" x 1-3/4" (Gasoline engines), cylinder head

7шт.

VT4511

STUD - cylinder head cover, 3/8" x 5:

1шт.

VT4526

X

SPACER - upper valve cover studs, cylinder head

2шт.

VT4529

WASHER

- cylinder head studs (Engines after no. VAB-12908)

14шт.

VT4539

X

SPACER - cylinder head (Use 2 - VT-3142)

1шт.

VT4591

X

STUD - manifold, 3/8" x 4-5/8" (Engines before no. A4700000), cylinder head

1шт.

VT5058

PLUG - Hubbard, 1-1/8" diameter, cylinder head

1шт.

VTA327

COVER - valve, assembly (Use VTA-4700), cylinder head

1шт.

VTA840

HEAD - cylinder with valve guides and seats, gasoline

1шт.

VTA841

HEAD - cylinder with valve guides and seats, low cost fuel

1шт.

VTA4700

COVER - valve, assembly, cylinder head

1шт.

3/8" nut, hexagon, U.N.C., cylinder head

3шт.

3XUB110

WASHER - cylinder head studs (Engines before no. VAB-12908)

14шт.

X18237

NUT - hexagon, 3/8" U.N.F. (Engines before no. VAB-12908), cylinder head

14шт.

G10098

X

ROD - oil gauge, cylinder block

1шт.

VT1202

BLOCK - cylinder, engines before no. VAB-12908, use VTA-837-A, VTA-840 or VTA-841

1шт.

VT328A

BLOCK - cylinder (Use VTA-837-A)

1шт.

VT2784

X

COCK - drain, cylinder block

1шт.

VT3229

X

GASKET - oil filter pad, cylinder block

1шт.

VT3243

X

COVER - magneto drive hole, cylinder block

1шт.

VT3253

COVER - oil filter pad, cylinder block

1шт.

3/8" x 3/4" bolt, hexagon head, U.N.C. with lockwasher, cylinder block

2шт.

VT3295

COVER - distributor drive hole, cylinder block

1шт.

VT3357

STUD - front main bearing, 1/2" x 4", cylinder block

1шт.

VT3358

STUD - front main bearing, 1/2" x 3-11/16", cylinder block

1шт.

VT3364

X

PIN - crankshaft thrust washer, cylinder block

2шт.

VT3369

SUPPORT - oil gage rod, cylinder block

1шт.

VT3395

X

PLUG - pipe, 1/4" socket head, cylinder block

2шт.

VT3398

X

PLUG - hubbard, 2-1/8" diameter, cylinder block

1шт.

VT3531

X

STUD - torque tube to block, 5/8" x 3", cylinder block

2шт.

VT4503

X

STUD - cylinder head, 1/2" x 2", cylinder block

9шт.

VT4508

STUD - generator bracket, 3/8" x 1-1/4", cylinder block

2шт.

VT4514

STUD - center and rear bearing caps, 1/2" x 3-1/8", cylinder block

4шт.

VT4515

X

STUD - cylinder head, 1/2" x 5-13/16"

5шт.

VT4543

X

STUD - governor rod guide (Use 5/16 x 1" bolt, hexagon head, U.N.C.), cylinder block

1шт.

VT4593

X

SEAL - "O" ring, distributor, cylinder block

1шт.

VTA333

X

ROD - oil gage (Use G-10098), cylinder block

1шт.

VTA837A

BLOCK - cylinder

1шт.

1/8" plug, pipe, square head, cylinder block

1шт.

X19908

STUD - cylinder head, 3/8" x 2-1/8" (Engines before no. VAB-12908), cylinder block

4шт.

X19951

STUD - bearing caps, 1/2" x 3-1/4" (Engines before no. VAB-12908), cylinder block

1шт.

X19954

STUD - bearing caps, 3/8" x 5-3/4" (Engines before no. VAB-12908), cylinder block

5шт.

X19981

STUD - cylinder head, 3/8" x 1-13/16" (Engines before no. VAB-12908), cylinder block

5шт.

X19984

STUD - cylinder head, 1/2" x 2-1/2" (Engines after no. VAB-12908 before no. A4700000), cylinder block

4шт.

VT3245

X

GASKET - oil pan

1шт.

VT4520

X

GASKET - drain plug, oil pan

1шт.

VT4521

X

PLUG - drain, oil pan

1шт.

VTA326

OIL PAN (Gasoline engines)

1шт.

VTA700

OIL PAN (Low cost fuel engines)

1шт.

1/4" plug, pipe, square head (Brass), oil pan

1шт.

5/16" x 3/4" bolt, hexagon head, U.N.C. with lockwasher, oil pan

15шт.

VTA814

X

Set of engine gaskets (Engines before no. A4700000) (Consists of 1 VT-3229, 1 VT-3245, 1 VT-3246, 1 VT-3247, 1 VT-3248, 1 VT-3312, 4 VT-3379, 2 VT-3391, 1 VT-3394, 1 VT-4520 and 1 VT-4527)

1шт.

VTA871

X

ENGINE GASKET SETS - gasoline engines (Consists of: 1 VT-3228, 1 VT-3246, 1 VT-3394 and 1 VT-3312)

1шт.

VTA872

ENGINE GASKET SET - low cost fuel engines (Consists of 1 VT-3228, 1 VT-3246, 1 VT-3394, and 1 VT-3334)

1шт.

VTA1113

X

Set of engine gaskets (Engines after no. A4700000) (Consists of 1 VT-3245, 1 VT-3246, 1 VT-3247, 1 VT-3248, 1 VT-3312, 4 VT-3379, 2 VT-3391, 1 VT-3394, 1 VT-4520, and 1 VT-4527)

1шт.

VT122

COVER - timing gear (Engines before no. A4700000)

1шт.

VT140

COVER - governor inspection (Engines before no. A4700000), timing gear

1шт.

VT334

COVER - timing gear (Engines after no. A4700000)

1шт.

3/8" x 1/4" bolt, hexagon head, U.N.C. with lockwasher, timing gear cover

5шт.

3/8" x 2" bolt, hexagon head, U.N.C. with lockwasher, timing gear cover

1шт.

3/8" x 2-1/4" bolt, hexagon head, U.N.C. with lockwasher, timing gear cover

1шт.

3/8" x 3-1/4" bolt, hexagon head, U.N.C. with lockwasher, timing gear cover

3шт.

VT3248

X

GASKET - gear cover, timing

1шт.

VT3284

X

GASKET - inspection cover (Engines before no. A4700000), timing gear

1шт.

VT3352

X

PLUG - pipe, 1/8" slotted head, timing gear cover

1шт.

VT3393

X

WASHER - 3/4" O.D. x 13/32" I.D. x 1/16", timing gear cover

2шт.

VT4505

NUT - hexagon, 3/8", timing gear cover

2шт.

VT4512

X

STUD - water pump, 3/8" x 1", timing gear cover

2шт.

3/8" washer, Shakeproof, I.T., timing gear cover

2шт.

VT4535

X

RING - dowel, timing gear cover

2шт.

X940

FITTING - grease (Engines before no. A4700000), timing gear cover

1шт.

X1918

STUD - governor inspection hole (Engines before no. A4700000), timing gear cover

7шт.

1/4" nut, hexagon with lockwasher (Engines before no. A4700000), timing gear cover

7шт.
