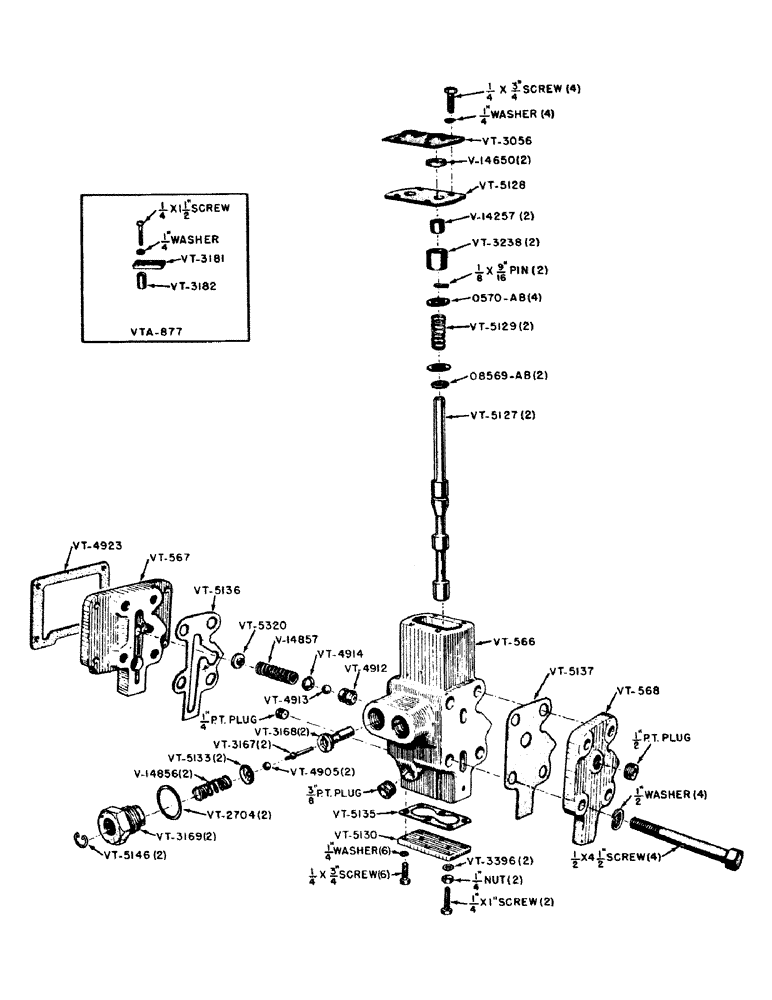

Запчасти Case IH VAC13-SERIES (130) - VTA1151 AND VTA1151A DOUBLE CONTROL VALVE (08) - HYDRAULICS

O570AB

WASHER

4шт.

O8569AB

X

"O" RING

2шт.

O8635AB

X

BALL - check valve, 1/4" (Used with VT5131)

2шт.

V14257

X

SPACERS

2шт.

V14650

SEAL - dust, felt

2шт.

V14856

HANDLE

SPRING - check valve (Used with VT3169)

2шт.

V14857

HANDLE

SPRING - relief valve

1шт.

VT566

CONTROL BODY

1шт.

NSS

NOT SOLD SEPARAT

1/4" P.T. plug - pipe, countersunk

1шт.

NSS

NOT SOLD SEPARAT

3/8" P.T. plug - pipe, countersunk

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 4-1/2" screw - cap, hexagon head, U.N.C. with lockwasher

4шт.

VT567

ADAPTER

1шт.

VT568

COVER - end

1шт.

NSS

NOT SOLD SEPARAT

1/2" P.T. plug - pipe, countersunk pattern

1шт.

VT2704

GASKET

2шт.

VT3056

SHIELD - dust seal

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT3167

ROD - check valve

2шт.

VT3168

VALVE - check

2шт.

VT3169

PLUG - check valve spring

2шт.

VT3181

STOP - valve (See VTA877)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" screw - machine, round head with lockwasher

1шт.

VT3182

BUSHING - valve stop (See VTA877)

1шт.

VT3238

X

SPACER

2шт.

VT3396

X

GASKET

2шт.

VT4905

X

BALL - check valve, 5/16" diameter

2шт.

VT4909

X

SPRING - check valve (Use with VT5131)

2шт.

VT4910

PLUG - check valve spring (Use with VT5131)

2шт.

VT4912

SEAT - relief valve

1шт.

VT4913

X

BALL - 3/8" diameter

1шт.

VT4914

X

WASHER - relief valve

1шт.

VT4923

X

GASKET - control housing

1шт.

VT5127

VALVE - lift

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 9/16" pin - groove, type #5

2шт.

VT5128

COVER - top

1шт.

VT5129

X

SPRING

2шт.

VT5130

COVER - bottom

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

6шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" screw - cap, hex. head, U.N.C. with hex. nut

2шт.

VT5131

VALVE - check (Use VTA874)

1шт.

VT5132

ROD - check valve (Use VTA874)

1шт.

VT5133

RETAINER - spring

2шт.

VT5135

GASKET

1шт.

VT5136

GASKET - inner

1шт.

VT5137

GASKET - outer

1шт.

VT5146

RING - snap

2шт.

VT5320

SPACER - spring pressure

1шт.

VTA874

DOUBLE CONTROL CHECK VALVE (Repair kit) (Consists of: (2) V14856, (2) VT2704, (2) VT3167, (2) VT3168, (2) VT3169, and (2) VT4905

1шт.

VTA877

DOUBLE CONTROL LOCKOUT ATTACHMENT(Complete)

1шт.

VTA1151

HYDRAULIC DOUBLE CONTROL VALVE (Complete)

1шт.

VTA1151A

HYDRAULIC DOUBLE CONTROL VALVE (Complete) (For use with Eagle Hitch)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with lockwasher

4шт.
