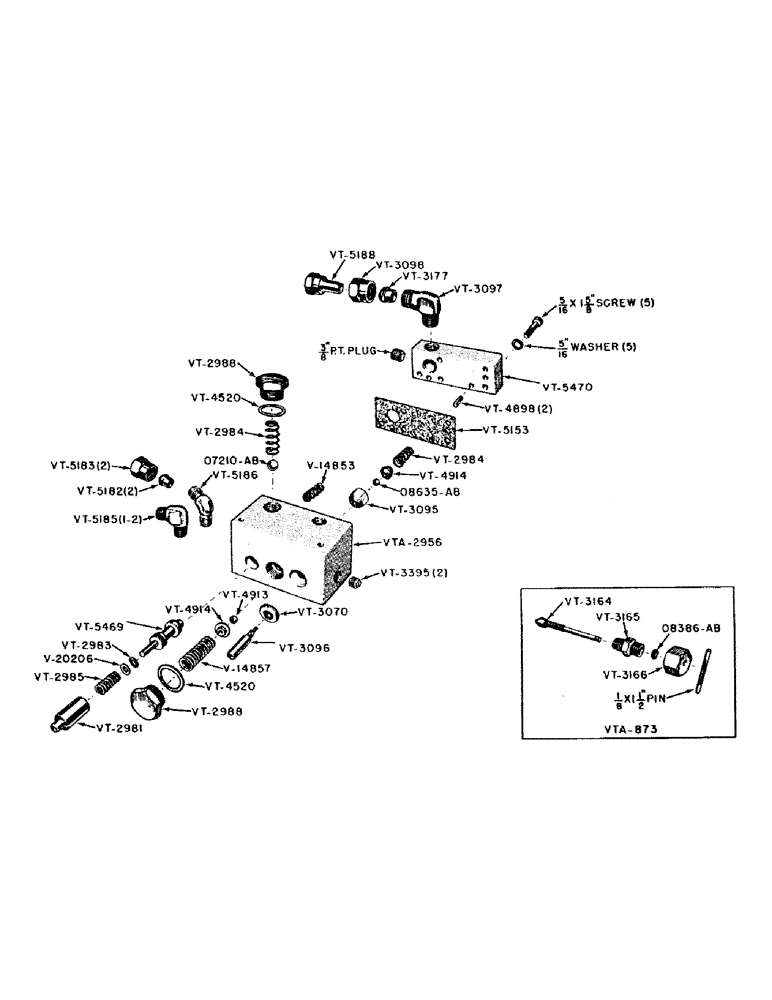

Запчасти Case IH VAC13-SERIES (128) - VTA2852 DEPTH CONTROL VALVE, VAH, VA, VAO, VAH (08) - HYDRAULICS

O7210AB

X

BALL - steel, 1/2" diameter

1шт.

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - restrictor seal (See VTA873)

1шт.

O8635AB

X

BALL - steel, 1/4" diameter

1шт.

V14853

X

SPRING - pressure plunger

1шт.

V14857

HANDLE

SPRING - relief plug

1шт.

NSS

NOT SOLD SEPARAT

#12 washer - plain, S.A.E. standard

1шт.

V20206

WASHER - spacer

1-2шт.

VT2981

PLUNGER - depth control

1шт.

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - depth control valve (replaced VT2983)

1шт.

VT2984

X

SPRING - depth control

2шт.

VT2985

X

SPRING - depth control

1шт.

VT2988

PLUG - pressure relief

2шт.

A30396

OIL SEAL

plunger (replaced VT3070)

1шт.

VT3095

X

VALVE - release

1шт.

VT3096

PLUNGER - release valve

1шт.

VT3097

ELBOW - coupling

1шт.

VT3098

NUT - coupling

1шт.

VT3164

VALVE - needle (See VTA873)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/2" pin - groove, type #5

1шт.

VT3165

BODY - restrictor (See VTA873)

1шт.

VT3166

CAP - restrictor (See VTA873)

1шт.

VT3177

X

SLEEVE - coupling

1шт.

VT3395

X

PLUG - pipe 1/4"

2шт.

A30059

GASKET

- relief plug (replaced VT4520)

2шт.

VT4898

PIN - dowel

2шт.

VT4913

X

BALL - relief plug

1шт.

VT4914

X

WASHER - relief plug

2шт.

VT5153

X

GASKET

1шт.

VT5182

SLEEVE - coupling

2шт.

VT5183

NUT - coupling

2шт.

VT5185

BODY - 90 degree elbow coupling (VAC-11, VAC-12, VAC-13) (See VT5185)

2шт.

VT5186

BODY - 45 degree elbow coupling (VAH) (VAC-14 tractors) (See VT-5185) (VAC, VAH), Serial Range: -5370500

1шт.

VT5188

EXTENSION - adapter unit (Used with double control valve)

1шт.

VT5469

VALVE - depth control

1шт.

VT5470

CAP - depth control

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-5/8" screw - cap, hexagon head, U.N.C. with lockwasher

5шт.

NSS

NOT SOLD SEPARAT

3/8" P.T. plug - pipe, countersunk head

1шт.

VTA868

KIT - depth control release valve (Consists of: (1) O8635AB, (1) VT3095, (1) VT3096, and (1) VT4914.

1шт.

VTA873

HYDRAULIC OIL FLOW RESTRICTOR ATTACHMENT (Consists of: (1) O8386AB, (1) VT3164, (1) VT3165, and (1) VT3166

1шт.

VTA2852

DEPTH CONTROL VALVE ASSENBLY (Complete)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3-1/4" screw - cap, hex. head, U.N.C with lockwasher

3шт.

VTA2956

DEPTH CONTROL BODY AND SLEEVE

1шт.
