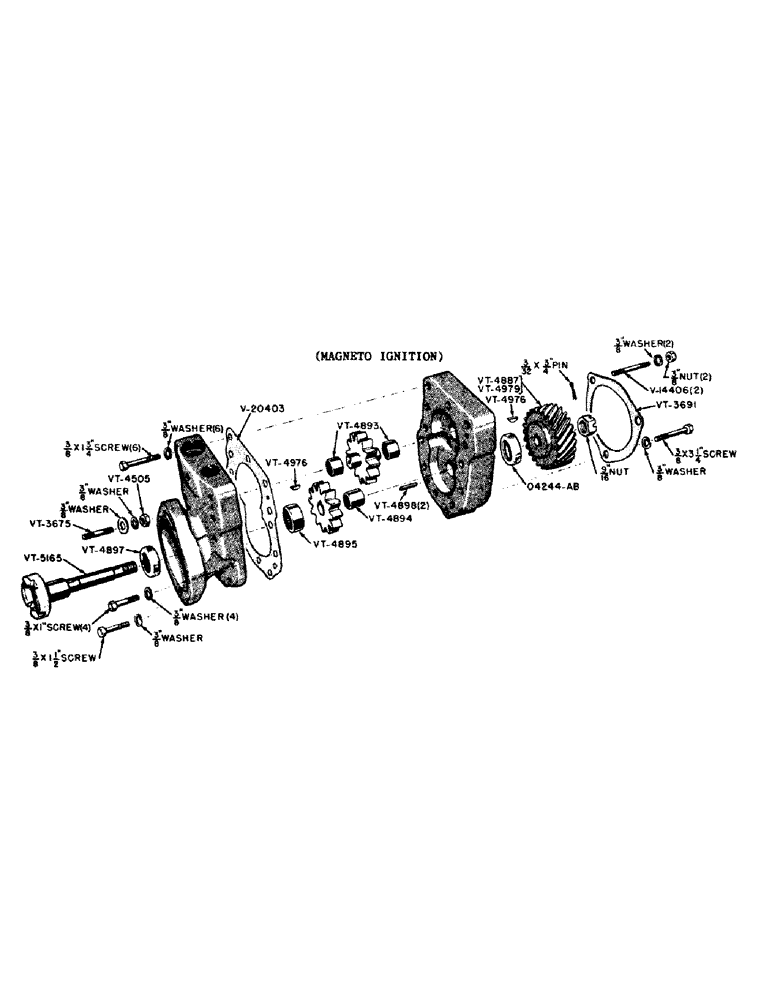

Запчасти Case IH VAC13-SERIES (127) - VTA2973 HYDRAULIC PUMP, MAGNETO IGNITION (08) - HYDRAULICS

O4244AB

OIL SEAL - front

1шт.

V14406

STUD - 3/8" x 5-1/4"

2шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C. with lockwasher

2шт.

V20403

X

GASKET - body and cover

1шт.

VT3675

X

STUD - 3/8" x 1-1/2"

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - Shakeproof, I.T.

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - plain, S.A.E. standard

1шт.

VT3691

X

GASKET - mounting

1шт.

VT4505

NUT - hexagon, U.N.C.

1шт.

VT4887

GEAR - drive, 1-1/16" wide

1шт.

VT4893

X

BEARING - needle (Torrington #B108)

2шт.

VT4894

X

BEARING - needle (Torrington #B1012)

1шт.

VT4895

X

BEARING - needle (Torrington #B148)

1шт.

VT4897

X

OIL SEAL - rear

1шт.

VT4898

PIN - dowel

2шт.

VT4976

X

KEY - Woodruff

2шт.

VT4979

GEAR - drive, 7/8" wide

1шт.

VT5165

SHAFT - drive

1шт.

NSS

NOT SOLD SEPARAT

9/16" x 18 U.N.F. nut - hexagon, slotted light series

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter

1шт.

VTA2973

HYDRAULIC PUMP COMPLETE WITH DRIVE GEAR (Engines after #A4700000) (1-1/16" wide drive gear)

1шт.

VTA2975

HYDRAULIC PUMP COMPLETE WITH DRIVE GEAR (Engines before #A4700000) (7/8" wide drive gear)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher

6шт.

NSS

NOT SOLD SEPARAT

3/8" x 3-1/2" screw - cap, hex. head, U.N.C. with lockwasher

1шт.
