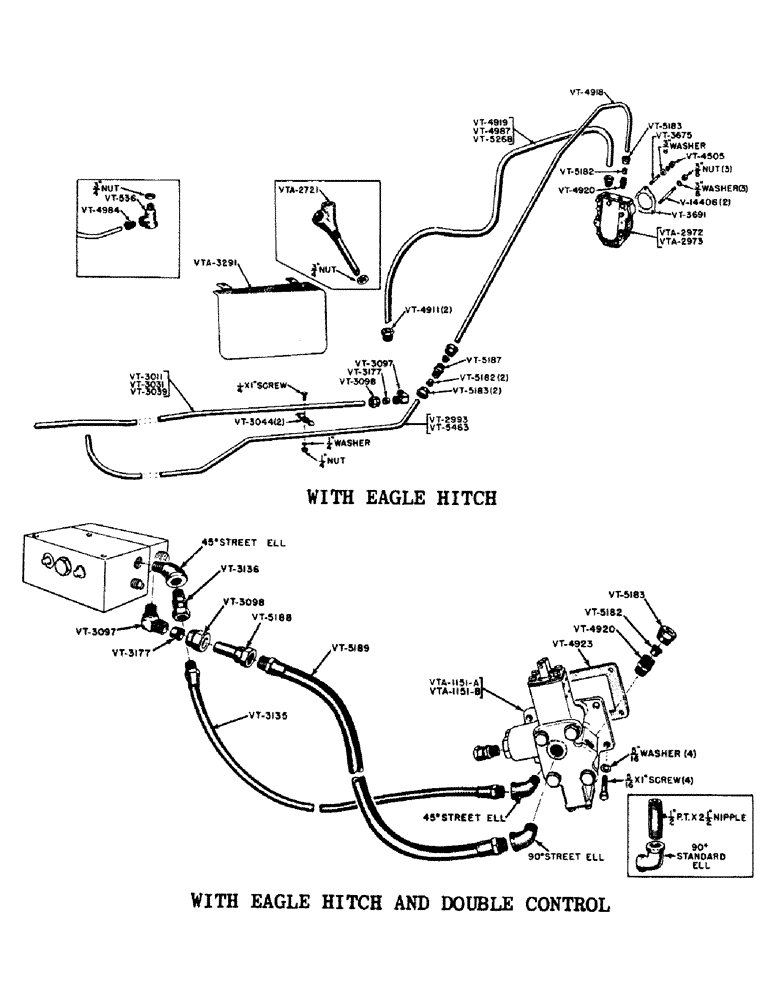

Запчасти Case IH VAC13-SERIES (124) - HYDRAULIC PUMP AND LINES, VAC, VA, VAO, VAH (08) - HYDRAULICS

V14406

STUD - 3/8" x 5-1/4"

2шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C. with lockwasher

2шт.

VT536

FITTING - oil return (VAH), Serial Range: -5370500

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - conduit lock (VAH)

1шт.

VT3011

LINE - return (Control to torque tube) (See VT3031 and VT3039) (VAC, VA, VAO)

1шт.

VT3031

LINE - return (Control to torque tube) (See VT3011 and VT3039) (VAH), Serial Range: -5370500

1шт.

VT3039

LINE - return (Control to torque tube) (See VT3011 and VT3031) (VAH), Start Serial: 5370499

1шт.

VT3044

CLAMP - pressure and return line

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" screw - machine, round head, U.N.C. w/sq. nut and lockwasher

1шт.

VT3097

ELBOW - coupling

1шт.

VT3098

NUT - coupling

1шт.

VT3135

HOSE - hydraulic pressure (Eagle Hitch with double control)

1шт.

VT3136

UNION - adapter, hydraulic hose (Eagle Hitch with double control)

1шт.

VT3177

X

SLEEVE - coupling

1шт.

VT3470

GROMMET - pressure and return line (VAH), Serial Range: -5370500

1шт.

VT3675

X

STUD - 3/8" x 1-1/2" (Magneto ignition only)

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - Shakeproof, I.T.

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - plain, S.A.E. standard

1шт.

VT3691

X

GASKET - pump mounting

1шт.

VT2993

LINE - pressure, extension (To depth control) (See VT5463 for VAC-14) (replaced VT3993)

1шт.

VT4505

NUT - hexagon, U.N.C. (For VT3675) (Magneto ignition only)

1шт.

VT4911

NUT - tube

2шт.

VT4918

LINE - pressure (Pump to extension or double control valve)

1шт.

VT4919

LINE - intake (VAH) (See VT4987 and VT5268), Start Serial: 5370499

1шт.

VT4919

LINE - intake (VAC) (See VT4987 and VT5268), Start Serial: 5570000

1шт.

VT4920

BODY - connector

2шт.

VT4923

X

GASKET - control valve

1шт.

VT4984

NUT - tube return line (VAH), Serial Range: -5370500

1шт.

VT4987

LINE - intake (See VT4919 and VT5268) (VAH), Serial Range: -5370500

1шт.

VT5182

SLEEVE - coupling

4шт.

VT5183

NUT - coupling

4шт.

VT5187

BODY - coupling

1шт.

VT5188

EXTENSION adapter (Eagle hitch with double control)

1шт.

VT5189

HOSE - return (Depth control to double control)

1шт.

VT5268

LINE - intake (VAC), Serial Range: -5570000

1шт.

VT5463

LINE - pressure, extension (To depth control) (VAC-14 only) (See VT2993) (VAC)

1шт.

VTA1151A

CONTROL VALVE - double acting (See VTA1151B for VAC), Start Serial: 5570000

1шт.

VTA1151B

CONTROL VALVE - double acting (VAC) (See VTA1151A) (VAC), Start Serial: 5570000

1шт.

NSS

NOT SOLD SEPARAT

3/8" P.T. x 45 degree fitting - street ell

2шт.

NSS

NOT SOLD SEPARAT

1/2" P.T. x 90 degree fitting - street ell

1шт.

NSS

NOT SOLD SEPARAT

1/2" P.T. x 90 degree fitting - pipe, standard ell (VAC-14) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

1/2" P.T. x 2-1/2" nipple - pipe (VAC-14) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hexagon head, U.N.C. with lockwasher

4шт.

VTA2721

FITTING ASSEMBLY - inlet (VAH), Serial Range: -5370500

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut conduit lock (VAH)

1шт.

VTA2972

PUMP ASSEMBLY (Distributor ignition)

1шт.

VTA2973

PUMP ASSEMBLY (Magneto ignition)

1шт.

VTA3291

GUARD ASSEMBLY - hydraulic line (VAC-14 only) (VAC)

1шт.
