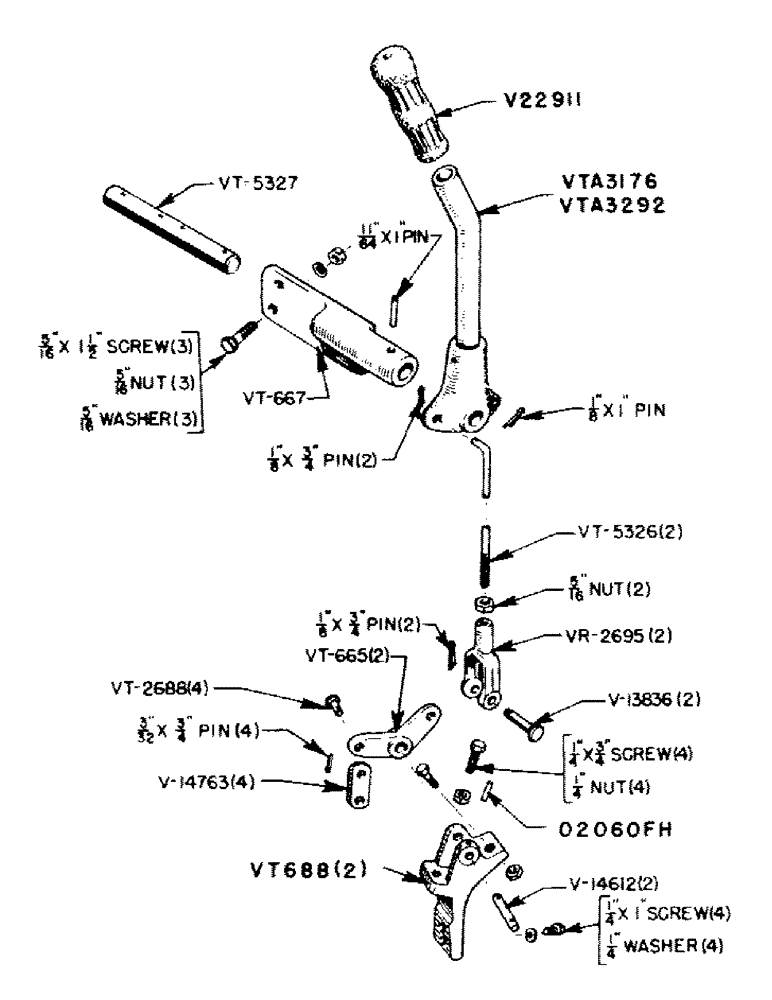

Запчасти Case IH VAC13-SERIES (123) - LEVER CONTROLS FOR DOUBLE CONTROL VAC TRACTORS (08) - HYDRAULICS

O2060FH

X

ROLLPIN- for V14612 pin

2шт.

V13836

PIN - yoke

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

2шт.

V14612

CAP COVER

PIN - pivot, bell crank

2шт.

V14763

LINK - connecting

2шт.

V22911

HOSE

GRIP - control lever

1шт.

VR2695

X

END - yoke

2шт.

VT664

BASE - control lever (Use VTA3176 or VTA32927)

1шт.

NSS

NOT SOLD SEPARAT

11/64" x 1" pin - groove, type #2

1шт.

VT665

BELL CRANK

2шт.

VT666

BRACKET - mounting, bell crank (Use VT665, VT688, and 1/4" x 1-1/4" screw, cap, hex. head, U.N.C.)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - cap, hex. head, U.N.C. with hexagon jam nut

4шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT667

BRACKET - mounting, control lever

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/2" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher

3шт.

NSS

NOT SOLD SEPARAT

11/64" x 1" pin - groove, type #2

1шт.

VT688

BRACKET - mounting, bell crank

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - cap, hex. head, U.N.C. with hex. jam nut

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" screw - cap, hex. jam nut

2шт.

VT2688

PIN - drilled

4шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" pin - cotter

4шт.

VT5326

ROD - control

2шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon jam, U.N.F., S.F. light series

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

2шт.

VT5327

SHAFT - pivot, control lever

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" pin - cotter

1шт.

VTA3176

LEVER - control (VAC-11, 12, and 13) (See VTA3292)

1шт.

VTA3292

LEVER - control (VAC-14) (See VTA3176)

1шт.
