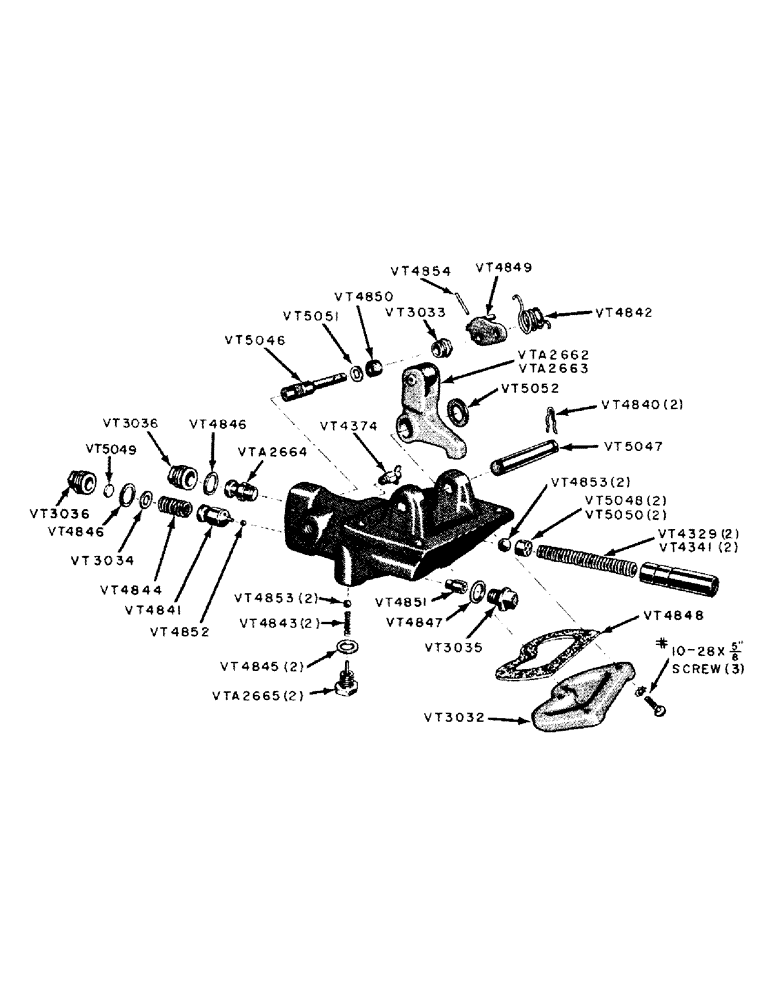

Запчасти Case IH VAC13-SERIES (115) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

VT3032

COVER - pump housing

1шт.

VT3033

NUT - packing

1шт.

VT3034

PILOT - spring seat plug

1шт.

VT3035

PLUG - relief, valve housing

1шт.

VT3036

PLUG - spring seat

2шт.

VT4329

SPRING - piston (Mushroom piston)

2шт.

VT4341

SPRING - piston (Straight piston)

2шт.

VT4374

VALVE - bleeder

1шт.

VT4840

PIN - lever retaining

2шт.

VT4841

VALVE - relief

1шт.

VT4842

SPRING - control lever

1шт.

VT4843

SPRING

- ball valve

2шт.

VT4844

SPRING

- relief valve

1шт.

VT4845

X

GASKET - spring seal

2шт.

VT4846

X

GASKET - spring seal plug

2шт.

VT4847

GASKET - relief valve housing plug

1шт.

VT4848

X

GASKET - pump housing cover

1шт.

NSS

NOT SOLD SEPARAT

#10-24 x 5/8" screw - machine round head

3шт.

NSS

NOT SOLD SEPARAT

#10 washer - Shakeproof, E.T.

3шт.

VT4849

LEVER - control

1шт.

VT4850

PACKING - control rod

1шт.

VT4851

X

SEAT - releif valve

1шт.

VT4852

X

BALL - check valve, 5/32" diameter

1шт.

VT4853

X

BALL - sliding valve and piston valve, 9/16" diameter

4шт.

VT4854

PIN - groove, control lever

1шт.

VT5046

SHAFT - control

1шт.

VT5047

SHAFT - rocker arm

1шт.

VT5048

CAGE - ball, check (Pumps without inserts)

2шт.

VT5049

SPACER - spring

1шт.

VT5050

CAGE - ball, check (Pumps with inserts - coded with "X" on date)

2шт.

VT5051

WASHER - packing nut

3шт.

VT5052

WASHER - spacer 15/16" O.D. x 9/16" I.D. x 1/16" thick

1шт.

VTA2662

ROCKER ARM ASSEMBLY - right hand

1шт.

VTA2663

ROCKER ARM ASSEMBLY - left-hand

1шт.

VTA2664

CONTROL PISTON - oil return

1шт.

VTA2665

SEAT - spring

2шт.
