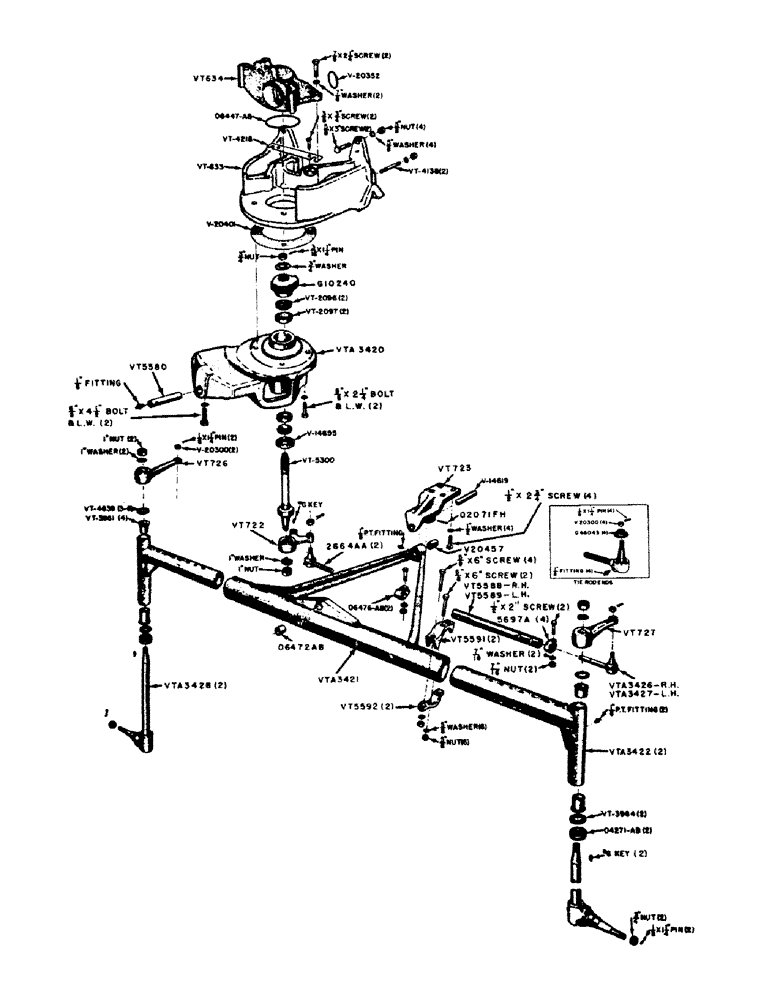

Запчасти Case IH VAC13-SERIES (102) - VAH ADJUSTABLE FRONT AXLE, TRACTOR #5570000 AND AFTER (06) - POWER TRAIN

G10240

WORM

WHEEL - steering, Start Serial: 5650617

1шт.

G46043

COVER

- dust, tie rod and drag link ends

4шт.

5697A

X

CLAMP - tie rod and tube

4шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" N.C. hex. hd. bolt w/hex. nut and lockwasher

4шт.

2664AA

X

END - tie rod

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

2шт.

O4271AB

X

BEARING - thrust, wheel spindle (Timken #T-139)

2шт.

O6472AB

X

BUSHING - front pivot, center tube

1шт.

O6476AB

X

CLAMP - inner, drag link (Includes 3/8" x 1-3/4" N.C. hex hd.

1шт.

O8447AB

X

"O" RING - steering gear housing to support (5-1/2" dia.)

1шт.

O2071FH

X

ROLL PIN (1/4" x 1-3/4") V14619 pivot pin

1шт.

V14619

PIN - pivot (Use with VT723 pivot brakcet)

1шт.

V14655

OIL SEAL - steering gear shaft

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod ends

4шт.

V20352

SCREW

"O" RING - steering gear housing (2-3/8" dia.)

1шт.

V20401

GASKET - pivot support to VT633 support

1шт.

V20457

X

BUSHING - pivot, radius rod

2шт.

VT633

SUPPORT - front axle and radiator

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" N.C. hex. hd. bolt w/hex. nut and lockwasher

2шт.

VT634

HOUSING - steering gear

1шт.

NSS

NOT SOLD SEPARAT

7/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

VT721

SUPPORT - front pivot (Use VTA3420)

1шт.

VT722

ARM - center steering

1шт.

VT723

BRACKET - pivot, radius rod

1шт.

VT726

ARM - steering, R.H.

1шт.

VT727

ARM - steering, L.H.

1шт.

VT2096

X

CONE - bearing, steering gear shaft (Timken #14137-A)

2шт.

VT2097

X

CUP - bearing, steering gear shaft (Timken #14276)

2шт.

VT3961

X

BUSHING - wheel spindle

4шт.

VT3964

X

WASHER - thrust, wheel spindle

2шт.

VT4138

X

STUD - VT633 support

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex nut and lockwasher

2шт.

VT4218

BRACKET - radiator mounting

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" flat hd. mach. screw

2шт.

VT4839

X

SHIM - R.H. and L.H. steering arm

3-6шт.

VT5300

SHAFT - steering gear

1шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. slotted hex. nut and plain washer

1шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex. jam nut and E.T. Shakeproof lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

#G Woodruff Key

1шт.

VT5580

PIN - pivot, center tube

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

VT5588

TUBE - tie rod, R.H.

1шт.

VT5589

TUBE - tie rod, L.H.

1шт.

VT5591

CLAMP - upper, center tube and extension

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 4" N.C. hex. hd. bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 6" N.F. hex. hd. bolt w/hex nut and lockwasher

2шт.

VT592

CLAMP - lower, center tube and extension

2шт.

VTA3420

SUPPORT - front pivot (Includes 2-VT2096 bearing cups)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

VTA3421

RADIUS ROD AND CENTER TUBE ASSEMBLY

1шт.

VTA3422

TUBE ASSEMBLY - outer (Includes 2-VT3961 bushing)

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

VTA3426

TIE ROD - notched, R.H.

1шт.

VTA3427

TIE ROD - notched, L.H.

1шт.

VTA3428

KNUCKLE - steering wheel

2шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex jam nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

#G Woodruff key

2шт.
