Запчасти Case IH VAC13-SERIES (100) - VAH ADJUSTABLE FRONT AXLE, BEFORE TRACTOR #5570000 (06) - POWER TRAIN

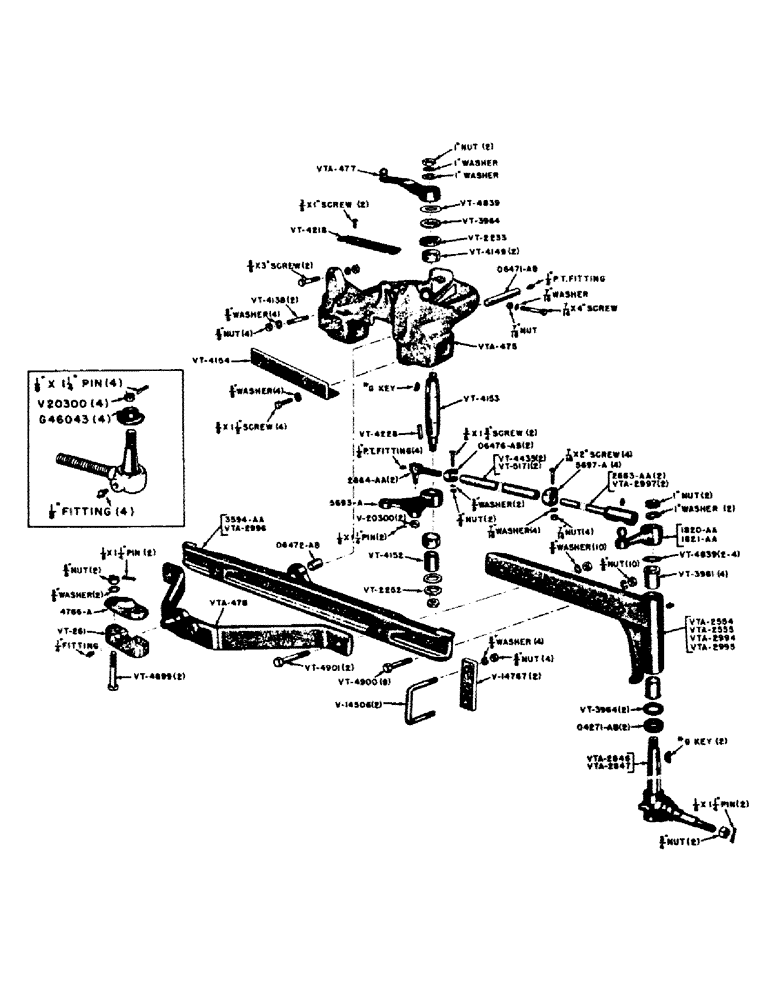

Схема запчастей Case IH VAC13-SERIES - (100) - VAH ADJUSTABLE FRONT AXLE, BEFORE TRACTOR #5570000 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G46043

COVER

- dust, tie rod end

1шт.

4766A

CAP - ball socket

1шт.

5690A

AXLE - center section (Use 3594AA)

1шт.

5693A

ARM - steering, lower

1шт.

5697A

X

CLAMP - tie rod

4шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

4шт.

1820AA

ARM - spindle and ball assembly, left- hand

1шт.

1821AA

ARM - spindle and ball assembly, right-hand

1шт.

2663AA

ROD - tie, notched (Standard tread only) (See VTA2997)

2шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

2664AA

X

END - tie rod

2шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

2шт.

3594AA

AXLE - center section, with bushing (Standard tread only) (See VTA2996)

1шт.

O4271AB

X

BEARING - thrust (Timken #T139)

2шт.

O6471AB1

PIN - pivot

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 4" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

1шт.

O6472AB

X

BUSHING - axle pivot pin

1шт.

O6476AB

X

CLAMP - tie rod end

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.

V14506

"U" bolt

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F. with lockwasher

4шт.

V14767

LEVER

STRAP - tie

2шт.

V20300

OPERATOR MANUAL

NUT - hexagon

2шт.

VT260

SUPPORT - front axle (Use VTA475)

1шт.

VT261

SOCKET - ball

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting - grease (Alemite #1743)

1шт.

VT296

AXLE - outer section, right-hand (Use VTA2554)

1шт.

VT297

AXLE - outer section, left-hand (Use VTA2555)

1шт.

VT616

AXLE - outer section, right-hand (Use VTA2994)

1шт.

VT617

AXLE - outer section, left- hand (Use VTA2995)

1шт.

VT618

AXLE - center section (Use VTA2996)

1шт.

VT2233

X

OIL SEAL - steering spindle arm

1шт.

VT2252

WASHER - lock, steering spindle arm

1шт.

VT3961

X

BUSHING - spindle

4шт.

VT3964

X

WASHER - thrust

3шт.

VT4138

X

STUD - 5/8" x 2-7/8"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F. with lockwasher

2шт.

VT4149

BUSHING - steering spindle arm

2шт.

VT4152

SLIP COLLAR - steering spindle arm shaft

1шт.

VT4153

SHAFT - steering spindle arm

1шт.

NSS

NOT SOLD SEPARAT

#G key - Woodruff

1шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon jam, U.N.F.

2шт.

NSS

NOT SOLD SEPARAT

1" washer - plain, S.A.E. standard

1шт.

NSS

NOT SOLD SEPARAT

1" washer - Shakeproof, E.T. (#1136)

1шт.

VT4154

SUPPORT - ball socket

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT4218

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - machine, countersunk head, U.N.C.

2шт.

VT4228

X

KEY - steering spindle

1шт.

VT4435

TUBE - tie rod (Standard tread only) (See VT5171)

2шт.

VT4839

X

SHIM - steering spindle arm shaft (.010)

1шт.

VT4899

BOLT - ball socket, 5/8" x 2-1/4", U.N.F.

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F. slotted with lockwasher

2шт.

VT4900

BOLT - front axle, 5/8" x 2-1/4", U.N.F.

8шт.

VT4901

BOLT - front axle, 5/8" x 4", U.N.F.

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F. with lockwasher

10шт.

VT5171

TUBE - tie rod (Narrow tread only) (See VT4435)

2шт.

VTA475

SUPPORT - front

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting - grease, drive (Lincoln #5029)

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting - grease, 67-1/2 degree drive (Lincoln #5318)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.

VTA477

ARM - steering, upper

1шт.

VTA478

RADIUS ROD ASSEMBLY

1шт.

VTA2552

X

KNUCKLE - steering, right-hand (Use VTA2846 and V13801)

1шт.

VTA2553

X

KNUCKLE - steering, left-hand (Use VTA2847 and V13801)

1шт.

VTA2554

AXLE - outer section, right-hand (Standard tread only) (See VTA2994)

1шт.

VTA2555

AXLE - outer section, left-hand (Standard tread only) (See VTA2995)

1шт.

VTA2846

KNUCKLE - steering, right-hand

1шт.

VTA2847

KNUCKLE - steering, left-hand

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

#G key - Woodruff

2шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F., S.F. light thick slotted

2шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon, U.N.F., S.F. light series jam with lockwasher

2шт.

VTA2994

AXLE - outer section, right-hand (Narrow tread only) (See VTA2554)

1шт.

VTA2995

AXLE - outer section, left-hand (Narrow tread only) (See VTA2555)

1шт.

VTA2996

AXLE - outer section

1шт.

VTA2997

ROD - tie, notched (Narrow tread only) (See 2663AA)

2шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

Выбрано товаров: 81
