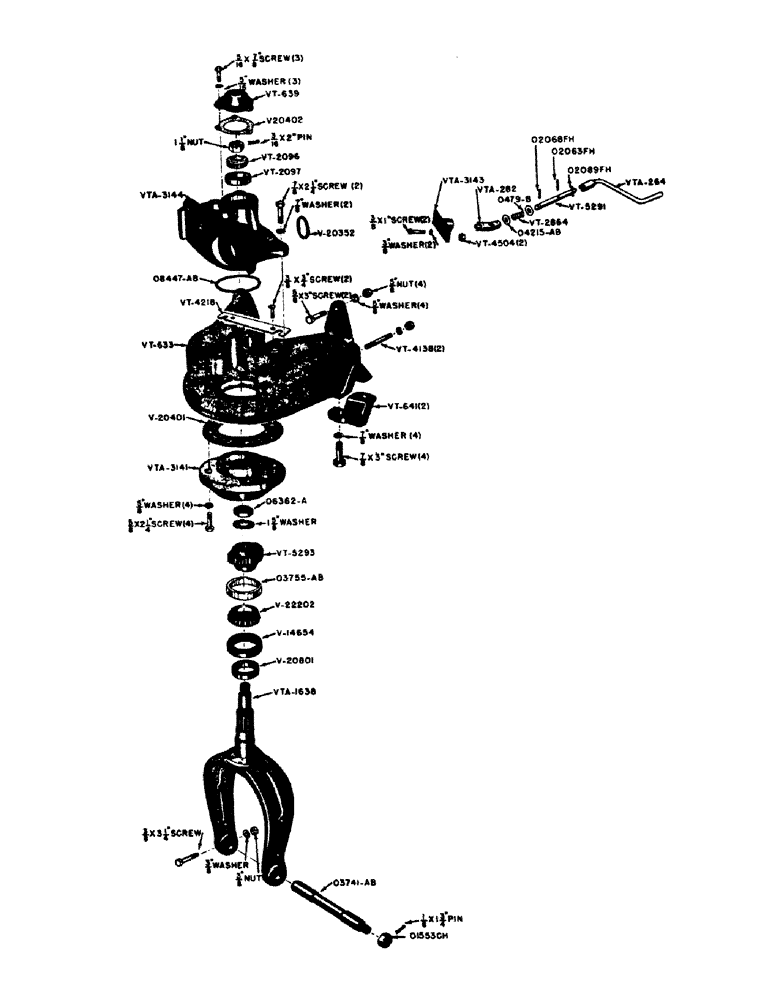

Запчасти Case IH VAC13-SERIES (092) - VAC-11 SINGLE FRONT WHEEL, VAC TRACTOR #5570000 AND AFTER (06) - POWER TRAIN

O6362A

NUT - hexagon

1шт.

O3741AB

AXLE - wheel

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-3/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3-1/4" screw - cap, hex. head, U.N.C. with hex, nut and lockwasher

1шт.

O3755AB

X

CUP - bearing, lower (Timken #394A)

1шт.

O4215AB

WASHER WITH CLIPPED EDGE

1шт.

O8447AB

X

"O" RING GASKET - 5-1/2" diameter

1шт.

O479B

WASHER - plain

1шт.

O1553CH

X

NUT - axle (1" N.F. slotted hex.)

1шт.

O2063FH

X

ROLL PIN - starting crank (3/16" x 1-1/8")

1шт.

O2068FH

X

ROLL PIN - starting crank (1/4" x 1-1/4")

1шт.

O2089FH

X

ROLL PIN - starting crank (3/8" x 1-3/4")

1шт.

V14654

X

OIL SEAL

1шт.

V20352

SCREW

"O" RING GASKET - 2-3/8" diameter

1шт.

V20401

GASKET

1шт.

V20402

GASKET - steering gear

1шт.

V20801

COLLAR - thrust

1шт.

V22202

BELLCRANK

CONE - bearing, lower (Timken #390)

1шт.

VT633

SUPPORT - front

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.

VT638

HOUSING - steering gear (Use VTA3144)

1шт.

VT639

CAP - steering gear housing

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" screw - cap, hex. head, U.N.C. with lockwasher

3шт.

VT640

SUPPORT - spindle bearing (Use VTA3141)

1шт.

VT641

CAP - toolbar socket

2шт.

NSS

NOT SOLD SEPARAT

7/8" x 3" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT2096

X

CONE - bearing, upper (Timken #14137A)

1шт.

VT2097

X

CUP - bearing, upper (Timken #14276)

1шт.

VT2864

SPRING

- starting crank

1шт.

VT4138

X

STUD - 5/8" x 2-7/8"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

2шт.

VT4218

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - machine, flat head, U.N.C.

2шт.

VT4504

WASHER

- plain

2шт.

VT5291

SHAFT - starting crank

1шт.

VT5293

WORM

WHEEL - steering

1шт.

VTA264

CRANK - starting

1шт.

VTA282

JOINT - universal, crank

1шт.

VTA1638

FORK AND SPINDLE ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 2" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

1-1/8" nut - hexagon, U.N.F., S.F. light series slotted

1шт.

NSS

NOT SOLD SEPARAT

1-5/8" washer - Shakeproof, I.T.

1шт.

VTA3141

SUPPORT - spindle bearing, with bearing cup

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VTA3143

GUIDE ASSEMBLY - universal assembly

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VTA3144

HOUSING - steering gear, with bearing cup

1шт.

NSS

NOT SOLD SEPARAT

7/8" x 2-1/4" screw - cap, hex, head, U.N.C. with lockwasher

2шт.
