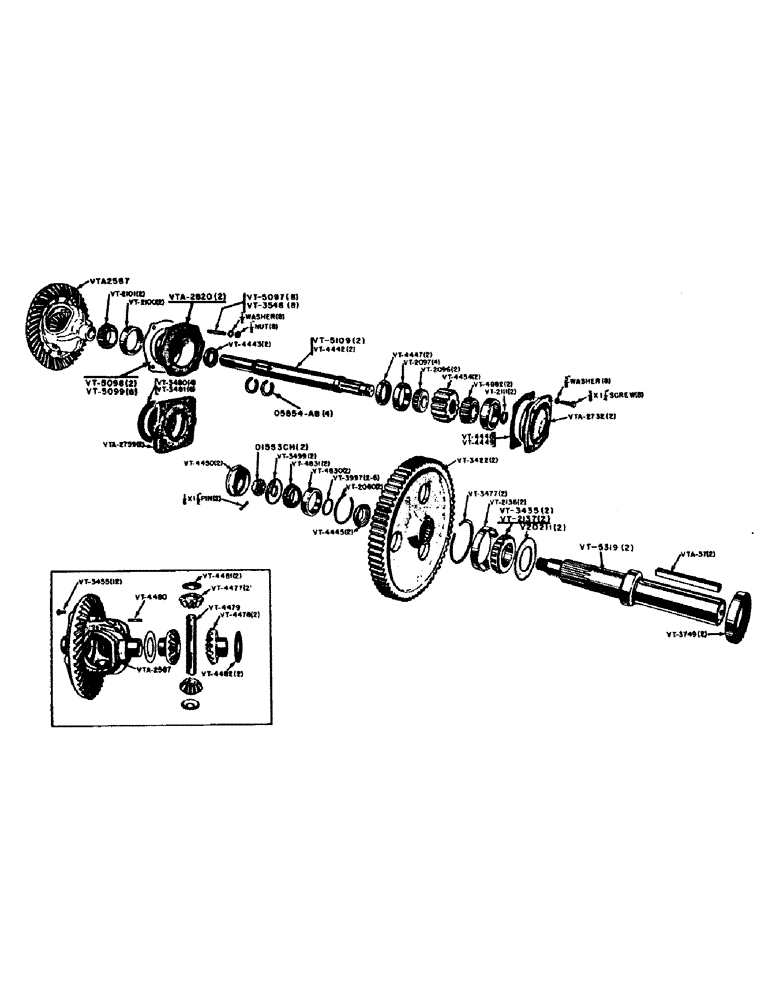

Запчасти Case IH VAC13-SERIES (072) - VAH DIFFERENTIAL AND FINAL DRIVE (06) - POWER TRAIN

O5854AB

X

SNAP RING - brake drum to shaft (Band type brakes)

4шт.

1553CH

NUT - drop axle shaft

2шт.

2740FH

ROLL PIN - axle shaft key (1/4" x 1/2")

2шт.

V20211

TRANSMISSION

WASHER - outer bearing cone, drop axle shaft

2шт.

VT502

CAP - bearing adjusting (Use VTA2732)

2шт.

VT503

CARRIER - bearing (Use VTA2759)

1шт.

VT506

CASE - differential (Use VTA2587)

1шт.

VT560

CARRIER - bearing (Use VTA2820)

1шт.

VT2060

SNAP RING - inner, drop axle shaft

2шт.

VT2096

X

CONE - inner bearing, upper axle shaft (Timken #14137-A)

2шт.

VT2097

X

CUP - bearing, upper axle shaft (Timken #14276)

4шт.

VT2100

X

CUP - bearing carrier (Timken #255200)

2шт.

VT2101

X

CONE - bearing carrier (Timken #25580)

2шт.

VT2111

X

SNAP RING - outer, upper axle shaft

2шт.

VT2136

X

CUP - outer bearing, drop axle shaft (Timken #382)

2шт.

VT2137

CONE - outer bearing, drop axle shaft (Timken #389A) (Used on axle with pressed collar) See VT3435

2шт.

VT3422

X

GEAR - final drive (66T)

2шт.

VT3435

X

CONE - outer bearing, drop axle shaft (Timken #387) (Used on one piece axle)

2шт.

VT3455

RIVET - ring gear

12шт.

VT3477

X

SNAP RING - outer, drop axle shaft

2шт.

VT3480

SHIM - differential bearing carrier (.005") (Disc type brakes)

4шт.

VT3481

SHIM - differential bearing carrier (.010") (Disc type brakes)

6шт.

VT3499

WASHER - take up, drop axle inner

2шт.

VT3546

X

STUD - bearing carrier (1/2" x 2-1/2") (Disc type brakes)

8шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex. nut w/E.T. Shakeproof lockwasher

8шт.

VT3749

X

OIL SEAL - outer, drop axle shaft

2шт.

VT3997

SHIM,.010" Thk

Inner bearing, Drop axle shaft .010" Thk

1шт.

VT4442

SHAFT - axle, upper (Disc type brakes)

2шт.

VT4443

X

OIL SEAL - inner, upper axle shaft

2шт.

VT4445

WASHER - special take up, final drive gear

2шт.

VT4447

X

OIL SEAL - outer, upper axle shaft

2шт.

VT4448

SHIM - bearing adjusting cap (.003")

1шт.

VT4449

SHIM - bearing adjusting cap (.005")

1шт.

VT4450

X

CAP - grease retaining

2шт.

VT4454

PINION - final drive gear (13T)

2шт.

VT4477

PINION - differential (10T)

2шт.

VT4478

GEAR - side (16T)

2шт.

VT4479

PIN - pinion, differential

1шт.

VT4480

PIN - lock, differential pinion pin

1шт.

VT4481

WASHER - thrust, differential pinion

2шт.

VT4482

WASHER - thrust, side gear

2шт.

VT4830

X

CUP - inner bearing, drop axle shaft (Timken #25821)

2шт.

VT4831

X

CONE - inner bearing, drop axle shaft (Timken #25877)

2шт.

VT4882

X

CONE - outer bearing, upper axle shaft (Timken #14116)

2шт.

VT5097

STUD - bearing carrier (1/2" x 1-15/16") (Band type brakes)

8шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex. nut and E.T. Shakeproof lockwasher

8шт.

VT5098

SHIM - bearing carrier (.005") (Band type brakes)

2шт.

VT5099

SHIM - bearing carrier (.010") (Band type brakes)

6шт.

VT5109

SHAFT - axle upper (Band type brakes)

2шт.

VT5319

SHAFT - drop axle

2шт.

VTA37

KEY - drop axle shaft (Includes O2740FH roll pin)

2шт.

VTA2560

X

SHAFT - drop axle w/pressed collar (Use VT5319, VT3435 and VT20211)

1шт.

VTA2587

RING GEAR ASSEMBLY - differential

1шт.

VTA2732

CAP - bearing adjusting (Includes VT2097 bearing cup)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" hex. hd. bolt w/lockwasher

8шт.

VTA2759

CARRIER - bearing, differential (Includes VT2100 bearing cup) (Disc type brakes)

2шт.

VTA2820

CARRIER - bearing, differential (Includes VT2100 bearing cup) (Band type brakes)

2шт.
