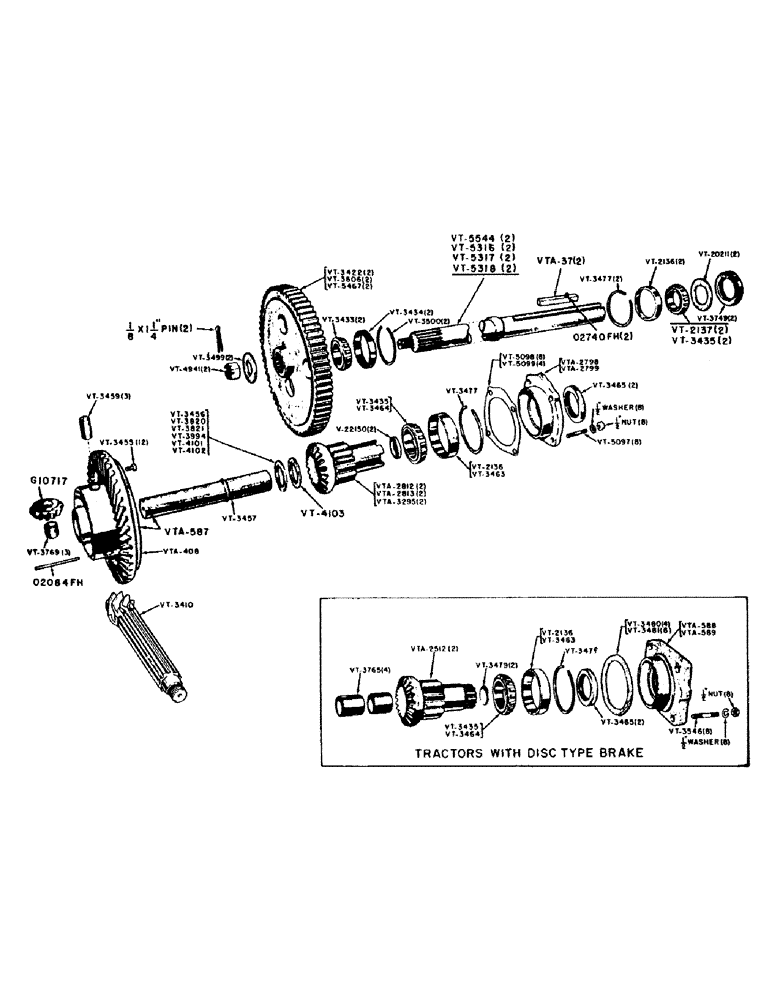

Запчасти Case IH VAC13-SERIES (062) - DIFFERENTIAL AND FINAL DRIVE, VAC, VA AND VAO (06) - POWER TRAIN

G10717

GEAR - pinion, differential (Without bushing)

3шт.

O2084FH

X

ROLL PIN - pinion gear pin (3/16" x 1-7/8")

3шт.

O2740FH

X

ROLL PIN - axle shaft key VTA37 (1/4" x 1/2")

2шт.

V20211

TRANSMISSION

WASHER - outer bearing cone, rear axle (3-3/4" O.D. x 2-1/4" I.D. x #14 G)

2шт.

V22150

CAP

PLUG - side gear (W/band type brakes) See VT3479

2шт.

VT169

CARRIER BEARING (Use VTA588 or VTA589)

1шт.

VT211

WHEEL - center (Use VTA408)

1шт.

VT555

CARRIER - bearing (Use VTA2798 or VTA2799)

1шт.

VT2136

X

CUP - bearing, R.H. side gear and outer axle (Timken #382)

3шт.

VT2137

CONE - bearing, axle outer (Timken #389A) (Use on axle with pressed collar) See VT3435

2шт.

VT3410

COUNTERSHAFT AND BEVEL DRIVE PINION

1шт.

VT3422

X

GEAR - final drive (66T) (44" - 80" tread on VAC)

1шт.

VT3433

CONE - bearing, axle inner (Timken #386)

2шт.

VT3434

X

CUP - bearing, axle inner (Timken #362)

2шт.

VT3435

X

CONE - bearing, R.H. side gear and axle outer (Timken #387) See VT2137

3шт.

VT3455

RIVET - ring gear

12шт.

VT3456

X

WASHER - thrust, center wheel (.094")

1шт.

VT3457

SHAFT - cross, differential (See VTA587)

1шт.

VT3459

PIN - pinion gear

3шт.

VT3463

X

CUP - bearing, L.H. side gear (Timken #28623)

1шт.

VT3464

X

CONE - bearing, L.H. side gear (Tinken #28682)

1шт.

VT3465

X

OIL SEAL - bearing carrier

2шт.

VT3477

X

SNAP RING - R.H. side gear and outer axle

3шт.

VT3479

X

PLUG - side gear (W/disc type brake) See V22150)

2шт.

VT3480

SHIM - bearing carrier (.005") (W/disc type brakes)

4шт.

VT3481

SHIM - bearing carrier (.010") (W/disc type brakes)

6шт.

VT3499

WASHER - take-up, axle shaft

2шт.

VT3500

RING

SNAP RING - inner bearing, axle

2шт.

VT3546

X

STUD - (1/2" x 2-1/2") bearing carrier (W/disc type brakes)

8шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut and lockwasher

8шт.

VT3606

GEAR - final drive (65T)

2шт.

Used on special mowing VAC 13 tractors with adjustable front axle after #5570000.

1шт.

VT3749

X

OIL SEAL - axle outer

2шт.

VT3765

BUSHING - side gear (W/disc type brakes)

4шт.

VT3769

BUSHING - pinion gear

3шт.

VT3820

WASHER - thrust, center wheel (.099")

1шт.

VT3821

WASHER - thrust, center wheel (.104")

1шт.

VT3994

WASHER - thrust, center wheel (.089")

1шт.

VT4101

WASHER - thrust, center wheel (.109")

1шт.

VT4102

X

WASHER - thrust, center wheel (.119")

1шт.

VT4103

WASHER

SHIM - center wheel (.010")

1шт.

VT4941

X

NUT - rear axle (1" N.F. slotted hex.)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

2шт.

VT5097

STUD - (1/2" x 1-15/16") bearing carrier (W/band type brakes)

8шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut (Light) and E.T. Shakeproof lockwasher

8шт.

VT5098

SHIM - bearing carrier (.005") (W/band type brakes)

8шт.

VT5099

SHIM - bearing carrier (.010") (W/band type brakes)

4шт.

VT5316

SHAFT - rear axle (32-1/8" long) (VA, VAO)

2шт.

VT5317

SHAFT - rear axle (39-7/8" long) 44" - 88" tread (VAC)

2шт.

VT5318

SHAFT - rear axle (35-3/4" long) 44" - 80" tread (VAC)

2шт.

VT5467

GEAR - final drive (67T) VAC 44" - 88" tread and VAO 15 (VAC, VAO)

2шт.

VT5544

SHAFT - rear axle (27-15/16") VAO 15 only (VAO)

2шт.

VTA37

KEY - hub to axle shaft (Includes O2740FH roll pin)

2шт.

VTA408

RING GEAR AND CENTER WHEEL ASSEMBLY (See VTA587)

1шт.

VTA415

X

SHAFT - rear axle w/pressed sleeve (32-1/8" long) (Use VT5316, VT3435 and V20211)

1шт.

VTA416

X

SHAFT - rear axle w/pressed sleeve (39-7/8" long) (Use VT5317, VT3435 and V20211)

1шт.

VTA587

X

RING GEAR AND CENTER WHEEL ASSEMBLY W/SHAFT (Includes VT3457 shaft)

1шт.

VTA588

CARRIER - R.H. bearing (Includes VT2136 cup) Tractors w/disc type brakes

1шт.

VTA589

CARRIER - L.H. bearing (Includes CT3436 cup) Tractors w/disc type brakes

1шт.

VTA2512

GEAR - side (Includes VT3479 plug and 2-VT3765 bushings) Tractors w/disc type brakes

2шт.

VTA2573

SHAFT - rear axle w/pressed sleeve (35-3/4" long) (Use VT5318, VT3435 and V20211)

1шт.

VTA2798

CARRIER - R.H. bearing (Includes VT2136 cup) tractors with band type brakes

1шт.

VTA2799

CARRIER - L.H. bearing (Includes VT3463 cup) tractors with band type brakes

1шт.

VTA2812

GEAR (13T) side (Includes V22150 plug) tractors with band type brakes (VAC with 44" - 80" tread)

2шт.

VTA2813

GEAR - (14T) side (Includes V22150 plug) (VAC)

2шт.

Used on special mowing VAC 13 tractors with adjustable front axle after #5570000.

1шт.

VTA3295

GEAR - (12T) side (Includes V22150 plug) tractors with band type brakes (VAC w/44" - 88" tread and VAO 15) (VAC, VAO)

2шт.
