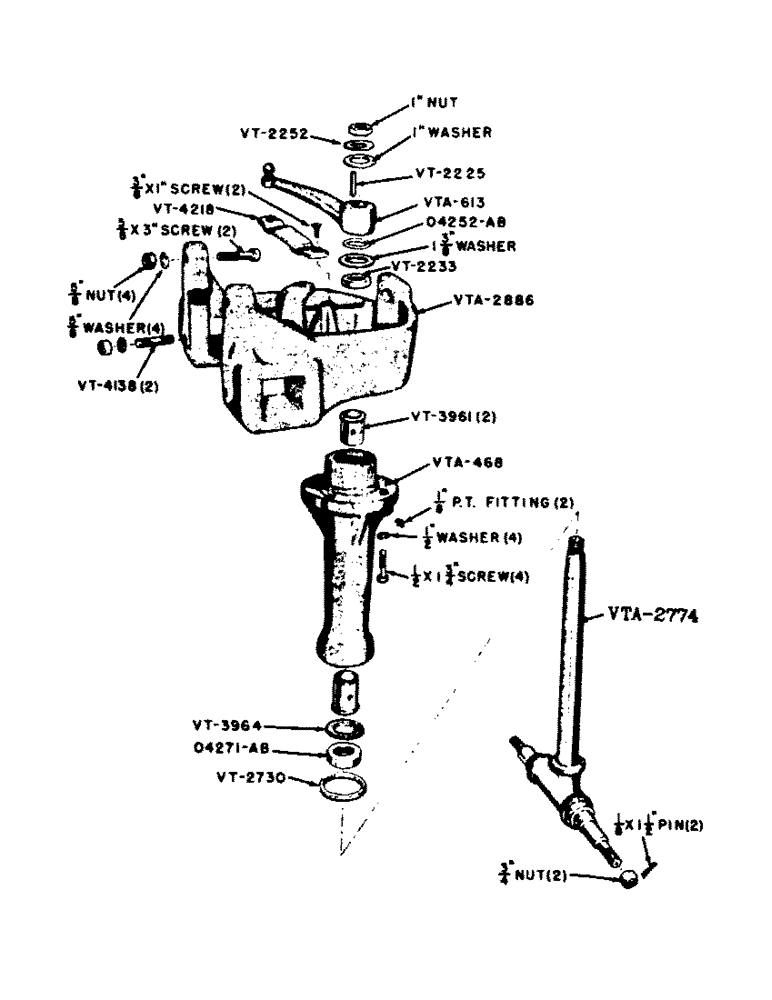

Запчасти Case IH VAC13-SERIES (087) - VAC PEDESTAL AND STEERING PARTS, VAC TRACTORS #4829408 TO #5261528 (05) - STEERING

O4252AB

SHIM - adjusting, steering spindle

1шт.

O4271AB

X

BEARING - thrust (Timken #T139)

1шт.

VT206

SUPPORT - front (Use VTA2886)

1шт.

VT243

PEDESTAL (Use VTA468)

1шт.

VT2225

KEY - steering arm

1шт.

VT2233

X

OIL SEAL - upper

1шт.

VT2252

LOCKWASHER - steering arm

1шт.

VT2730

OIL SEAL - lower

1шт.

VT3961

X

BUSHING - oilite, for pedestal

2шт.

VT3964

X

WASHER - thrust

1шт.

VT3970

BRACKET - radiator (Use VT4218)

1шт.

VT4138

X

STUD - 5/8" x 2-1/2"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., with lockwasher

2шт.

VT4218

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - machine, countersunk head, U.N.C.

2шт.

VTA468

PEDESTAL WITH BUSHINGS AND FITTINGS

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" screw - cap, hex. head, U.N.C., with lockwasher

4шт.

VTA613

ARM - steering, front

1шт.

VTA2774

PEDESTAL ASSEMBLY (Consists of: 1 - VTA2724, 3-6 - VT4839, 1 - VT4992, 1 - VT4993, 1 - VT4994, 1 - VT4995, 1 - VT5010, and 1 - VT5011)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/2" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F.

2шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon, U.N.F.

1шт.

NSS

NOT SOLD SEPARAT

1" washer - plain

1шт.

NSS

NOT SOLD SEPARAT

1-3/8" washer - plain, S.A.E. standard

1шт.

VTA2886

SUPPORT CASTING AND RADIATOR BRACKET

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.
