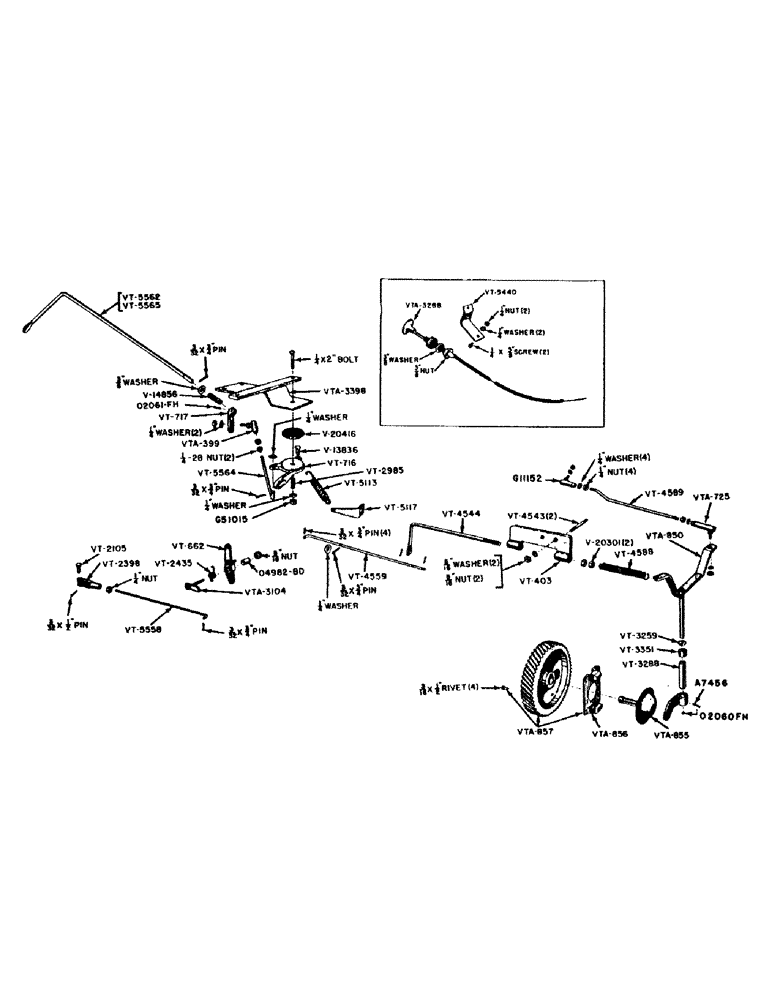

Запчасти Case IH VAC13-SERIES (028) - GOVERNOR AND THROTTLE LINKAGE, VAC 14 AND VAO 15 TRACTORS (03) - FUEL SYSTEM

A7456

X

BALL - thrust, governor shaft (3/16" dia.)

1шт.

G11152

X

BALL AND SOCKET ASSEMBLY - throttle, Serial Range: rod-carburetor

1шт.

G51015

NUT - stop, friction lever bolt

1шт.

O4982BD

X

SPACER - control lever

1шт.

O2060FH

X

ROLL PIN - governor arm shaft to lever (1/8 x 3/4")

1шт.

O2601FH

ROLL PIN - throttle pivot lever (1/8" x 7/8")

1шт.

V13836

PIN - clevis, return spring

1шт.

V14856

HANDLE

SPRING - tension, hand lever rod

1шт.

V20301

LOCK WASHER

NUT - governor rod

2шт.

V20416

DISC - cork friction

1шт.

VT403

GUIDE - control rod

1шт.

VT662

LEVER - speed control

1шт.

VT716

LEVER - friction

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 2" carriage bolt w/plain washer

1шт.

VT717

LEVER - throttle pivot

1шт.

VT2105

X

PIN - clevis, foot feed link

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 1/2" cotter pin

1шт.

VT2398

X

END - adjustable yoke

1шт.

VT2435

X

SPRING - foot feed

1шт.

VT2985

X

SPRING - tension, friction lever

1шт.

VT3259

X

SEAL - dust, governor shaft

1шт.

VT3288

X

SPACER - thrust, governor shaft

1шт.

VT3351

X

BEARING - governor shaft (Torrington #B610)

1шт.

VT4543

X

STUD - governor rod guide (5/16" x 1-1/2")

2шт.

NSS

NOT SOLD SEPARAT

5/16" N.F. hex. nut and lockwasher

2шт.

VT4544

ROD - governor control

1шт.

VT4559

ROD - governor control, Serial Range: rod-lever

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

3шт.

NSS

NOT SOLD SEPARAT

1/4" plain washer

1шт.

VT4588

X

SPRING - governor

1шт.

VT4589

ROD - governor, Serial Range: arm-throttle

1шт.

NSS

NOT SOLD SEPARAT

1/4" N.F. hex. nut and I.T. Shakeproof lockwasher

2шт.

VT5113

X

SPRING - lever return

1шт.

VT5117

ANCHOR - return spring

1шт.

VT5440

BRACKET - mounting, throttle control (VAC14)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

VT5558

LINK - foot feed

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

1/4" N.F. hex. nut

1шт.

VT5562

ROD - lever, hand throttle (VAC14)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter

1шт.

NSS

NOT SOLD SEPARAT

3/8" plain washer

1шт.

VT5564

LINK - throttle connecting

1шт.

VT5565

ROD - lever, hand throttle (VAO15)

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

3/8" plain washer

1шт.

VTA725

BALL JOINT

BALL AND SOCKET ASSEMBLY - throttle rod to governor arm

1шт.

VTA850

X

LEVER AND ARM ASSEMBLY - governor

1шт.

VTA855

X

GOVERNOR SHAFT ASSEMBLY

1шт.

VTA856

GOVERNOR WEIGHT ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1/2" rd. hd. rivet

4шт.

VTA857

X

CAMSHAFT GEAR AND GOVERNOR WEIGHT ASSEMBLY

1шт.

VTA3104

BOLT - foot feed spring

1шт.

NSS

NOT SOLD SEPARAT

5/16" N.C. hex. jam nut

1шт.

VTA3288

THROTTLE CONTROL ROD ASSEMBLY (VAC14)

1шт.

VTA3398

BRACKET - mounting, fuel tank

1шт.
