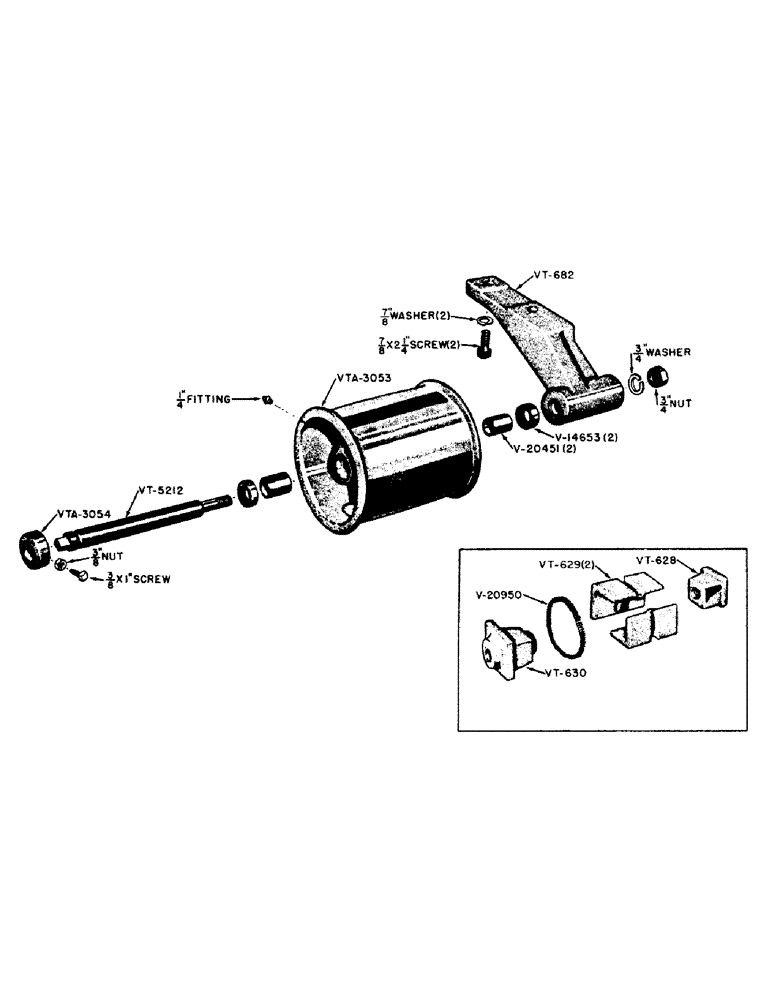

Запчасти Case IH VAC12-SERIES (153) - IDLER PULLEY (06) - POWER TRAIN

V14653

SEAL - grease

2шт.

V20451

BUSHING - idler pulley

2шт.

V20950

PLUG

SPRING - garter, Serial Range: -5570000

1шт.

VT628

WEDGE - inner, Serial Range: -5570000

1шт.

VT629

BLOCK - wedge, Serial Range: -5570000

2шт.

VT630

WEDGE - outer, Serial Range: -5570000

1шт.

VT631

PULLEY - idler (Use VTA3053)

1шт.

VT682

BRACKET - mounting, Serial Range: -5570000

1шт.

NSS

NOT SOLD SEPARAT

7/8" x 2-1/4" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VT5212

SHAFT - pulley

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

3/4" washer - lock

1шт.

VTA3053

PULLEY - idler, with bushings

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting - grease, straight drive (Alemite #1743)

1шт.

VTA3054

COLLAR - thrust, with set screw

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - set, square head, dog point, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon jam, U.N.C., S.F.

1шт.
