Запчасти Case IH VAC12-SERIES (138) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS, VAC, VA, VAO, VAH (06) - POWER TRAIN

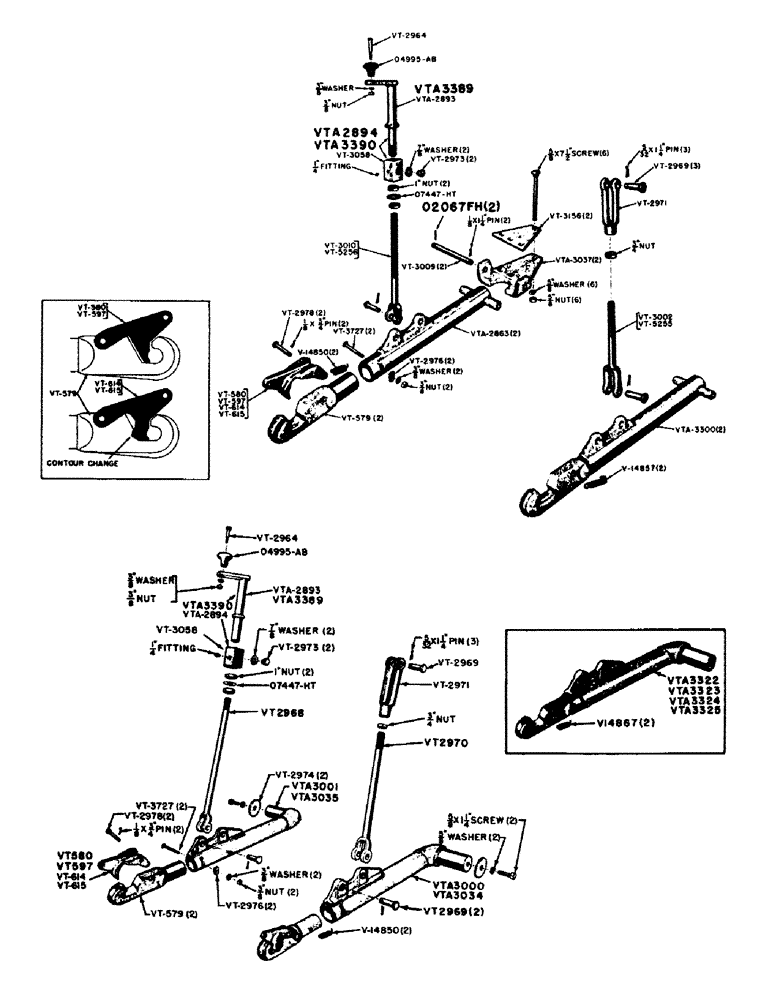

Схема запчастей Case IH VAC12-SERIES - (138) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS, VAC, VA, VAO, VAH (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

O4995AB

X

KNOB - SPINNER

1шт.

O2067FH

X

ROLL PIN (1/4" x 7/8") pivot shaft, draft arm (VAC, VA, VAO)

2шт.

O7447HT

WASHER - nut lock

1шт.

V14850

X

SPRING - latch (Use with VTA3000, VTA3001, VTA3034 and VTA3035) (See V14867)

2шт.

V14867

SPRING - latch (Use with VTA3322, VTA3300, VTA3323, VTA3324 and VTA3325 (See V14850)

2шт.

VT579

HITCH - draft arm

2шт.

VT580

LATCH - hitch, draft arm, right-hand (See VT614)

1шт.

VT597

LATCH - hitch, draft arm, left-hand (See VT615)

1шт.

VT614

LATCH - draft arm, right-hand (See VT580)

1шт.

VT615

LATCH - draft arm, left-hand (See VT597)

1шт.

VT2964

BOLT - spinner knob

1шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C., S.F. regular with lockwasher

1шт.

VT2968

LINK - lift, adjustable (See VT3010 and VT5256)

1шт.

VT2969

X

PIN - yoke

3шт.

NSS

NOT SOLD SEPARAT

5/32" x 1-1/4" pin - cotter

3шт.

VT2970

YOKE - end (Male) (VAH)

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon jam, U.N.F., S.F. (VAH)

1шт.

VT2971

YOKE - end (Female)

1шт.

VT2973

X

SCREW - trunnion pivot

2шт.

NSS

NOT SOLD SEPARAT

7/8" washer - Shakeproof, E.T.

2шт.

VT2974

RETAINER - draft arm (VAH)

2шт.

VT2976

SPACER - wear edge

2шт.

VT2978

X

PIN - hitch, draft arm

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

2шт.

VT3002

END - yoke (Male) (6-1/2" long) (VAC, VA, VAO)

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon jam, U.N.F., S.F. (VAC, VA, VAO)

1шт.

VT3009

PIN - pivot, draft arm (VAC, VA, VAO)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter (VAC, VA, VAO)

2шт.

VT3010

LINK - lift, adjustable (15-1/2" long) (See VT5256) (VAC, VA, VAO)

1шт.

VT3058

TRUNNION - adjusting screw (See VTA2894)

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting - grease, straight drive (Lincoln #5029)

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting - grease, straight drive (Lincoln #5029)

1шт.

VT3156

STRAP - clamp (VAC, VA, VAO)

2шт.

VT3727

BOLT - drilled 3/8" x 3", draft arm

2шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C. with lockwasher

2шт.

VT5255

YOKE END (Male) (8-1/4" long) (See VT3002) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon jam, U.N.F., S.F. (VAC)

2шт.

VT5256

X

LINK - lift, adjustable (17-1/4" long) (See VT3010) (VAC)

1шт.

VTA2863

ARM - draft (See VTA3300) (VAC, VA, VAO)

2шт.

VTA2893

SCREW - adjusting (See VTA2894)

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 nut - hexagon jam, U.N.F.

2шт.

VTA2894

ADJUSTING SCREW AND TRUNNION ASSEMBLY

1шт.

VTA3000

ARM - draft, right-hand (52" tread only) (See VTA3324) (VAH)

1шт.

VTA3001

ARM - draft, left-hand (52" tread only) (See VTA3325) (VAH)

1шт.

VTA3034

ARM - draft, right-hand (Standard tread) (See VTA3322) (VAH)

1шт.

VTA3035

ARM - draft, left-hand (Standard tread) (See VTA3323) (VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/4" screw - cap, hexagon head, U.N.C. with lockwasher (VAH)

2шт.

VTA3037

BRACKET - pivot (VAC, VA, VAO)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 7-1/2" bolt - carriage, with hex. nut and lockwasher (VAC, VA, VAO)

6шт.

VTA3300

DRAFT ARM AND LIFT EYE (See VTA2863) (VAC, VA, VAO)

2шт.

VTA3322

DRAFT ARM - right-hand (Standard tread) (See VTA3034) (VAH)

1шт.

VTA3323

DRAFT ARM - left-hand (Standard tread) (See VTA3035) (VAH)

1шт.

VTA3324

DRAFT ARM - right-hand (52" tread only) (See VTA3000) (VAH)

1шт.

VTA3325

DRAFT ARM - left-hand (52" tread only) (See VTA3001) (VAH)

1шт.

VTA3389

SCREW - adjusting (VAO15) See VTA3390 (VAO)

1шт.

VTA3390

ADJUSTING SCREW AND TRUNNION ASSEMBLY (VAO15) (VAO)

1шт.

Выбрано товаров: 56
