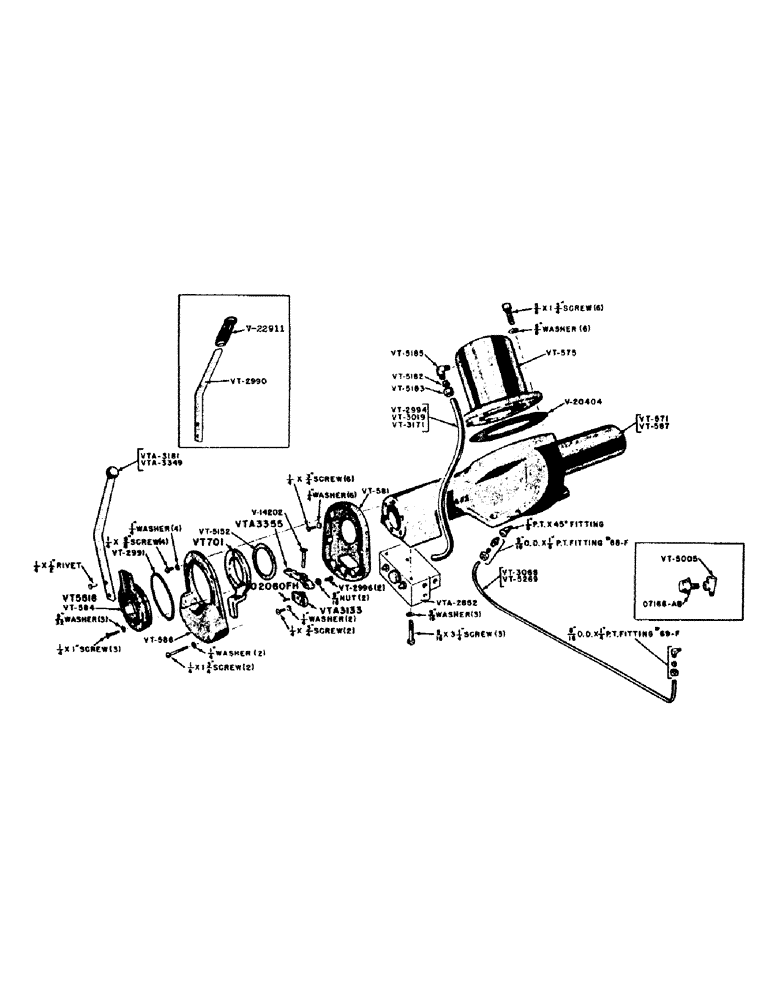

Запчасти Case IH VAC12-SERIES (134) - EAGLE HITCH ROCKSHAFT HOUSING AND CONTROL LEVER (06) - POWER TRAIN

O7166AB

X

BREATHER - hydraulic oil

1шт.

O2060FH

X

ROLL PIN - V14202 pivot shaft to bearing block (1/8" x 3/4")

1шт.

V14202

BOLT

SHAFT - pivot, bearing block

1шт.

V20404

X

GASKET -, Serial Range: cylinder-housing

1шт.

V22911

HOSE

GRIP - rubber, control lever

1шт.

VT571

HOUSING - rockshaft (VAH) (See VT587), Serial Range: -5554384

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex. hd. bolt w/hex. nut and plain washer

2шт.

VT575

CYLINDER - hydraulic lift

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. Allen hd. screw w/E.T. Shakeproof lockwasher

6шт.

VT581

HOUSING - control cam

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" flat hd. mach. screw w/lockwasher (Shakeproof #1514)

6шт.

VT582

LEVER (Use VTA3355 and VT701)

1шт.

VT583

BLOCK - bearing (Use VTA3133)

1шт.

VT584

BASE - control lever (Use VT5518 when present stocks are depleted)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" ctsk. hd. rivet

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" flat hd. mach. screw w/Shakeproof lockwasher (#1516)

3шт.

VT585

CAM - control (Use VT701 and VTA3355)

1шт.

VT586

COVER - control cam housing

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" rd. hd. mach. screw w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" rd. hd. mach. screw w/lockwasher

2шт.

VT587

HOUSING - rockshaft (Use on VAH), Start Serial: 5554383

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

3шт.

NSS

NOT SOLD SEPARAT

1/8" 30 degree fitting (Lincoln #5100)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-5/8" N.C. hex. hd. bolt w/lockwasher

3шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex. hd. bolt w/lockwasher

1шт.

VT701

CAM - control

1шт.

VT2990

LEVER (Use VTA3181)

1шт.

VT2991

X

"O" RING - control lever

1шт.

VT2994

LINE - oil, control to ram (VAH), Serial Range: -5554384

1шт.

VT2996

SCREW - adjusting, actuating lever

2шт.

NSS

NOT SOLD SEPARAT

5/16" N.F. hex. jam nut

2шт.

VT3019

LINE - oil, Serial Range: control-ram

1шт.

VT3068

LINE - breather, 51" long, Serial Range: -5558065

1шт.

VT3171

LINE - oil, control to ram (VAH), Start Serial: 5554383

1шт.

VT5005

X

TEE - adapter, breather line, Serial Range: -55580656

1шт.

VT5152

SHIM - depth control

1шт.

VT5182

SLEEVE - coupling, oil line

1шт.

VT5183

NUT - coupling, oil line

1шт.

VT5185

ELBOW FITTING - oil line

1шт.

VT5269

LINE - breather, 31-1/2" long

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. 45 degree street ell

1шт.

NSS

NOT SOLD SEPARAT

68F - 1/8" x 5/16" fitting - includes 60F-5/16" sleeve and 61F-5/16" nut

1шт.

NSS

NOT SOLD SEPARAT

69F - 1/8" x 5/16" elbow - includes 60F-5/16" sleeve and 61F-5/16" nut

1шт.

VT5518

BASE - control lever (See VT584)

1шт.

VTA2852

VALVE - depth control (See Fig.)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3-1/4" N.C. hex. hd. bolt w/lockwasher

3шт.

VTA3133

BLOCK - bearing (Includes V14202 pivot shaft and O2060FH roll pin

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" flat hd. mach. screw w/#1514 Shakeproof lockwasher

2шт.

VTA3181

LEVER - depth control (See VTA3349)

1шт.

VTA3349

LEVER - depth control (VAC14 and VAO15)

1шт.

VTA3355

LEVER - actuating (Includes 2-VT2996 screws and nuts)

1шт.
