Запчасти Case IH VAC12-SERIES (089) - VAC DUAL FRONT WHEELS, TRACTOR #5570000 AND AFTER (06) - POWER TRAIN

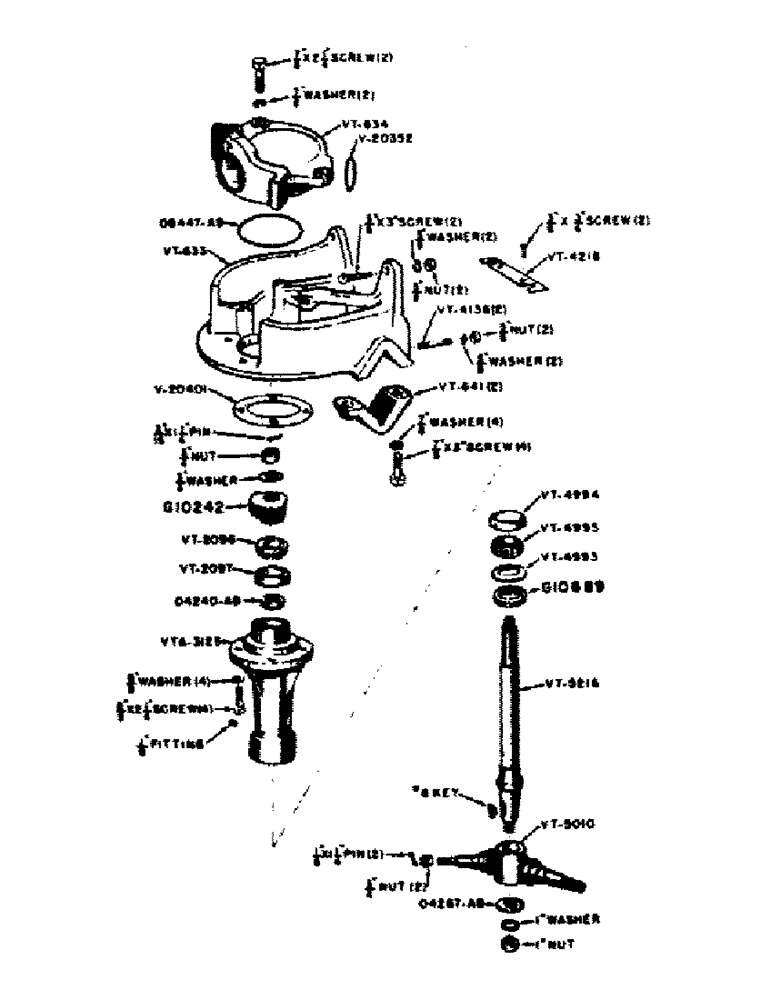

Схема запчастей Case IH VAC12-SERIES - (089) - VAC DUAL FRONT WHEELS, TRACTOR #5570000 AND AFTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G10242

WORM WHEEL - steering

1шт.

G10689

SEAL

OIL SEAL

1шт.

O4240AB

X

OIL SEAL

1шт.

O4267AB

WASHER

1шт.

O8447AB

X

"O" RING GASKET - 5-1/2" diameter

1шт.

V20352

SCREW

"O" RING GASKET - 2-3/8" diameter

1шт.

V20401

GASKET

1шт.

VT633

SUPPORT - front

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.

VT634

HOUSING - steering gear

1шт.

NSS

NOT SOLD SEPARAT

7/8" x 2-1/4" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VT637

PEDESTAL (Use VTA3125)

1шт.

VT641

CAP - tool bar socket

2шт.

NSS

NOT SOLD SEPARAT

7/8" x 3" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT2096

X

CONE - bearing, upper (Timken #14137A)

1шт.

VT2097

X

CUP - bearing, upper (Timken #14276)

1шт.

VT4138

X

STUD - 5/8" x 2-7/8"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light with series with lockwasher

2шт.

VT4218

BRACKET - radiator mounting

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - machine, flat head, U.N.C.

2шт.

VT4993

X

WASHER - thrust

1шт.

VT4994

X

CUP - bearing, lower (Timken #24722)

1шт.

VT4995

X

CONE - bearing, lower (Timken #24780)

1шт.

VT5010

KNUCKLE - steering

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F., S.F. light thick slotted

2шт.

VT5216

SPINDLE - steering

1шт.

NSS

NOT SOLD SEPARAT

#G key - Woodruff

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F., S.F. light series slotted

1шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon, U.N.F., S.F. jam

1шт.

NSS

NOT SOLD SEPARAT

1" washer - lock

1шт.

NSS

NOT SOLD SEPARAT

3/4" washer - plain, regular standard

1шт.

VTA3125

PEDESTAL - front, with bearing cones and fitting

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" screw - cap, hex. head, U.N.C. with lockwasher

4шт.
