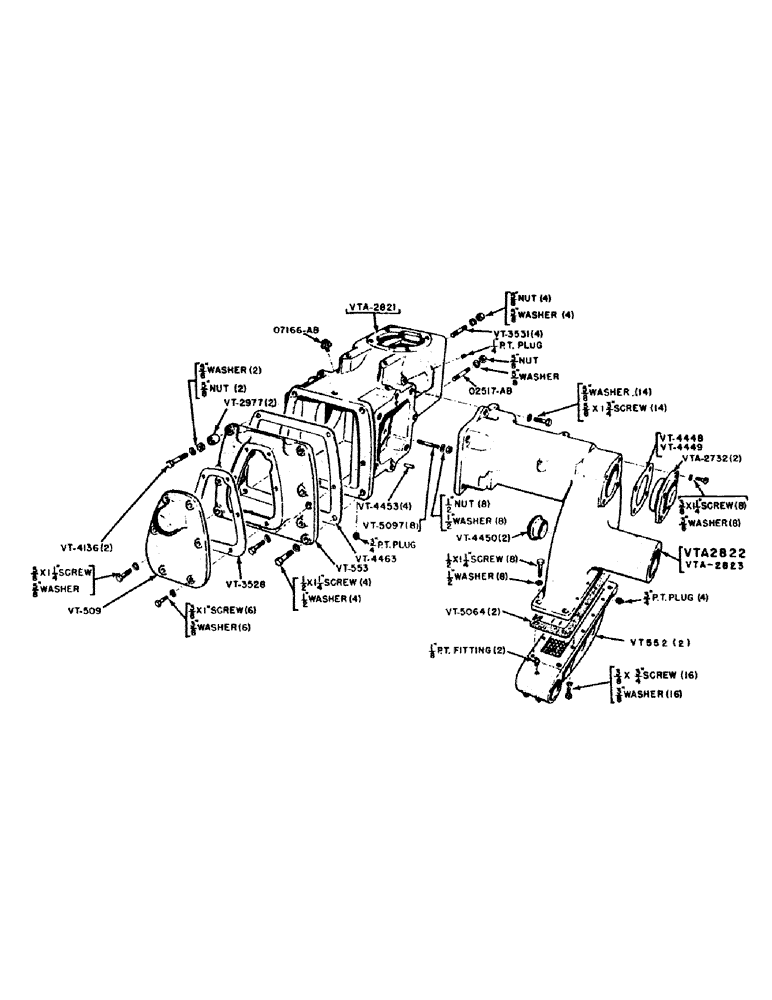

Запчасти Case IH VAC12-SERIES (070) - TRANSMISSION CASE AND AXLE HOUSINGS, VAH WITH BAND TYPE BRAKES (06) - POWER TRAIN

O2517AB

X

STUD - torque tube to transmission case (5/8" x 4-5/8")

1шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex, nut and lockwasher

1шт.

O7166AB

X

BREATHER

1шт.

VT502

CAP - bearing adjusting (Use VTA2732)

1шт.

VT509

COVER - adapter housing, P.T.O.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

6шт.

VT552

OIL PAN - axle housing

2шт.

NSS

NOT SOLD SEPARAT

1/8" Str. fitting (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

3/4" Std. Sq. hd. pipe plug

4шт.

VT553

HOUSING - adapter, P.T.O.

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

1шт.

VT563

CASE - transmission (Use VTA2821)

1шт.

VT564

HOUSING - R.H. drop axle (Use VTA2822)

1шт.

VT565

HOUSING - L.H. drop axle (Use VTA2823)

1шт.

VT2977

SPACER - mounting bracket, turnbuckle

2шт.

VT3528

X

GASKET - adapter housing, P.T.O.

1шт.

VT3531

X

STUD - torque tube to transmission case (5/8" x 3")

4шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

4шт.

VT4136

BOLT - mounting bracket, turnbuckle

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

2шт.

VT4448

SHIM - bearing adjusting cap (.003")

1шт.

VT4449

SHIM - bearing adjusting cap (.005")

1шт.

VT4450

X

CAP - grease retining

2шт.

VT4453

X

PIN - dowel, axle, Serial Range: housing-case

4шт.

VT4463

GASKET - P.T.O. adapter housing

1шт.

VT5064

GASKET - oil pan, axle housing

2шт.

VT5097

STUD - bearing carrier (1/2" x 1-15/16")

8шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex. nut and E.T. Shakeproof lockwasher

8шт.

VTA2732

CAP - bearing adjusting (Includes bearing cup)

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

8шт.

VTA2821

CASE - transmission (Includes bearing cups, snap rings and studs)

1шт.

NSS

NOT SOLD SEPARAT

1/4" slotted hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

3/4" sq. hd. pipe plug

1шт.

VTA2822

HOUSING - R.H. drop axle (Includes bearing cups)

1шт.

VTA2823

HOUSING - L.H. drop axle (Includes bearing cups)

1шт.
