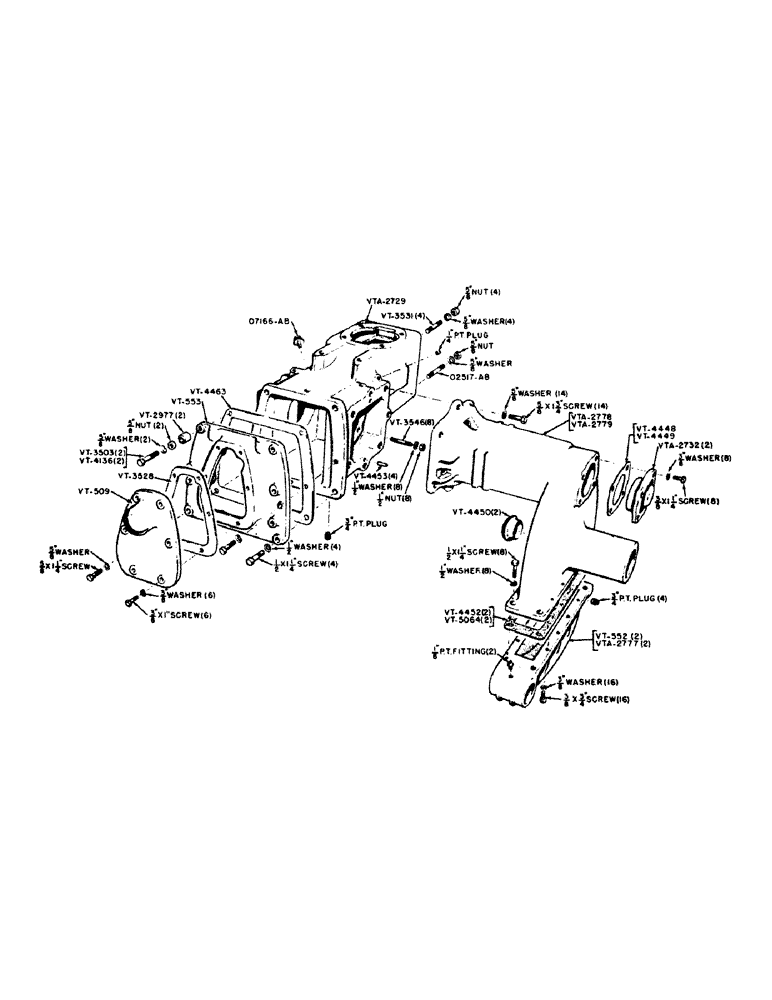

Запчасти Case IH VAC12-SERIES (068) - TRANSMISSION CASE AND AXLE HOUSINGS, VAH WITH DISC TYPE BRAKES (06) - POWER TRAIN

2517AB

STUD - 5/8" x 4-5/8", transmission case to torque tube

1шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

1шт.

O7166AB

X

BREATHER

1шт.

VT298

CASE - transmission (Use VTA2729)

1шт.

VT299

OIL PAN (Use VTA2777)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with lockwasher

24шт.

VT500

DROP AXLE - right-hand (Use VTA2777 and VTA2778)

1шт.

VT501

DROP AXLE - left-hand (Use VTA2777 and VTA2779)

1шт.

VT502

CAP - bearing adjusting (Use VTA2732)

1шт.

VT505

ADAPTER - transmission housing (Use VT553)

1шт.

VT509

COVER - adapter housing

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hexagon head, U.N.C. with lockwasher

6шт.

VT550

DROP AXLE - right-hand (Use VTA2778)

1шт.

VT551

DROP AXLE - left-hand (Use VTA2779)

1шт.

VT552

OIL PAN (See VTA2777), Start Serial: 5357216

2шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

3/4" P.T. plug - pipe, square head

4шт.

VT553

HOUSING - adapter, power take-off

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" screw - cap, hexagon head, U.N.C. with lockwasher

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/4" screw - cap, hexagon head, U.N.C. with lockwasher

1шт.

VT554

OIL PAN (Use VA2777)

1шт.

VT2977

SPACER - eagle hitch mounting bracket, Start Serial: 5370000

2шт.

VT3503

X

BOLT - ground body (See VT4136), Serial Range: -5370000

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

2шт.

VT3528

X

GASKET - adapter, power take off

1шт.

VT3531

X

STUD - 5/8" x 3" (Transmission case to torque tube)

4шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

4шт.

VT3546

X

STUD - 1/2" x 2-1/2" (Differential bearing carrier)

8шт.

NSS

NOT SOLD SEPARAT

1/2" nut - hexagon, U.N.F., S.F. light series

8шт.

NSS

NOT SOLD SEPARAT

1/2" washer - Shakeproof, E.T.

8шт.

VT4136

SCREW - cap, ground body, Start Serial: 5370000

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

2шт.

VT4448

SHIM - bearing adjusting (.003)

1шт.

VT4449

SHIM - bearing adjusting (.005)

1шт.

VT4450

X

CAP - grease retaining

2шт.

VT4452

GASKET - oil pan (See VT5064), Serial Range: -5357217

2шт.

VT4453

X

PIN - dowel, locating, for alignment of axle housing

4шт.

VT4463

GASKET - power take off adapter

1шт.

VT4543

X

STUD - 5/16" x 1-1/2" (Use with VT554)

4шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon, U.N.F., S.F. light series with lockwasher

4шт.

VT5064

GASKET - oil pan (See VT4452), Start Serial: 5357216

2шт.

VTA2729

CASE - transmission (Includes bearing cups, snap rings, and studs)

1шт.

NSS

NOT SOLD SEPARAT

1/4" P.T. plug - pipe, slotted head

1шт.

NSS

NOT SOLD SEPARAT

3/4" P.T. plug - pipe, square head

1шт.

VTA2732

CAP - bearing adjusting, with bearing cup

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher

8шт.

VTA2777

OIL PAN ASSEMBLY (See VT552), Serial Range: -5357217

2шт.

VTA2778

HOUSING ASSEMBLY - right hand, with bearing cups and snap rings

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

16шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher

8шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher

14шт.
