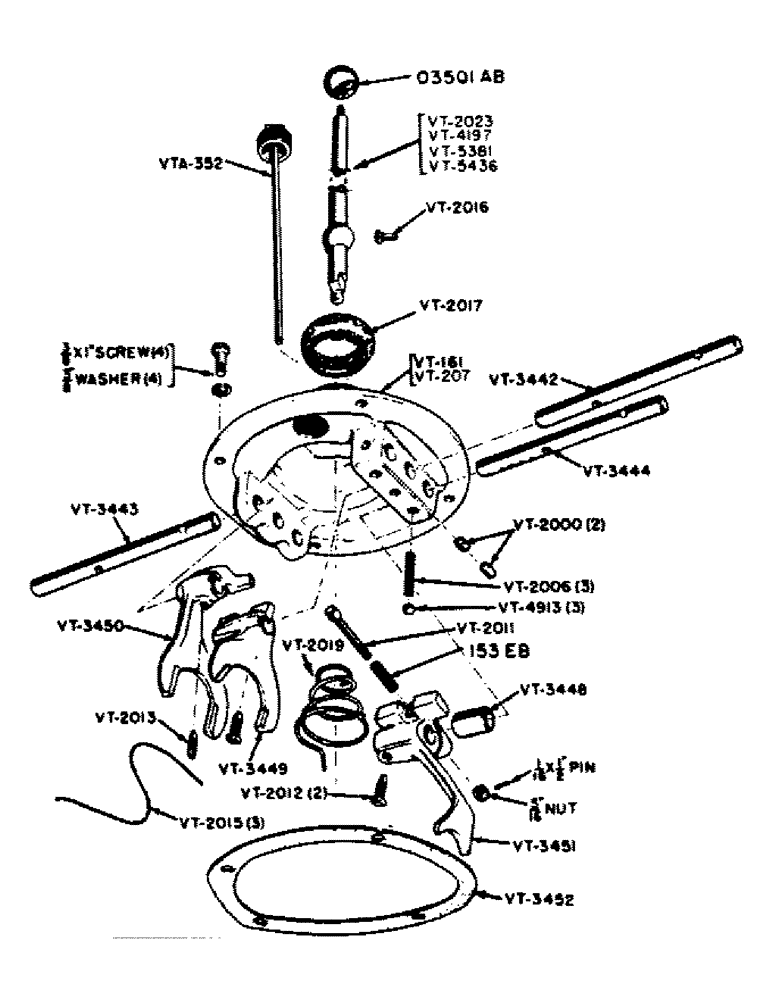

Запчасти Case IH VAC12-SERIES (057) - GEAR SHIFT, VA, VA, VAO, VAH (06) - POWER TRAIN

O3501AB

X

KNOB - gear shift lever

1шт.

VT161

COVER - gear shift control (See VT207)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT207

COVER - gear shift control (VAC)

1шт.

Used on special mowing VAC 13 tractors with adjustable front axle after #5570000.

1шт.

VT2000

X

PLUG - interlock (.566 to .570" long)

2шт.

VT2006

X

SPRING - mesh lock

3шт.

VT2011

X

PLUNGER - reverse latch

1шт.

NSS

NOT SOLD SEPARAT

5/16" nut - hexagon castellated, U.N.F., S.F.

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 1/2" pin - cotter

1шт.

VT2012

X

SCREW - lock, shift fork (For VT3442 and VT3444 shift forks)

2шт.

NSS

NOT SOLD SEPARAT

SCREW - lock, shift fork (For VT3443 shift fork)

1шт.

VT2015

X

WIRE - lock

3шт.

VT2016

X

PIN - pivot, shift lever

1шт.

VT2017

X

COVER - dust, shift lever

1шт.

VT2019

SPRING - gear shift lever support

1шт.

VT2023

LEVER - gear shift (VAC, VA, VAH), Serial Range: -5570000

1шт.

VT3442

ROD

- shift, 1st and 3rd speeds

1шт.

NSS

NOT SOLD SEPARAT

ROD - shift, 1st and 2nd speeds (VAC)

1шт.

Used on special mowing VAC 13 tractors with adjustable front axle after #5570000.

1шт.

VT3443

ROD - shift, 2nd and 4th speeds

1шт.

NSS

NOT SOLD SEPARAT

ROD - shift, 3rd and 4th speeds (VAC)

1шт.

Used on special mowing VAC 13 tractors with adjustable front axle after #5570000.

1шт.

VT3444

ROD - shift, reverse

1шт.

VT3448

SPACER

- reverse shift rod

1шт.

VT3449

FORK - shift, 1st and 3rd speeds

1шт.

NSS

NOT SOLD SEPARAT

FORK - shift, 1st and 2nd speeds (VAC)

1шт.

Used on special mowing VAC 13 tractors with adjustable front axle after #5570000.

1шт.

VT3450

FORK - shift, 2nd and 4th speeds

1шт.

NSS

NOT SOLD SEPARAT

FORK - shift, 3rd and 4th speeds (VAC)

1шт.

Used on special mowing VAC 13 tractors with adjustable front axle after #5570000.

1шт.

VT3451

FORK - shift, reverse

1шт.

VT3452

X

GASKET - control cover

1шт.

VT4197

LEVER - gear shift (VAO)

1шт.

VT4913

X

BALL - steel, 3/8" diameter

3шт.

VT5381

LEVER - gear shift (See VT5436 for VAC14) (VAC), Start Serial: 5570000

1шт.

VT5436

LEVER - gear shift (VAC14 only) (See VT5381 for VAC11, 12 and 13) (VAC)

1шт.

VTA352

DIPSTICK ASSEMBLY

1шт.

153EB

SPRING - plunger reverse latch

1шт.
