Запчасти Case IH VAC12-SERIES (056) - CLUTCH PRESSURE PLATE AND LINING (06) - POWER TRAIN

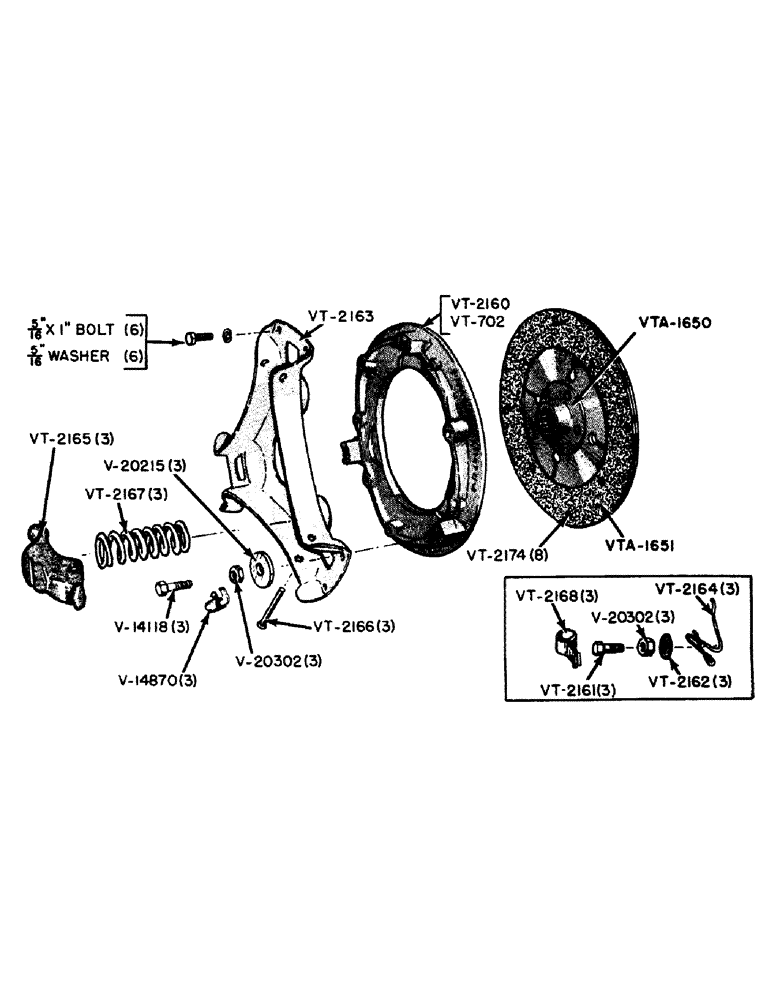

Схема запчастей Case IH VAC12-SERIES - (056) - CLUTCH PRESSURE PLATE AND LINING (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

V14118

SPRING

SCREW - adjusting (Use with VT702)

3шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

C14870

CLIP - clutch return (Use with VT702)

3шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

V20215

ADJUSTMENT ROD

WASHER - adjusting screw (Use with VT702)

3шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

V20302

NUT - hexagon jam, adjusting nut

3шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

VT702

PLATE - pressure (See VT2160)

1шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

VT2160

X

PLATE - pressure (See VT702)

1шт.

VT2161

SCREW - adjusting (Use with VT2160)

3шт.

VT2162

X

WASHER - adjusting screw (Use with VT2160)

3шт.

VT2163

BRACKET

1шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

VT2164

SPRING - return (Use with VT2160)

3шт.

VT2165

LEVER - clutch

3шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

VT2166

PIN - lever pivot

3шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

VT2167

SPRING - lever

3шт.

Part of Pressure Plate Assy., P/N A30576

1шт.

VT2168

CUSHION - spring (Use with VT2160)

3шт.

VT2174

RIVET - clutch lining (See VTA1651)

8шт.

VTA11

PLATE - pressure assembly (Use VTA4706)

1шт.

VTA12

PLATE - friction assembly (Use VTA1650)

1шт.

A44512

PLATE

- friction assembly ( replaced VTA1650 )

1шт.

A30292

KIT

- clutch linings (Includes linings and ten rivets) (replaced VTA1651)

1шт.

A30576

PLATE

- pressure assembly (Includes PN's V14118, C14870, V20215, V20302, VT702, VT2163, VT2165, VT2166, VT2167) (replaced VTA4706)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" bolt, hexagon head, U.N.C. with lockwasher

6шт.

Выбрано товаров: 30
