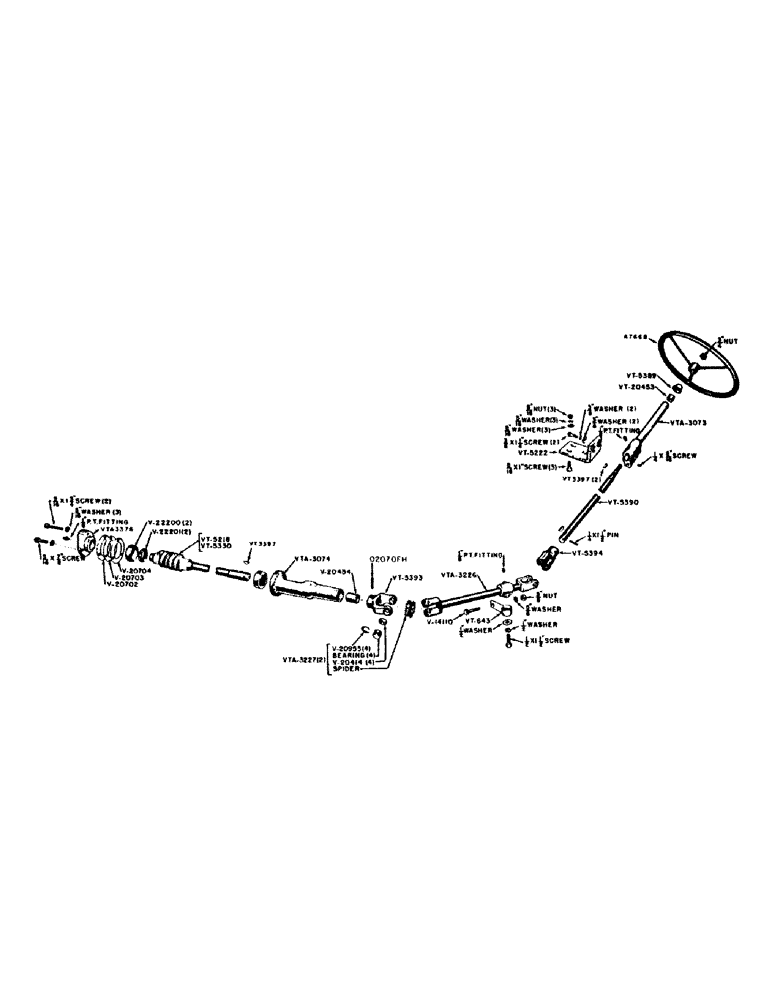

Запчасти Case IH VAC12-SERIES (084) - STEERING GEAR WORM AND SHAFT, VAC TRACTORS 5654218 THRU 5654693 & 5655598 THRU 5657999 (05) - STEERING

A7668

WHEEL

STEERING (17-3/8" O.D.)

1шт.

O2070FH

X

ROLL PIN (1/4" x 1-1/2") VT5261 yoke to worm shaft

1шт.

V14110

BOLT - mounting bracket, lower bearing

1шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex nut and lockwasher

1шт.

V20414

WASHER - cork (See VTA3227)

8шт.

V20453

TRACK ROD END ASSY

BUSHING - upper bearing and extension

1шт.

V20454

BUSHING - steering worm sleeve

1шт.

V20702

SHIM

- plastic (Green .003")

1-3шт.

V20703

SPARE PART

SHIM - plastic (Blue .005")

1-3шт.

V20704

SHIM - plastic (Brown .010")

4шт.

V20955

X

SNAP RING (See VTA3227)

8шт.

V22200

RACE - ball bearing (N.D. #909621)

2шт.

V22201

BALL BEARING ASSEMBLY (N.D. #909721)

2шт.

VT635

SLEEVE - steering worm (Use VTA3074)

1шт.

VT636

CAP - sleeve, worm housing (Use VTA3376)

1шт.

VT642

BEARING - lower steering shaft (Use VTA3226)

1шт.

VT643

BRACKET - mounting, lower bearing

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex. hd. bolt w/lockwasher and plain washer

1шт.

VT644

BEARING - steering shaft (Use VTA3073, VTA3273 or VTA3401)

1шт.

VT700

CAP - sleeve, worm housing (Use VTA3376)

1шт.

VT715

BEARING - steering shaft (Use VTA3401)

1шт.

VT3397

KEY - Woodruff, steering wheel and connecting yoke

3шт.

VT5218

WORM - steering (Single and dual wheel) See VT5330

1шт.

VT5222

BRACKET - mounting upper bearing and extension

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex. hd. bolt w/hex nut, lockwasher and plain washer

3шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher and plain washer

2шт.

VT5330

WORM - steering (See VT5218)

1шт.

VT5389

SEAL - dust, steering shaft

1шт.

VT5390

SHAFT - upper steering

1шт.

VT5393

YOKE - connecting, lower steering, Serial Range: shaft-worm

1шт.

VT5394

YOKE - connecting, upper shaft to lower shaft yoke

1шт.

VTA3073

UPPER BEARING AND EXTENSION (Includes V20453 bushing) VAC11, 12 and 13

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/16" N.C. slotted hd. cup pt. set screw

1шт.

VTA3074

SLEEVE - steering worm (Includes V20454 bushing)

1шт.

VTA3226

SHAFT - lower steering (Includes yokes and bearing)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

VTA3227

X

UNIVERSAL JOINT SPIDER AND BEARING KIT (Includes 1-spider, 4-bearings, 4-V20414 washers and 4-V20955 snap rings)

2шт.

VTA3376

CAP - sleeve, worm housing (Includes 1/8" str. fitting, Lincoln #5000)

1шт.
