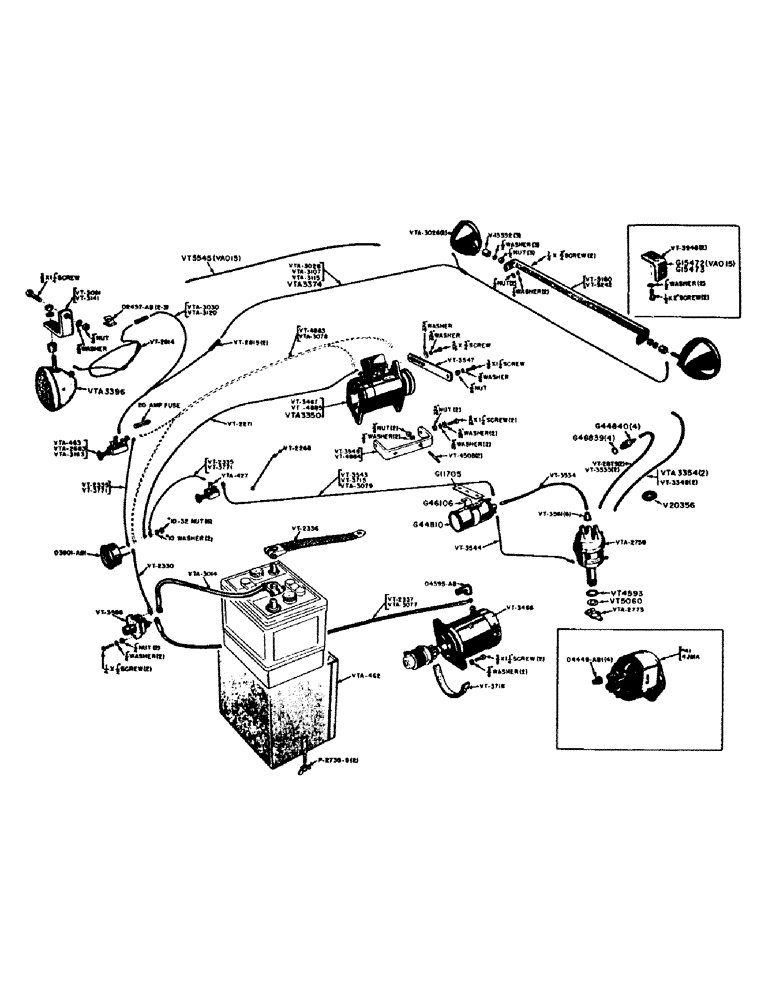

Запчасти Case IH VAC12-SERIES (040) - ELECTRICAL LIGHTING, TRACTOR #5400000 AND AFTER (04) - ELECTRICAL SYSTEMS

G15472

BRACKET - headlight, R.H. (VAO15)

1шт.

G15473

BRACKET - headlight, L.H. (VAO15)

1шт.

O2457AB

CLIP - cable, tail lamp

3шт.

V13552

X

BUSHING - lamp mounting

3шт.

VT2814

WIRE - rear light (45" long)

1шт.

VT2815

X

CONNECTOR - light switch cable to light cables

2шт.

VT3091

BRACKET - rear light (VAC 14, VAO15) See VT3141

1шт.

VT3141

BRACKET - rear light (See VT3091)

1шт.

VT3948

BRACKET - head light (VAO) See G15472 and G15473

2шт.

NSS

NOT SOLD SEPARAT

1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

VT5180

BRACKET - head light, Serial Range: -5570000

1шт.

VT5242

BRACKET - head light, Start Serial: 5570000

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and plain washer

2шт.

VT5545

WIRE - extension, head light (VAO15)

1шт.

A30901

SWITCH

- light, See VTA463 and VTA3163 (replaced VTA2683), Serial Range: 5060679-5654122

1шт.

VTA3026

LIGHT - head, R.H. and L.H.

2шт.

NSS

NOT SOLD SEPARAT

1/2" N.C. hex. nut and lockwasher (Cadmium plated)

2шт.

VTA3028

WIRE - head ligh, See VTA 3107 and VTA3115, Serial Range: -5570000

1шт.

VTA3030

CABLE - light switch to light cables, See VTA3120, Serial Range: -5570000

1шт.

VTA3107

CABLE - head light, See VTA3028 and VTA3115, Start Serial: 5570000

1шт.

VTA3115

CABLE - head light (VAO) See VTA3374

1шт.

VTA3120

CABLE - light switch to light cables (VAC, See VTA3030, Start Serial: 5570000

1шт.

VTA3163

X

SWITCH - light, See VTA463 and VTA2683, Start Serial: 5654122

1шт.

VTA3374

CABLE - head light (VAO15) See VTA3115

1шт.

VTA3396

X

LIGHT - combination flood and tail

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.C. hex. nut and lockwasher (Cadmium plated)

1шт.
