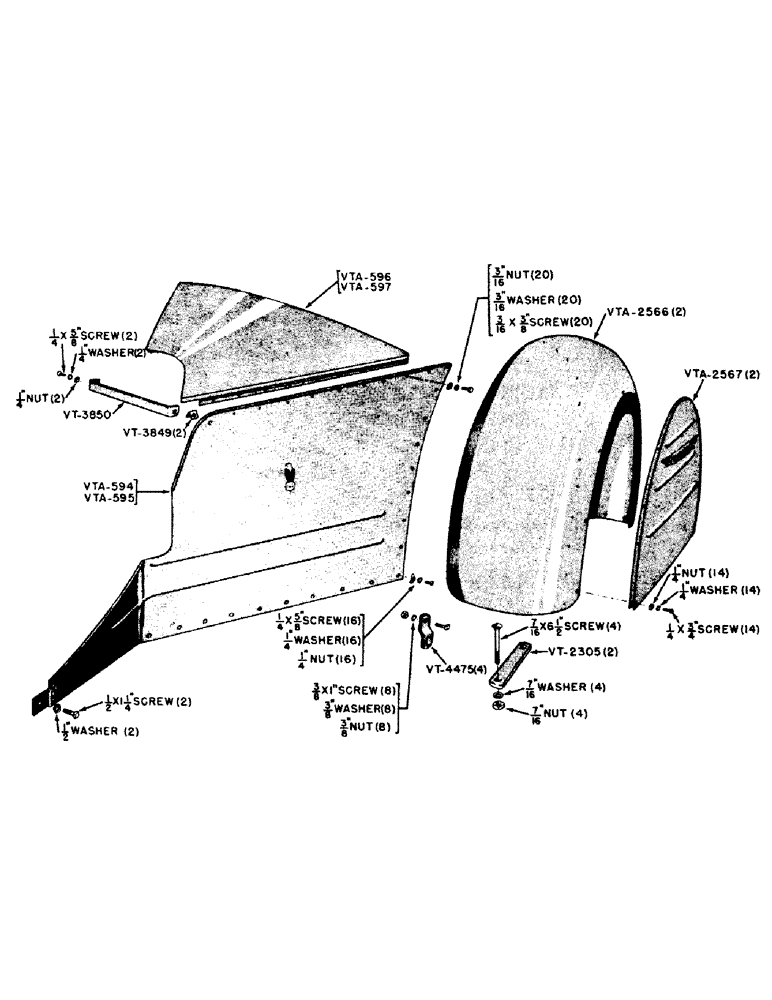

Запчасти Case IH VAC12-SERIES (158) - VAO ORCHARD DEFLECTORS AND FENDERS (09) - CHASSIS

VT2305

CLAMP - fender

2шт.

NSS

NOT SOLD SEPARAT

7/16" x 6-1/2" bolt - carriage, U.N.C. w/square nut and lockwasher

4шт.

VT3849

CLIP - side support

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. w/sq. nut and lockwasher

2шт.

VT3850

SUPPORT - side

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. w/sq. nut and lockwasher

2шт.

VT4475

STRAP - tie down

4шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

8шт.

VTA594

DEFLECTOR - lower, right-hand

1шт.

VTA595

DEFLECTOR - lower, left-hand

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C. with lockwasher

16шт.

NSS

NOT SOLD SEPARAT

1/4" nut - wing, U.N.C.

16шт.

VTA596

DEFLECTOR - upper, right-hand

1шт.

VTA597

DEFLECTOR - uppper, left-hand

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 3/8" screw - machine, round head, U.N.C. w/sq. nut and lockwasher

20шт.

VTA2566

FENDER - orchard, crown type

2шт.

VTA2567

CLOSURE - fender

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - machine, round head, header point, U.N.C. w/sq. nut and lockwasher

14шт.
