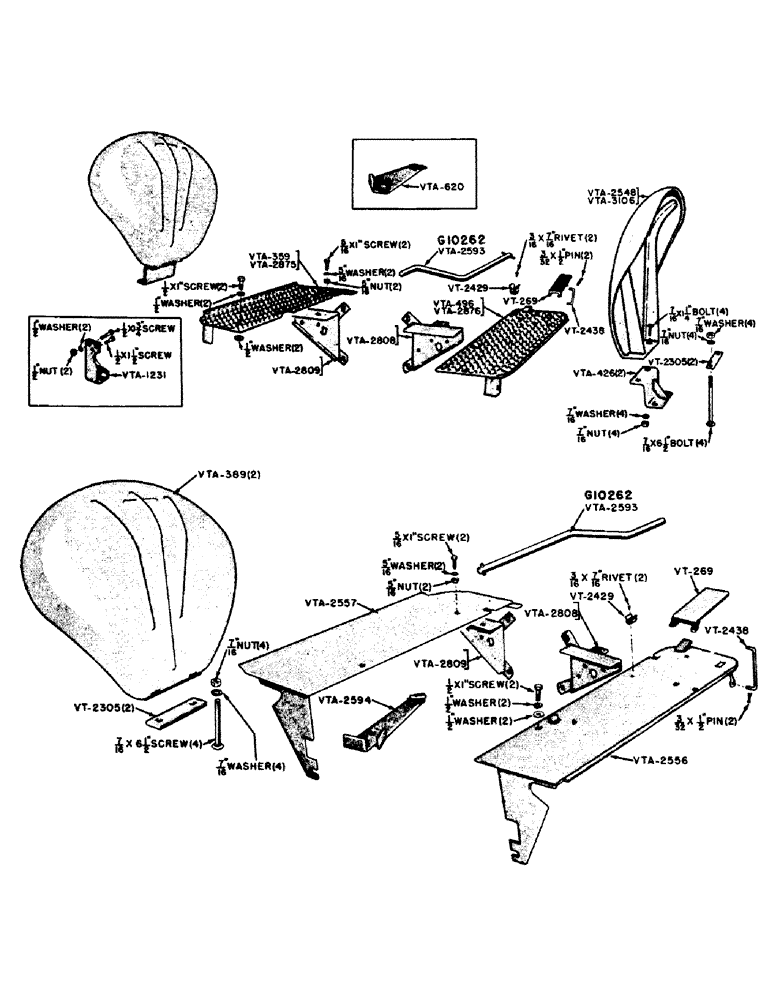

Запчасти Case IH VAC12-SERIES (154) - FENDERS, STEP PLATES AND CRANK, VAC, VA, VAH (09) - CHASSIS

G10262

CRANK - starting (VAH) See VTA2593 (VAC)

1шт.

O2089FH

X

ROLL PIN - starting crank (3/8" x 1-3/4")

1шт.

VT269

PEDAL - accelerator

1шт.

VT2305

CLAMP - fender

2шт.

NSS

NOT SOLD SEPARAT

7/16" x 6-1/2" bolt - carriage, U.N.C. with hex. nut and lockwasher

4шт.

VT2429

CLIP - spring, crank holder (VAC and VA), Start Serial: 5370499

1шт.

VT2429

CLIP - spring, crank holder (VAH), Start Serial: 5369999

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 7/16" rivet - flat head

2шт.

VT2438

ROD - foot feed

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 1/2" pin - cotter

2шт.

VTA359

PLATE - step, left-hand (See VTA2875) (VAC, VA), Serial Range: -5370500

1шт.

VTA389

FENDER (VAH)

2шт.

VTA426

ADAPTER - fender (VAC, VA)

2шт.

NSS

NOT SOLD SEPARAT

7/16" x 1-1/4" bolt - carriage, U.N.C. with hex. nut and lockwasher (VAC, VA)

4шт.

VTA496

PLATE - step, right-hand (See VTA2876) (VAC, VA), Serial Range: -5370500

1шт.

VTA620

HOLDER - crank (VAC, VA), Serial Range: -5370500

1шт.

VTA1231

STEP - tractor (Machinery item) (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher (VAC, VA)

1шт.

VTA2548

FENDER (VAC) (See VTA3106) (VAC, VA), Serial Range: -5570000

2шт.

VTA2556

PLATE - step, right-hand (VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with hex nut and lockwasher (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" screw - cap, hex. head, U.N.C. with lockwasher (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - plain, S.A.E. standard (VAH)

1шт.

VTA2557

PLATE - step, left-hand (VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" screw - cap, hex. head, U.N.C. with lockwasher (VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - plain, S.A.E. standard (VAH)

1шт.

VTA2593

CRANK (VAC except single front wheel) See G10262 (Includes O2089FH) (VAC, VA)

1шт.

VTA2594

HOLDER - crank (VAH), Serial Range: -5370000

1шт.

VTA2808

SUPPORT - step plate, right-hand (See VTA490), Serial Range: -5370499

1шт.

VTA2809

SUPPORT - step plate, left-hand (See VTA491), Serial Range: -5370499

1шт.

VTA2875

PLATE - step, left-hand (See VTA359) (VAC, VA), Serial Range: -5370499

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" screw - cap, hex. head, U.N.C. with lockwasher (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - plain, S.A.E. standard (VAC, VA)

1шт.

VTA2876

PLATE - step, right-hand (See VTA496) (VAC, VA), Serial Range: -5370499

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" screw - cap, hex. head, U.N.C. with lockwasher (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - plain, S.A.E. standard (VAC, VA)

1шт.

VTA3106

FENDER (VAC), Start Serial: 5570000

2шт.
