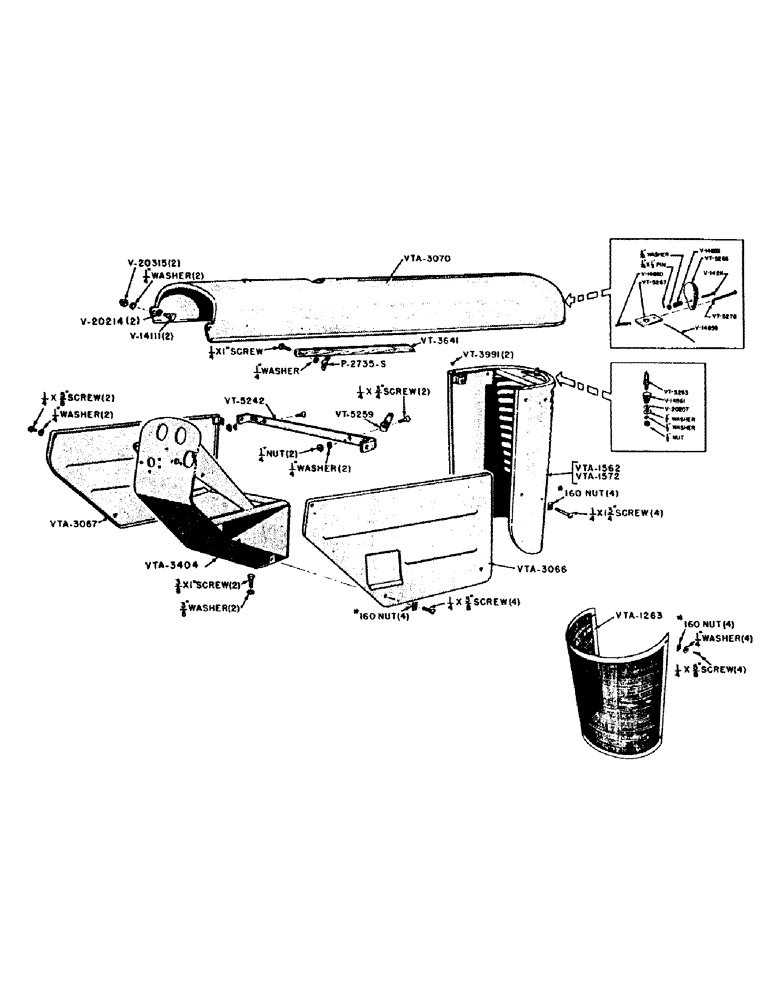

Запчасти Case IH VAC12-SERIES (050) - HOOD, GRILLE AND SIDE SHEETS, VAC TRACTORS AFTER #5570000 (09) - CHASSIS

P2735S

X

NUT - wing

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" screw - machine, round head, U.N.C. and lockwasher

1шт.

V14111

BOLT - hood pivot

2шт.

NSS

NOT SOLD SEPARAT

1/4" washer - lock

2шт.

V14211

RIVET - drilled, hood release lever

1шт.

NSS

NOT SOLD SEPARAT

1/16" x 1/2" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

3/16" washer - plain, S.A.E. standard

1шт.

V14853

X

SPRING - release lever

1шт.

V14859

SPRING - latch hood

1шт.

V14860

X

SPRING - return, hood latch

1шт.

V14861

SPRING - hood latch bumper

1шт.

V20207

X

WASHER - spacer

1шт.

V20214

WASHER

- plain 3/8"

2шт.

V20315

BOLT

NUT - acorn

2шт.

VT3641

SUPPORT - hood

1шт.

VT3991

CUSHION - hood (VAO15 also)

2шт.

VT5242

BRACKET - head light and side sheet

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" screw - machine, round head, U.N.C. with square nut and lockwasher

2шт.

VT5259

BRACE - side sheet (VAO15 also)

1шт.

VT5263

STUD - grille and hood latch

1шт.

NSS

NOT SOLD SEPARAT

1/2" nut - hexagon jam, U.N.F., S.F. light series

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - plain, S.A.E. standard

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - Shakeproof, E.T.

1шт.

VT5266

LEVER - hood release

1шт.

VT5267

LATCH - hood

1шт.

VT5278

HOOK - latch, hood lever

1шт.

VTA1263

GRILLE SCREEN ATTACHMENT (Machinery item)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, round head, U.N.C.

4шт.

NSS

NOT SOLD SEPARAT

1/4" washer - plain, S.A.E. standard

4шт.

NSS

NOT SOLD SEPARAT

#160 nut - speed

4шт.

VTA1562

GRILLE - radiator (Complete) (Dual and adjustable front wheels)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" screw - machine, round head, U.N.C.

4шт.

NSS

NOT SOLD SEPARAT

#160 nut - speed

4шт.

VTA1572

GRILLE - radiator (Complete) (Single front wheel only)

1шт.

VTA3066

SIDE SHEET - right-hand (VAO15 also)

1шт.

VTA3067

SIDE SHEET - left- hand

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - self- tapping, hex. head, with lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" screw - machine, hex. head, U.N.C.

4шт.

NSS

NOT SOLD SEPARAT

#160 nut - speed

4шт.

VTA3070

HOOD ASSEMBLY (Complete)

1шт.

VTA3404

INSTRUMENT PANEL ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

2шт.
