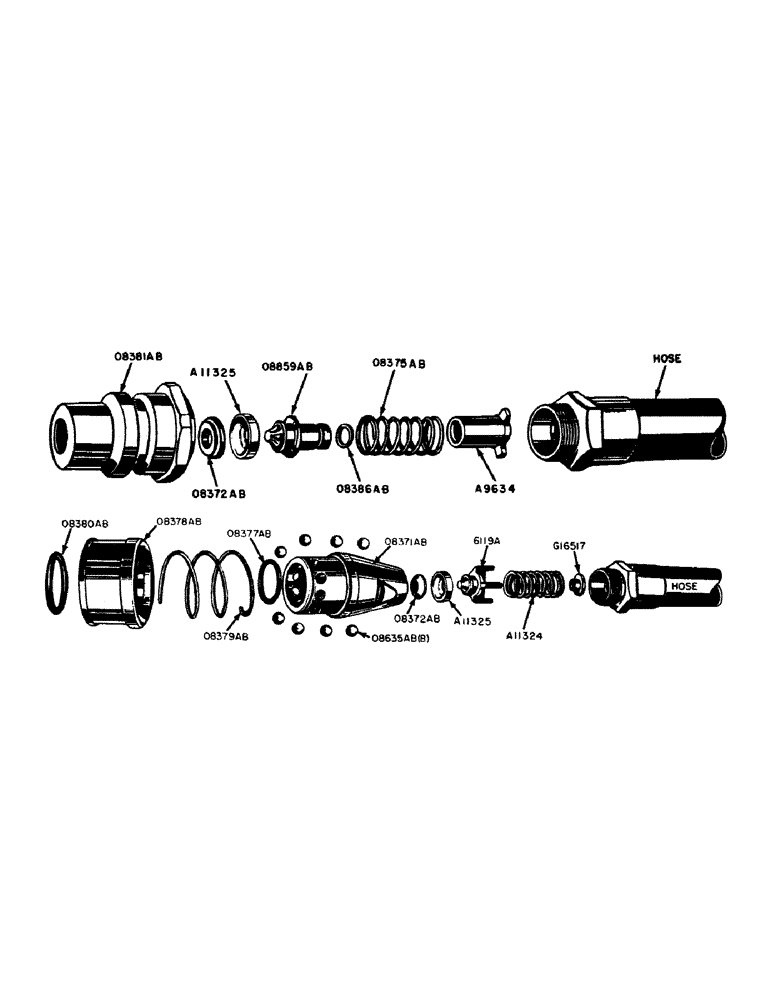

Запчасти Case IH VAC12-SERIES (143) - 4025AA BREAK-AWAY SELF-SEALING COUPLING PLUG (08) - HYDRAULICS

A9631ASY

SPARE PART

- coupling plug piston

1шт.

A11325

X

RETAINER - for O8372AB seal

1шт.

O8372AB

X

SEAL - coupling piston

1шт.

O8375AB

X

SPRING - coupling piston

1шт.

O8381AB

X

BODY - coupling plug male

1шт.

O8386AB

X

"O" RING - coupling plug piston sleeve

1шт.

O8859AB

X

PISTON - coupling plug

1шт.

4025AA

X

PLUG - break-away, complete (Includes all items above)

2шт.

A11324

SPRING

- coupling socket piston, 4026AA break-away self-sealing

1шт.

A11325

X

RETAINER - for O8372AB seal, 4026AA break-away self-sealing coupling socket

1шт.

G16517

SPACER

- control, hydraulic flow (Not included in 4026AA assembly), 4026AA break-away self-sealing coupling socket

1шт.

6119A

X

PISTON - coupling socket, 4026AA break-away self-sealing

1шт.

O8371AB

BODY - female coupling socket, 4026AA break-away self-sealing

1шт.

O8372AB

X

SEAL - female piston, 4026AA break-away self-sealing coupling socket

1шт.

O8377AB

X

"O" RING - coupling socket body, 4026AA break-away self-sealing

1шт.

O8378AB

X

SLEEVE - coupling socket body ball retaining, 4026AA break-away self-sealing

1шт.

O8379AB

X

SPRING - coupling socket body ball retaining sleeve, 4026AA break-away self-sealing

1шт.

O8380AB

X

RING - snap, coupling socket rubber, 4026AA break-away self-sealing

1шт.

O8635AB

X

BALL - coupling socket locking, 4026AA break-away self-sealing

8шт.

4026AA

X

SOCKET - break-away, complete (Includes all items above), 4026AA self-sealing coupling socket

2шт.
