Запчасти Case IH VAC11-SERIES (120) - HYDRAULIC PUMP AND LINES FOR DOUBLE ACTING CONTROL AND REMOTE CYLINDER VAC, VA, VAO (08) - HYDRAULICS

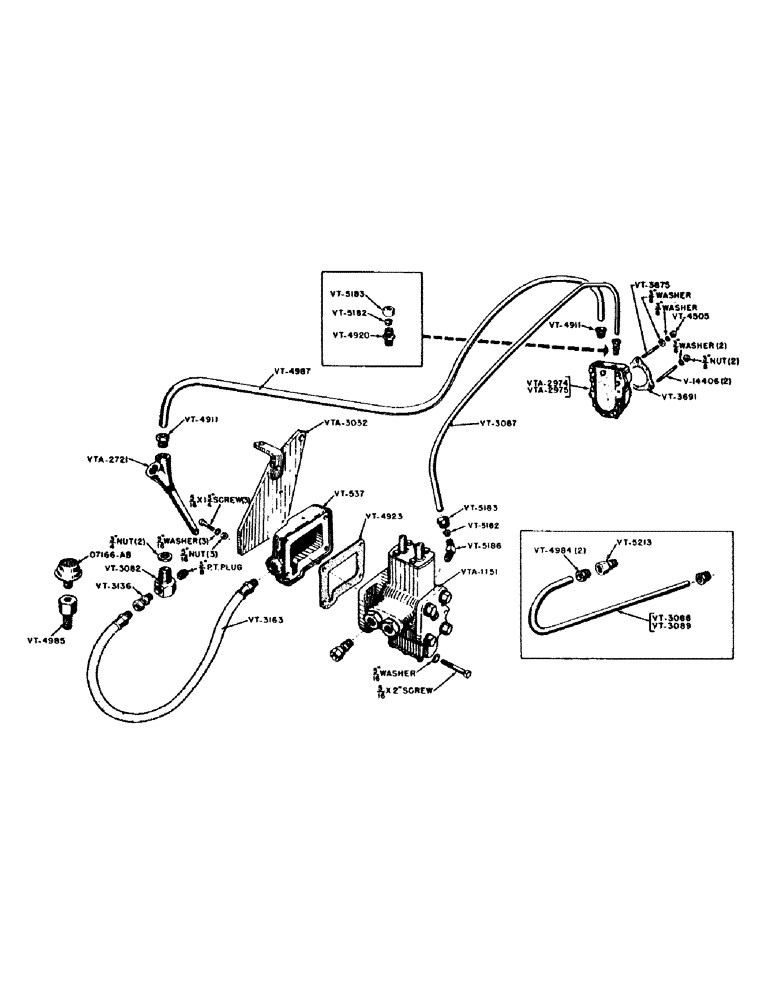

Схема запчастей Case IH VAC11-SERIES - (120) - HYDRAULIC PUMP AND LINES FOR DOUBLE ACTING CONTROL AND REMOTE CYLINDER VAC, VA, VAO (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

O7166AB

X

BREATHER

1шт.

V14406

STUD - 3/8" x 5-1/4"

2шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C. with lockwasher

2шт.

VT537

BASIN - catch

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-3/4" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 2" screw - cap, hex. head, U.N.C. with lockwasher

3шт.

VT3082

TEE - oil return and drain

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - conduit lock

1шт.

NSS

NOT SOLD SEPARAT

3/8" P.T. plug - pipe, square head

1шт.

VT3087

LINE - pressure

1шт.

VT3088

LINE - return (VAC tractors before #5150000) (Use VT3136 and VT3163)

1шт.

VT3089

LINE - return (VAC tractors after #5149999) (Use VT3136 and VT3163)

1шт.

VT3136

UNION - adapter, 3/8" P.T. (Use with VT3163)

1шт.

VT3163

HOSE - hydraulic (Return line) (See VT3088 and VT3089)

1шт.

VT3675

X

STUD - 3/8" x 1-1/2" (Magneto ignition only)

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - Shakeproof, I.T.

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - plain, S.A.E. standard

1шт.

VT3691

X

GASKET - pump mounting

1шт.

VT4505

NUT - hexagon, U.N.C. (For VT3675) (Magneto ignition only)

1шт.

VT4911

NUT - tube

2шт.

VT4920

FITTING - connector

1шт.

VT4923

X

GASKET

1шт.

VT4984

NUT - tube (Used with VT3088 and VT3089)

2шт.

VT4985

ADAPTER - breather

1шт.

VT4987

LINE - intake

1шт.

VT5182

SLEEVE - coupling

2шт.

VT5183

NUT - coupling

2шт.

VT5186

BODY - coupling, 45 degrees

1шт.

VTA1151

CONTROL VALVE, double acting

1шт.

VTA2721

FITTING ASSEMBLY - inlet

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - conduit lock

1шт.

VTA2953

BODY - connector (Used with VT3088 and VT3089) (Includes VT4984 and VT5213)

1шт.

VTA2974

X

HYDRAULIC PUMP ASSEMBLY (Distributor ignition) (Engines after #A4700000)

1шт.

VTA2975

HYDRAULIC PUMP ASSEMBLY (Magneto ignition) (Engines before #A4700000)

1шт.

VTA3032

MOUNTING PLATE ASSEMBLY

1шт.

Выбрано товаров: 35
