Запчасти Case IH VAC11-SERIES (116) - VTA2744 CYL.1-3/4"(TRAC#5270721TO#5370000) VTA731 CYL 1-3/4"(TRAC 4928452 - 5270721) FOR VTA2744 CYL (08) - HYDRAULICS

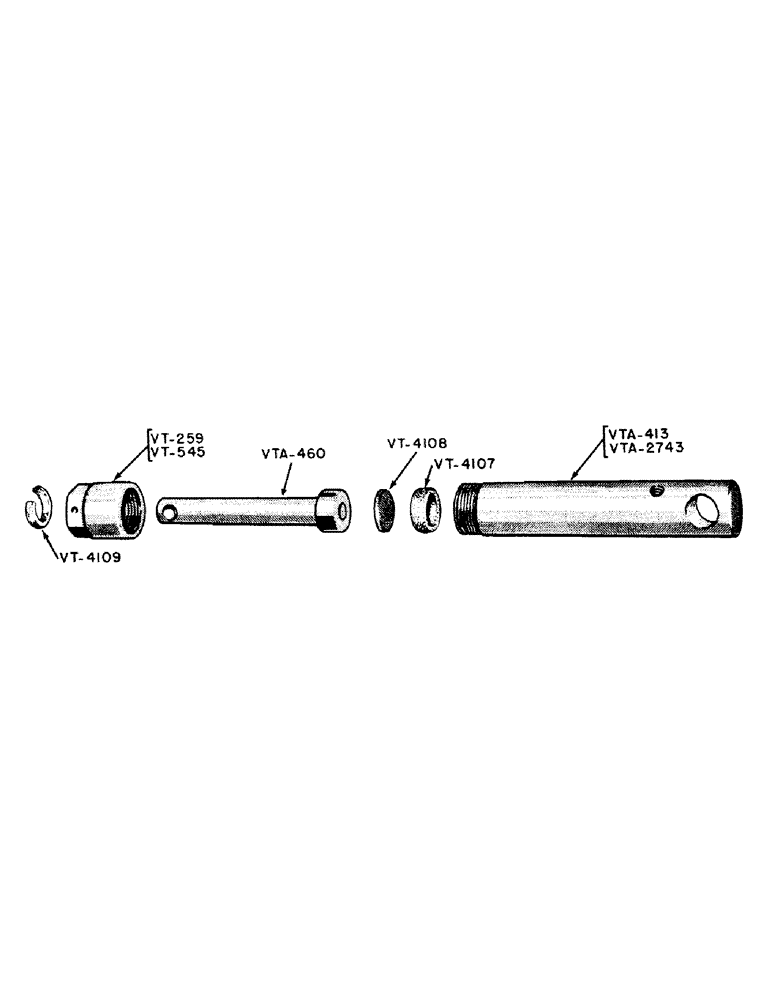

Схема запчастей Case IH VAC11-SERIES - (116) - VTA2744 CYL.1-3/4"(TRAC#5270721TO#5370000) VTA731 CYL 1-3/4"(TRAC 4928452 - 5270721) FOR VTA2744 CYL (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

VT545

CAP - cylinder (1-3/4" - 12 thread)

1шт.

VT4107

X

CUP - packing

1шт.

VT4108

X

WASHER - packing

1шт.

VT4109

X

WASHER - felt

1шт.

VTA460

SHAFT - cylinder

1шт.

VTA2743

TUBE - cylinder (1-3/4" - 12 thread)

1шт.

VTA2744

CYLINDER - complete

1шт.

VT259

CAP - cylinder (1-3/4" - 20 thread), parts for VTA731 cylinder

1шт.

VT4107

X

CUP - packing, parts for VTA731 cylinder

1шт.

VT4108

X

WASHER - packing, parts for VTA731 cylinder

1шт.

VT4109

X

WASHER - felt, parts for VTA731 cylinder

1шт.

VTA413

TUBE - (1-3/4" - 20 thread) (Use VT545 cap and VTA2743 tube), parts for VTA731 cylinder

1шт.

VTA460

SHAFT - tube, parts for VTA731 cylinder

1шт.

VTA731

CYLINDER - complete (Use VTA2744), parts for VTA731 cylinder

1шт.

Выбрано товаров: 14
