Запчасти Case IH VAC11-SERIES (114) - BELT PULLEY AND HYDRAULIC PUMP HOUSING (08) - HYDRAULICS

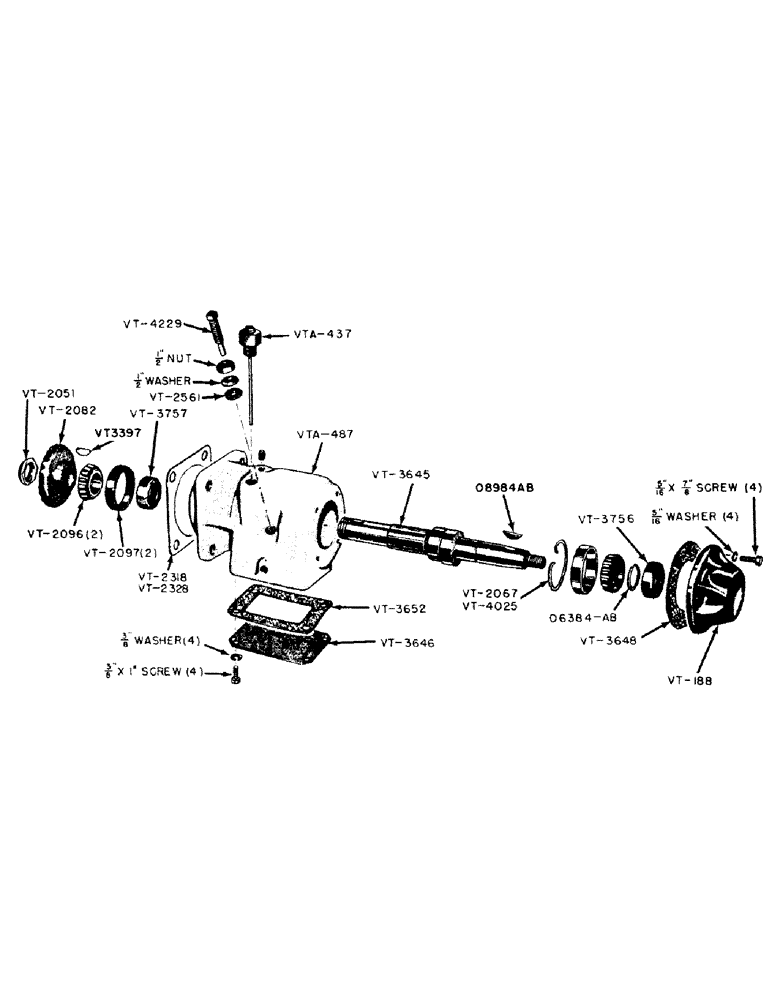

Схема запчастей Case IH VAC11-SERIES - (114) - BELT PULLEY AND HYDRAULIC PUMP HOUSING (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

O6384AB

SNAP RING - drive shaft

1шт.

O8984AB

X

KEY - Woodruff, Serial Range: pulley-shaft

1шт.

VT184

HOUSING - belt pulley and pump (Use VTA487)

1шт.

VT188

RETAINER - oil seal

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT268

HOUSING - belt pulley and pump (Use VTA487)

1шт.

VT2051

NUT - adjusting

1шт.

VT2067

X

SNAP RING (Tractors before #4928018) (See VT4025)

1шт.

VT2082

GEAR - belt pulley, 25 teeth

1шт.

VT2096

X

CONE - bearing (Timken #14137A)

2шт.

VT2097

X

CUP - bearing (Timken #14276)

2шт.

VT2318

SHIM - (.005) housing to torque tube

1шт.

VT2328

SHIM - (.003) housing to torque tube

1шт.

VT2561

SEAL - felt

1шт.

VT3397

KEY - Woodruff, Serial Range: gear-shaft

1шт.

VT3645

SHAFT - belt pulley and pump drive

1шт.

VT3646

COVER - for closing pump flange

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VT3648

GASKET - oil seal retainer

1шт.

VT3652

X

GASKET - pump flange cover

1шт.

VT3756

X

OIL SEAL - front

1шт.

VT3757

SEAL

OIL SEAL - rear

1шт.

VT4025

SNAP RING (Tractors after #4928107) (See VT2067)

1шт.

VT4229

BOLT - pump lock out

1шт.

NSS

NOT SOLD SEPARAT

1/2" nut - hexagon jam; U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

1/2" washer - plain, S.A.E. standard

1шт.

VTA437

GAGE - level and breather

1шт.

VTA487

HOUSING ASSEMBLY - with bearing cups and lock out screw

1шт.

NSS

NOT SOLD SEPARAT

1/8" plug - pipe, standard square head

1шт.

Выбрано товаров: 29
