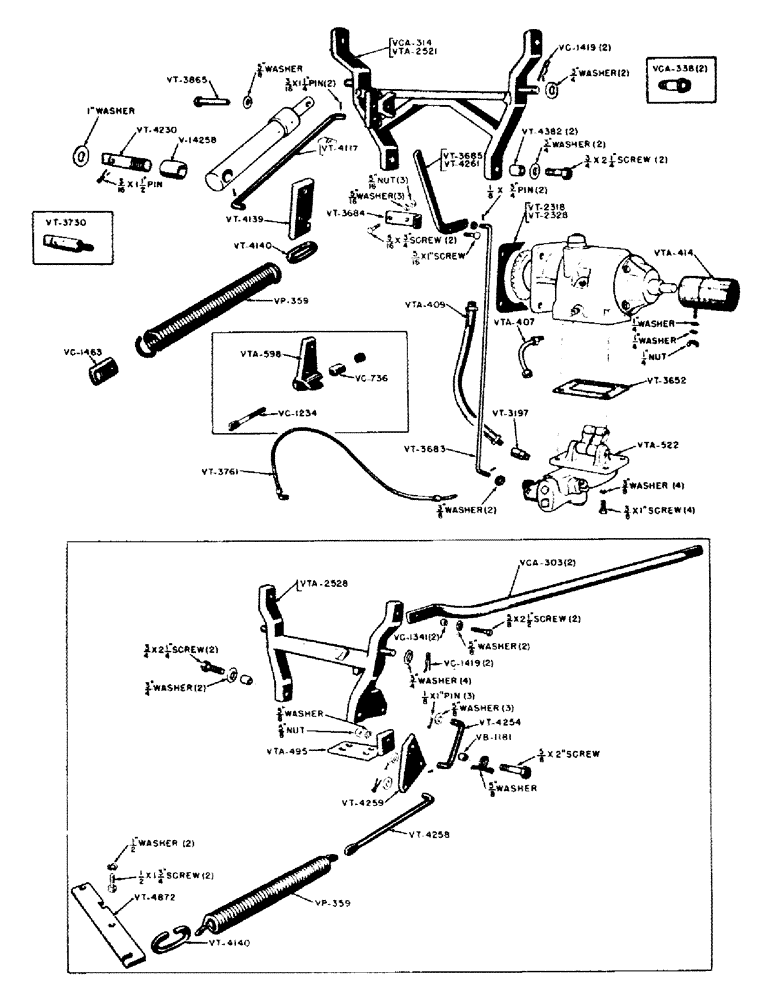

Запчасти Case IH VAC11-SERIES (112) - HIGH PRESSURE HYDRAULIC LIFT, VAC, VA, VAO, VAH (08) - HYDRAULICS

CT761S

SPACER - ram pivot stud (VAO)

1шт.

V14258

SPACER - to replace ram on stud (VAH), Serial Range: 5370000-5450500

1шт.

VB1181

BUSHING - pivot plate (VAO)

1шт.

VC736

TRUNNION - retracting spring (VAC, VA), Serial Range: -4928801

1шт.

VC1234

EYEBOLT (VAC, VA), Serial Range: -4928801

1шт.

VC1341

BUSHING - 7/8" O.D. x 29/32" long (VAO)

2шт.

VC1419

X

PIN - spring, yoke pins

2шт.

VC1463

HOLDER - spring (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher (VAC, VA, VAH)

1шт.

VCA303

LINK - lift (VAO)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/2" screw - cap, hex. head, U.N.C. with hex. nut and 1/washer (VAO)

2шт.

NSS

NOT SOLD SEPARAT

5/8" washer - plain, S.A.E. standard (VAO)

2шт.

VCA314

YOKE ASSEMBLY (VA and VAC dual wheel) (VAC single wheel) (See VTA2521) (VAC, VA), Serial Range: -4829409

1шт.

VCA314

YOKE ASSEMBLY (VAC single wheel) (See VTA2521) (VAC, VA), Serial Range: -4930496

1шт.

VCA338

YOKE PIVOT BOLT ASSEMBLY (VAC, VA), Serial Range: -4930634

1шт.

VP359

SPRING - retractor

1шт.

VT2318

SHIM - (.005) housing to torque tube

1шт.

VT2328

SHIM - (.003) housing to torque tube

1шт.

VT3197

CONNECTOR - union 1/4" x 1/4", for VTA409, Serial Range: hose-pump

1шт.

VT3652

X

GASKET -, Serial Range: pump-housing

1шт.

VT3683

ROD - control

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

3/8" washer - plain, S.A.E. standard

2шт.

VT3684

BRACKET - control lever

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher

2шт.

VT3685

LEVER - control (See VT4261) (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher (VAC, VA, VAH)

1шт.

VT3730

STUD - ram mounting (See VT4230) (VAC, VA), Serial Range: -4930634

1шт.

VT3761

LINE - bleeder, ram (VAC, VA), Serial Range: -4928452

1шт.

VT3865

RIVET - drilled, 5/8" x 2-5/8"

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

5/8" washer - plain, S.A.E. standard

1шт.

VT4117

LINK - retracting (VAC, VA, VAH)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" pin - cotter (VAC, VA, VAH)

2шт.

VT4139

ARM - spring pivot (VAC, VA, VAH)

1шт.

VT4140

LINK - spring holding

1шт.

VT4230

STUD - ram mounting (See VT3730), Start Serial: 4930633

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/2" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

1" washer - plain, S.A.E. standard

1шт.

VT4254

LINK - pivot plate to yoke (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" pin - cotter (VAO)

2шт.

NSS

NOT SOLD SEPARAT

5/8" washer - plain, S.A.E. standard (VAO)

2шт.

VT4258

LINK - spring connecting (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" pin - cotter (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/8" washer - plain, S.A.E. standard (VAO)

1шт.

VT4259

PLATE - pivot (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/8" washer - plain, S.A.E. standard (VAO)

1шт.

VT4261

LEVER - control (See VT3685) (VAO)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher (VAO)

1шт.

VT4382

BUSHING - yoke mounting, Start Serial: 4930632

2шт.

VT4872

CONNECTION - spring, front (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" screw - cap, hex. head, U.N.C. with lockwasher (VAO)

2шт.

VTA407

LINE - oil suction

1шт.

VTA409

HOSE - high pressure (Includes union)

1шт.

VTA414

SHIELD - pulley shaft

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 nut - wing, standard with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/4" washer - wrot

1шт.

VTA495

BRACKET ASSEMBLY - pivot (VAO)

1шт.

VTA522

PUMP ASSEMBLY - hydraulic (See figure 115)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VTA2521

YOKE ASSEMBLY (VA and VAC dual wheel) (See VAV314) (VAC, VA, VAH), Start Serial: 4829408

1шт.

VTA2521

YOKE ASSEMBLY (VAC single wheel) (See VAV314) (VAC, VA, VAH), Start Serial: 4930495

1шт.

VTA2528

YOKE ASSEMBLY (VAO)

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/4" screw - cap, hex. head, U.N.C.

2шт.

NSS

NOT SOLD SEPARAT

3/4" washer - plain, S.A.E. standard

4шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY (See figure 114)

1шт.

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY (See figures 115 and 116)

1шт.
