Запчасти Case IH VAC11-SERIES (150) - VAH P.T.O. (06) - POWER TRAIN

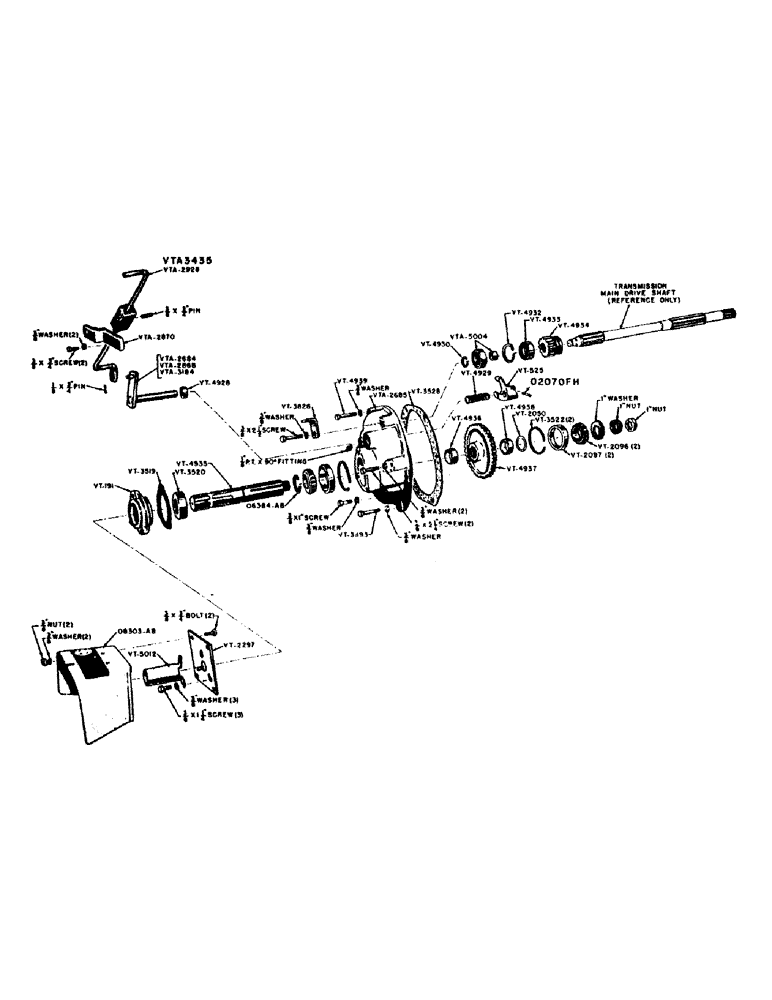

Схема запчастей Case IH VAC11-SERIES - (150) - VAH P.T.O. (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

O6384AB

SNAP RING

1шт.

O8303AB

X

GUARD - power take-off

1шт.

O2070FH

X

ROLLPIN - shifter (1/4" x 1-1/2")

1шт.

VT191

X

RETAINER - oil seal

1шт.

VT524

HOUSING - power take-off (Use VTA2685)

1шт.

VT525

FORK - shifter

1шт.

VT2050

X

WASHER - spring

1шт.

VT2096

X

CONE - bearing (Timken #14137A)

2шт.

VT2097

X

CUP - bearing (Timken #14276)

2шт.

VT2297

X

PLATE - mounting, guard

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" bolt - carriage with hex. nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher

3шт.

VT3519

X

GASKET - oil seal retaining

1шт.

VT3520

X

OIL SEAL - outer

1шт.

VT3522

X

SNAP RING - drive shaft bearing

2шт.

VT3528

X

GASKET - rear cover

1шт.

VT3826

STOP - lever (Use with VTA2868)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

VT3993

BOLT - ground body, 3/8" x 1"

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - lock

1шт.

VT4928

OIL SEAL - shifter lever

1шт.

VT4929

SPRING - shifter

1шт.

VT4930

SNAP RING - pilot bearing

1шт.

VT4932

RING

SNAP RING - pilot bearing

1шт.

VT4933

SEAL - grease, pilot bearing

1шт.

VT4934

GEAR - drive

1шт.

VT4935

SHAFT - power take-off

1шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon jam, U.N.F., S.F. light series

1шт.

NSS

NOT SOLD SEPARAT

1" nut - pal

1шт.

NSS

NOT SOLD SEPARAT

1" washer - plain, S.A.E. standard

1шт.

VT4936

SPACER - gear rear

1шт.

VT4937

GEAR - driven

1шт.

VT4938

SPACER - gear, front

1шт.

VT4939

BOLT - ground body, 3/8" x 2-1/2"

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer - lock

1шт.

VT5012

X

GUARD - tubular, power take-off

1шт.

VTA2684

LEVER ASSEMBLY - shift (VTA3184), Serial Range: -5371000

1шт.

VTA2685

HOUSING - power take-off (Includes bearing cups and snap rings)

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. x 90 degree fitting - grease (Lincoln #5400)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" screw - cap hex. head, U.N.C. with lockwasher

2шт.

VTA2868

LEVER - shifter, drive gear (Use VTA3184), Start Serial: 5370999

1шт.

VTA2870

CONTROL BRACKET ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

VTA2928

CONTROL ROD ASSEMBLY (See VTA3435), Start Serial: 5370999

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" pin - groove, type #4

1шт.

VTA3184

LEVER - shifter, drive gear (See VTA2684), Start Serial: 5370999

1шт.

VTA3435

CONTROL ROD ASSEMBLY (VAH w/improved steering)

1шт.

VTA5004

BEARING, ROLLER

BEARING - pilot (Hyatt #A-1203-TS)

1шт.

Выбрано товаров: 50
