Запчасти Case IH VAC11-SERIES (108) - FRONT WHEELS AND RIMS, VAC, VA, VAO, VAH (06) - POWER TRAIN

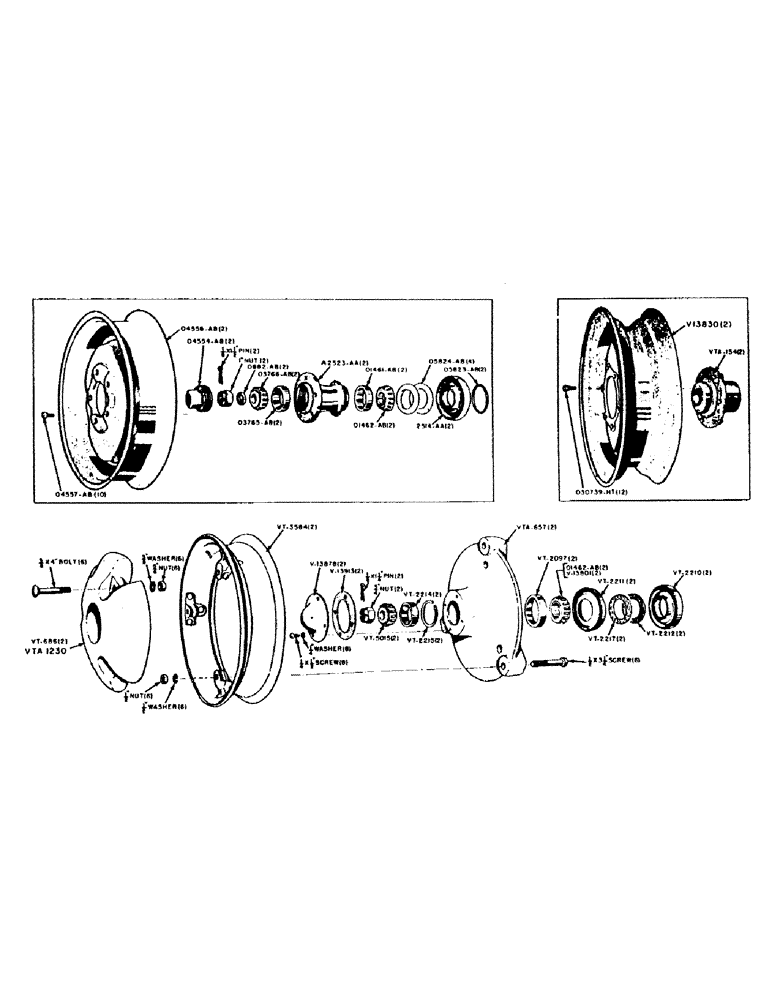

Схема запчастей Case IH VAC11-SERIES - (108) - FRONT WHEELS AND RIMS, VAC, VA, VAO, VAH (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

5642A

HUB - front wheel (Use A2523AA)

1шт.

2514AA

X

RETAINER - hub, felt (VAC adjustable), Serial Range: -5355705

2шт.

A2523AA

HUB - front wheel, for O456AB wheel, (VAC adjustable), Serial Range: -5355705

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/2" pin - cotter (VAC)

2шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon, castellated, U.N.F. (VAC)

2шт.

O882AB

WASHER - with inside lip (VAC adjustable), Serial Range: -5355705

2шт.

O1461AB

X

CUP - bearing, wheel hub, inner (Timken #14274) (VAC adjustable), Serial Range: -5355705

2шт.

O1462AB

X

CONE - bearing, wheel hub, inner (Timken #14125A) (VAC adjustable, used with VTA74, VTA75, VTA378, VTA614, VTA2552, VTA2553, VTA2696, and VTA2697 spindles), Serial Range: -5355705

2шт.

O3765AB

X

CUP - bearing, wheel hub, outer (Timken #02820) (VAC adjustable), Serial Range: -5355705

2шт.

O3766AB

BEARING

CONE - bearing, wheel hub, outer (Timken #02877) (VAC adjustable), Serial Range: -5355705

2шт.

O4236AB

X

BOLT - hub (Used with V13830 disk wheel) (Use O30739HT)

1шт.

O4554AB

CAP - hub, for 2523AA hub (VAC adjustable), Serial Range: -5355705

2шт.

O4556AB

WHEEL - front, for 5.00 x 15 tire (VAC adjustable), Serial Range: -5355705

2шт.

O4557AB

BOLT - hub, front wheel (Use with O4556ab front wheel) (VAC)

10шт.

O4780AB

BOLT - wheel weight (Use with VT624)

8шт.

NSS

NOT SOLD SEPARAT

3/8" nut - hexagon, U.N.C. with lockwasher

8шт.

O5823AB

SEAL

RETAINER - seal (VAC adjustable), Serial Range: -5355705

2шт.

O5824AB

FELT

WASHER - felt, front wheel hub (VAC adjustable), Serial Range: -5355705

4шт.

O30739HT

X

BOLT - hub (Used with V13830 disk wheel)

12шт.

A30658

ROLLER BEARING,1.375" ID x 0.771"

CONE - bearing, inner (Timken #14138A) (Use with VT5010, VTA2842, VTA2843, VTA2846, VTA2847, VTA2848, VTA2849, VTA2936, VTA2937 and VTA3222 spindles) ( replaced V13801 )

2шт.

V13830

WHEEL - disk (6.00 x 16 tire)

2шт.

V13878

CAP - hub

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" screw - machine, recessed head, U.N.C., with lockwasher

8шт.

V13913

X

GASKET - hub cap

2шт.

VT52

X

HUB - front wheel (Use VTA154)

1шт.

VT174

WHEEL - front (Use VTA657)

1шт.

VT175

WEIGHT - front wheel (Use VT686)

1шт.

VT624

WEIGHT - front wheel (Use VTA1230)

1шт.

VT686

WEIGHT - front wheel (Machinery item) (For VT174 wheel) (VAC, VA, VAO)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 4" bolt - carriage, with hex. nut and lockwasher (VAC, VA, VAO)

6шт.

VT2097

X

CUP - bearing, inner (Timken #14276)

2шт.

VT2210

X

SHIELD - dust

2шт.

VT2211

X

RETAINER - felt

2шт.

VT2212

X

WASHER - felt

2шт.

VT2214

X

CUP - bearing, outer (Timken #09195)

2шт.

VT2215

X

SNAP RING - front wheel

2шт.

VT2217

X

SEAL - dust, cork

2шт.

A30511

RIM

- with lugs, for VTA657 wheel (5.00-15 tires) (VAC, VA, VAO) ( replaced VT3584 )

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-1/4" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher (VAC, VA, VAO)

6шт.

VT5015

X

CONE - bearing, outer (Timken #09067)

2шт.

VTA154

HUB

- with bearing cups and snap ring, used with V13830 wheel

2шт.

VTA657

WHEEL - with bearing cups and snap ring, used with V13830 wheel

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F., S.F. light thick slotted

2шт.

VTA1230

WEIGHT - front wheel (Set of 2 includes bolts) (Machinery item)

1шт.
