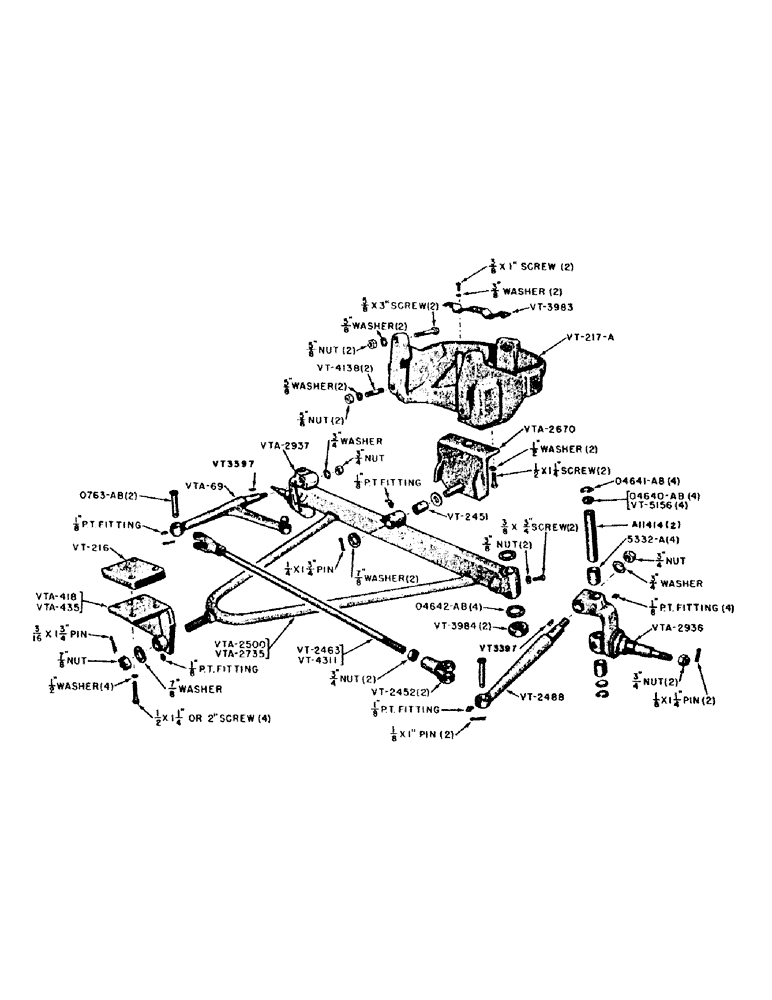

Запчасти Case IH VAC11-SERIES (104) - VA & VAO FRONT SUPPORT & 43" & 50" WHEEL TREAD, VA TRAC BEFORE 5650000 & VAO BEFORE 5656108 43", 50" (06) - POWER TRAIN

A11414

AXLE PIN,25.02mm OD x 152.4mm L

PIN - king, front axle

2шт.

5332A

X

BUSHING - steering spindle

4шт.

O763AB

PIN - tie rod, yoke end

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" pin - cotter

2шт.

O4640AB

DISK - steering spindle (Used with VTA74 and VTA75)

4шт.

O4641AB

SNAP RING - steering spindle (Used with VTA74 and VTA75)

4шт.

O4642AB

X

WASHER - thrust, steering spindle (43"), Serial Range: -4831659

4шт.

VT216

SPACER - pivot bracket (VAO tractor only)

1шт.

VT217A

SUPPORT - front

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" screw - cap, hex. head, U.N.C. w/hex. nut and lockwasher

2шт.

VT2451

BUSHING - pivot, front axle

1шт.

VT2452

YOKE end - tie rod

2шт.

VT2463

TIE ROD (See VT4311) (43")

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, jam, U.N.F. (43")

2шт.

VT2488

ARM - spindle, right-hand

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F. with lockwasher

1шт.

VT3397

KEY - Woodruff, steering arm

2шт.

VT3983

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

NSS

NOT SOLD SEPARAT

BEARING - thrust, Start Serial: 4831658

2шт.

VT4138

X

STUD - support to engine block, 5/8" x 2-7/8"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, jam, U.N.F. with lockwasher

2шт.

VT4311

TIE ROD (See VT2463) (50")

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, jam, U.N.F. (50")

2шт.

VT5156

PLUG - steering spindle

4шт.

VTA60

BRACKET - pivot, front (Use VTA2670)

1шт.

VTA69

ARM - spindle, left-hand

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F. with lockwasher

1шт.

VTA74

X

SPINDLE - right-hand (Use 1 - VTA2936, 1 - V13801 and 2 - VT5156)

1шт.

VTA75

X

SPINDLE - left-hand (Use 1 - VTA2937, 1 - V13801 and 2 - VT5156)

1шт.

VTA384

X

AXLE AND RADIUS ROD ASSEMBLY (Use VTA2735 and 2 - VT3984)

1шт.

VTA418

PIVOT ASSEMBLY - radius rod (VAO tractor only)

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VTA435

PIVOT ASSEMBLY - radius rod (VA tractor only)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher

4шт.

VTA629

AXLE AND RADIUS ROD ASSEMBLY (Use VTA2735), Serial Range: -4831659

1шт.

VTA2500

AXLE AND RADIUS ROD ASSEMBLY (50"), Start Serial: 4831658

1шт.

VTA2670

BRACKET - pivot, front

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

NSS

NOT SOLD SEPARAT

7/8" washer - plain, S.A.E. standard

2шт.

VTA2735

AXLE AND RADIUS ROD ASSEMBLY (43"), Start Serial: 4831658

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease, 67-1/2 degree elbow (Lincoln #5300)

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-3/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - set, sq. head, cup point, U.N.C. w/hex. jam nut

2шт.

NSS

NOT SOLD SEPARAT

7/8" nut - hexagon, slotted, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

7/8" washer - plain, S.A.E. standard

1шт.

VTA2842

KNUCKLE - steering, right-hand (Use 1 - VTA2936 and 2 - VT5156)

1шт.

VTA2843

KNUCKLE - steering, left-hand (Use 1 - VTA2937 and 2 - VT5156)

1шт.

VTA2936

KNUCKLE - steering, right-hand, with bushing

1шт.

VTA2937

KNUCKLE - steering, left-hand, with bushing

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

4шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" pin - cotter

2шт.

NSS

NOT SOLD SEPARAT

3/4" nut - hexagon, U.N.F., S.F. light thick slotted

2шт.
