Запчасти Case IH VAC11-SERIES (098) - VAC-13 AND VAC-14 ADJUSTABLE FRONT AXLES (06) - POWER TRAIN

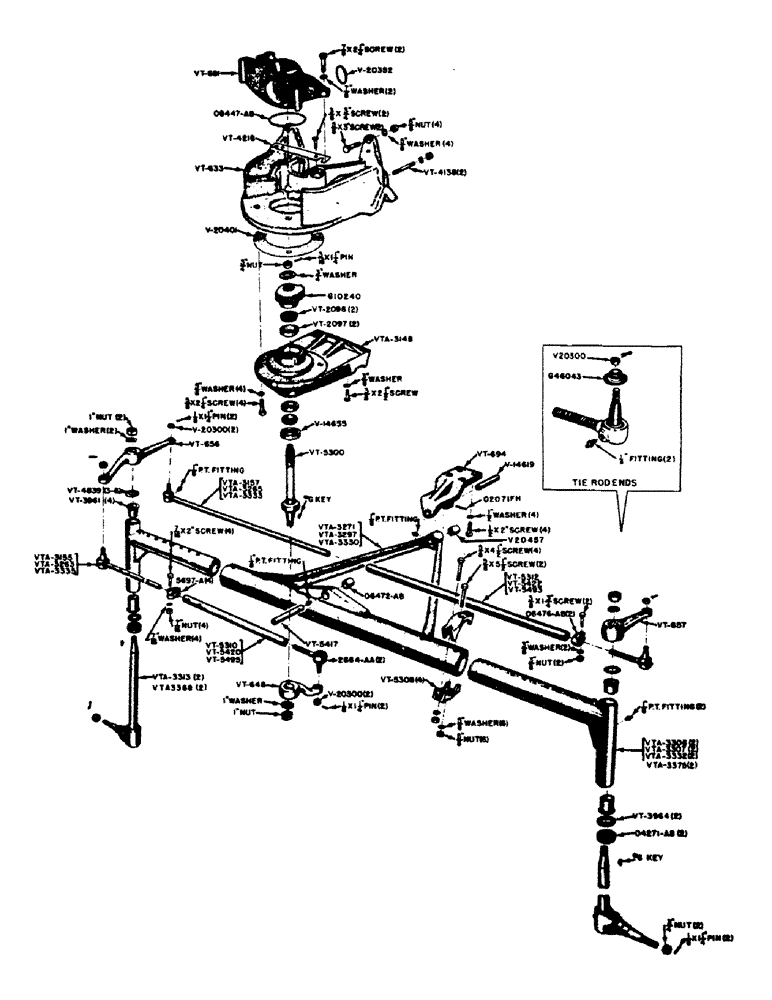

Схема запчастей Case IH VAC11-SERIES - (098) - VAC-13 AND VAC-14 ADJUSTABLE FRONT AXLES (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G10240

WORM

WHEEL - steering, Start Serial: 5650617

1шт.

G46043

COVER

- dust, tie rod and drag link ends

4шт.

5697A

X

CLAMP - tie rod and tube

4шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" N.C. hex. hd. bolt w/hex nut and lockwasher

4шт.

2664AA

X

END - tie rod

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

2шт.

O4271AB

X

BEARING - thrust, wheel spindle (Timken #T-139)

2шт.

O6472AB

X

BUSHING - front pivot, center tube

1шт.

O6476AB

X

CLAMP - inner, drag link (Includes 3/8" x 1-3/4" N.C. hex hd. bolt w/hex nut and lockwasher

2шт.

O8447AB

X

"O" RING - steering gear housing to support (5-1/2" dia.)

1шт.

O2071FH

X

ROLL PIN - (1/4" x 1-3/4") V14619 pivot pin

1шт.

V14619

PIN - pivot

1шт.

V14655

OIL SEAL - steering gear shaft

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod and drag link ends

4шт.

V20352

SCREW

"O" RING - steering gear housing (2-3/8" dia.)

1шт.

V20401

GASKET - pivot support to VT633 support

1шт.

V20457

X

BUSHING - pivot, radius rod

2шт.

VT633

SUPPORT - front axle and radiator

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" N.C. hex. hd. bolt w/hex nut and lockwasher

2шт.

VT647

SUPPORT - front pivot (Use VTA3148)

1шт.

VT648

ARM - center steering

1шт.

VT656

ARM - steering, R.H.

1шт.

VT657

ARM - steering, L.H.

1шт.

VT681

HOUSING - steering gear

1шт.

NSS

NOT SOLD SEPARAT

7/8" x 2-1/4" N.C. hex hd. bolt w/lockwasher

2шт.

VT694

BRACKET - pivot, radius rod

1шт.

VT2096

X

CONE - bearing, steering gear shaft (Timken #14137-A)

2шт.

VT2097

X

CUP - bearing, steering gear shaft (Timken #14276)

2шт.

VT3961

X

BUSHING - wheel spindle

4шт.

VT3964

X

WASHER - thrust, wheel spindle

2шт.

VT4138

X

STUD - VT633 support (5/8" x 2-7/8")

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex nut and lockwasher

2шт.

VT4218

BRACKET - radiator mounting

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" flat hd. mach. screw

2шт.

VT4839

X

SHIM - R.H. and L.H. steering arm

3-6шт.

VT5300

SHAFT - steering gear

1шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. slotted hex. nut and plain washer

1шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex. jam nut and E.T. Shakeproof lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

#G Woodruff Key

1шт.

VT5308

CLAMP - outer tube to center tube assembly

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 4-1/2" N.F. hex hd. bolt w/hex nut and lockwasher

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 5-1/2" N.F. hex hd. bolt w/hex nut and lockwasher

2шт.

VT5310

TUBE - drag link (18-1/4" long) (52" - 76" tread)

1шт.

VT5312

TUBE - tie rod (36" long) (52" - 76" tread)

1шт.

VT5417

PIN - pivot, center tube (Tractor #5659175 and after)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

VT5420

TUBE - drag link (16-1/4" long) (48" - 68" tread)

1шт.

VT5422

TUBE - tie rod (32" long) (48" - 68" tread)

1шт.

VT5493

TUBE - tie rod (28" long) (44" - 60" tread)

1шт.

VT5495

TUBE - drag link (14-1/4" long) (44" - 60" tread)

1шт.

VTA3148

SUPPORT - front pivot (Includes 2-VT2096 bearing cups)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

VTA3155

TIE ROD - notched, drag link (52" - 76" tread)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

VTA3157

TIE ROD - notched (52" - 76" tread)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

VTA3263

TIE ROD - notched, drag link (48" - 68" tread)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

VTA3265

TIE ROD - notched (48" - 68" tread)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

VTA3271

RADIUS ROD AND CENTER TUBE ASSEMBLY (52" - 76" tread)

1шт.

VTA3297

RADIUS ROD AND CENTER TUBE ASSEMBLY (48" - 68" tread)

1шт.

VTA3306

TUBE ASSEMBLY - outer (Includes 2-VT3961 bushing) (52" - 76" tread)

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

VTA3307

TUBE ASSEMBLY - outer (Includes 2-VT3961 bushings) (48" - 68" tread)

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

VT3313

KNUCKLE - steering and wheel

2шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex jam nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

#G Woodruff key

2шт.

VTA3330

RADIUS ROD AND CENTER TUBE ASSEMBLY (44" - 60" tread)

1шт.

VTA3332

TUBE ASSEMBLY - outer (Includes 2-VT3961 bushings) (44" - 60")

2шт.

VTA3333

TIE ROD - notched (44" - 60" tread)

1шт.

VTA3335

TIE ROD - notched, drag link (44" - 60" tread)

1шт.

VTA3368

KNUCKLE - front wheel (VAO 15)

2шт.

VTA3375

TUBE ASSEMBLY - outer (Includes 2-VT3961 bushings) VAO 15

2шт.

Выбрано товаров: 82
