Запчасти Case IH VAC11-SERIES (094) - VAC ADJUSTABLE FRONT AXLE, TRACTORS BEFORE 5570000, BEFORE 525505, 5255705 TO 5370500, AFTER 5370499 (06) - POWER TRAIN

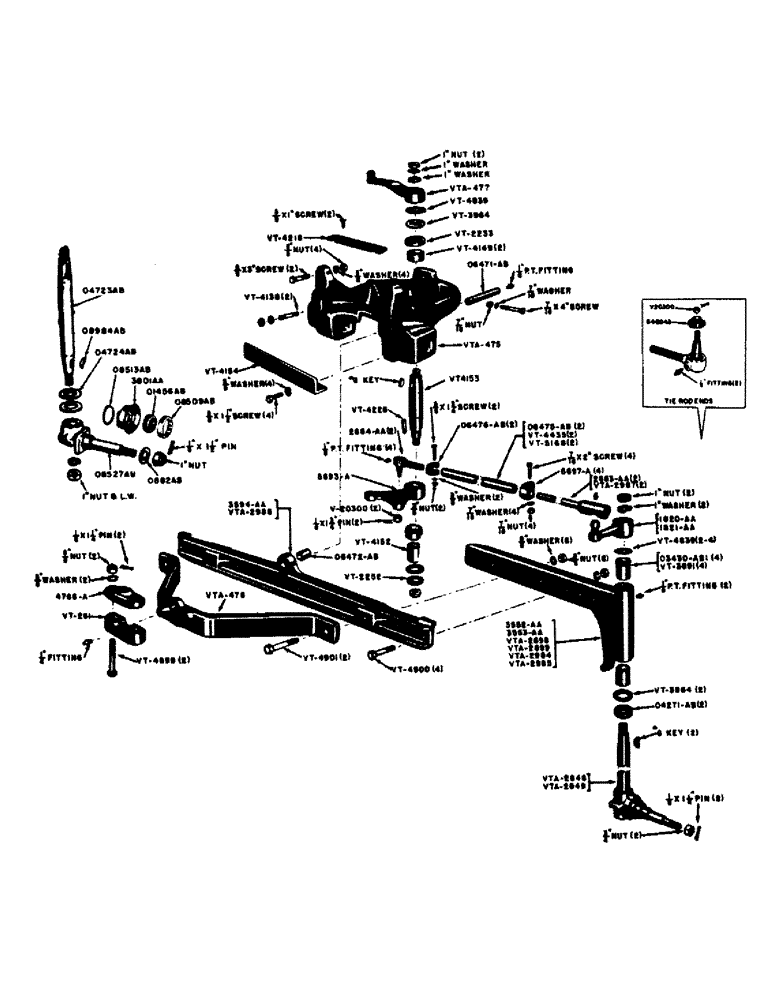

Схема запчастей Case IH VAC11-SERIES - (094) - VAC ADJUSTABLE FRONT AXLE, TRACTORS BEFORE 5570000, BEFORE 525505, 5255705 TO 5370500, AFTER 5370499 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G46043

COVER

DUST SEAL - tie rod end

1шт.

4766A

CAP - ball socket

1шт.

5688A

AXLE - outer section (Use 3552AA)

1шт.

5689A

AXLE - outer section (Use 3553AA)

1шт.

5690A

AXLE - center section (Use 3594AA)

1шт.

5693A

ARM - steering, lower

1шт.

5697A

X

CLAMP - tie rod

4шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" N.C. hex. hd. bolt w/hex. nut and lockwasher

4шт.

1820AA

ARM - steering L.H.

1шт.

1821AA

ARM - steering, R.H.

1шт.

2663AA

TIE ROD - notched (Before #5255705, Serial Range: #5255705-#5370500)

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000) (Before #5255705, Serial Range: #5255705-#5370500)

2шт.

2664AA

X

END - tie rod

2шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-3/4" cotter pin

2шт.

3552AA

AXLE - outer section, R.H. (Includes bushing), Serial Range: -5255705

1шт.

3553AA

AXLE - outer section, L.H. (Includes bushing), Serial Range: -5255705

1шт.

3594AA

AXLE - center section (Includes bushing) (Before #5255705, Serial Range: #5255705-#5370500)

1шт.

3801AA

X

RETAINER - felt seal, wheel hub, Serial Range: -5255705

2шт.

O882AB

WASHER - thrust, wheel bearing, Serial Range: -5255705

2шт.

O1456AB

CONE

- inner bearing, wheel (Timken #2788) (Before #5255705), Serial Range: -5255705

2шт.

O3430AB1

BUSHING - wheel spindle, Serial Range: -5255705

4шт.

O4271AB

X

BEARING - thrust, wheel spindle (Timken #T-139) (#5255705 to #5370500) (After #5370499)

2шт.

O4723AB

KINGPIN - wheel spindle, Serial Range: -5255705

2шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex. jam nut and lockwasher, Serial Range: -5255705

4шт.

O4724AB

X

WASHER - thrust, king pin, Serial Range: -5255705

4шт.

O6471AB1

PIN - pivot, axle

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

O6472AB

X

BUSHING - pivot, axle center section

1шт.

O6475AB

TIE ROD - threaded, Serial Range: -5255705

2шт.

O6476AB

X

CLAMP - tie rod end (Includes bolt and nut)

2шт.

O6621AB

SPINDLE - wheel (Use 3801AA, O1456AB, O8509AB, O8513AB and O8527AB)

1шт.

O8509AB

X

CUP - inner bearing, wheel (Timken #2726), Serial Range: -5255705

2шт.

O8513AB

X

SEAL - felt, wheel hub, Serial Range: -5255705

2шт.

O8527AB

SPINDLE - front wheel, Serial Range: -5255705

2шт.

O8984AB

X

KEY - Woodruff, spindle to king pin, Serial Range: -5255705

2шт.

V20300

OPERATOR MANUAL

NUT - tie rod end

2шт.

VT260

SUPPORT - (Use VTA475)

1шт.

VT261

SOCKET - ball

1шт.

NSS

NOT SOLD SEPARAT

1/4" fitting (Alemite #1743)

1шт.

VT528

AXLE - outer section (Use VTA2698)

1шт.

VT529

AXLE - outer section (Use VTA2699)

1шт.

VT610

AXLE - outer section (Use VTA2984)

1шт.

VT611

AXLE - outer section (Use VTA2985)

1шт.

VT612

AXLE - center section (Use VTA2986)

1шт.

VT2233

X

OIL SEAL - steering shaft

1шт.

VT2252

WASHER - lock, steering shaft

1шт.

VT3961

X

BUSHING - spindle (#5255705 to #5370500, After #5370499)

4шт.

VT3964

X

WASHER - thrust, spindle, Serial Range: -5255705

1шт.

VT3964

X

WASHER - thrust, spindle (#5255705 to #5370500, After #5370499)

3шт.

VT4138

X

STUD - axle support (5/8" x 2-7/8")

2шт.

VT4149

BUSHING - spindle arm

2шт.

VT4152

COLLAR - slip, steering shaft

1шт.

VT4153

SHAFT - steering

1шт.

NSS

NOT SOLD SEPARAT

#G Woodruff key

1шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex. jam nut w/Shakeproof washer and plain washer

2шт.

VT4154

SUPPORT - ball socket

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

VT4218

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" flat hd. machine screw

2шт.

VT4228

X

KEY - steering arm

1шт.

VT4435

TUBE - tie rod, Serial Range: 5255705-5370500

2шт.

VT4839

X

SHIM - upper steering arm (.010")

1шт.

VT4899

BOLT - ball socket (5/8" x 2-1/4")

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. slotted hex. nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

2шт.

VT4900

BOLT - axle outer section to center section (5/8" x 2-1/4")

4шт.

VT4901

BOLT - radius rod to axle (5/8" x 4")

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

6шт.

VT5168

TUBE - tie rod, Start Serial: 5370499

2шт.

VTA475

SUPPORT - axle and radiator

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000)

1шт.

NSS

NOT SOLD SEPARAT

1/8" 67-1/2 degree fitting (Lincoln #5300)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" N.C. hex. hd. bolt w/lockwasher

2шт.

VTA477

ARM - steering, upper

1шт.

VTA478

RADIUS ROD

1шт.

VTA2696

X

SPINDLE (Use VTA2848 and V13801 bearing cone)

1шт.

VTA2697

X

SPINDLE (Use VTA2849 and V13801 bearing cone)

1шт.

VTA2698

AXLE - outer section, R.H., Serial Range: 5255705-5370500

1шт.

VTA2699

AXLE - outer section, L.H., Serial Range: 5255705-5370500

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000), Serial Range: 5255705-5370500

4шт.

VTA2848

SPINDLE - steering, R.H. (#5255705 to #5370500, After #5370499)

1шт.

VTA2849

SPINDLE - steering, L.H. (#5255705 to #5370500, After #5370499)

1шт.

NSS

NOT SOLD SEPARAT

#G Woodruff key (#5255705 to #5370500, After #5370499)

2шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex. jam nut w/lockwasher (#5255705 to #5370500, After #5370499)

2шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. slotted hex. nut (#5255705 to #5370500, After #5370499), Start Serial: 5370499

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin (#5255705 to #5370500, After #5370499)

2шт.

VTA2984

AXLE - outer section, R.H. (Includes bushing), Start Serial: 5370499

1шт.

VTA2985

AXLE - outer section, L.H. (Includes bushing), Start Serial: 5370499

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000), Start Serial: 5370499

4шт.

VTA2986

AXLE - center section (Includes bushing), Start Serial: 5370499

1шт.

VTA2987

TIE ROD - notched, Start Serial: 5370499

2шт.

Выбрано товаров: 93
