Запчасти Case IH VAC11-SERIES (090) - VAC SINGLE FRONT WHEELS, TRACTORS BEFORE #5570000 (06) - POWER TRAIN

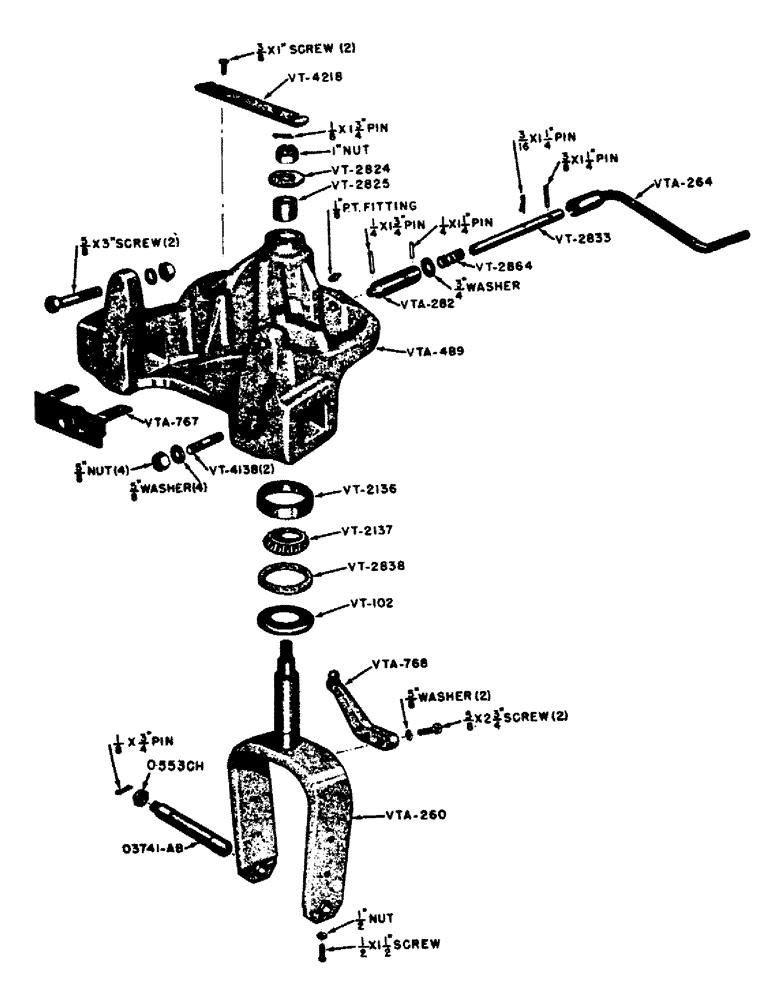

Схема запчастей Case IH VAC11-SERIES - (090) - VAC SINGLE FRONT WHEELS, TRACTORS BEFORE #5570000 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

O3741AB

AXLE

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-3/4" pin - cotter

1шт.

O1553CH

X

NUT - hexagon

1шт.

VT102

RETAINER - felt, fork bearing

1шт.

VT249

BRACKET - front (Use VTA489)

1шт.

VT2136

X

CUP - bearing (Timken #382)

1шт.

VT2137

CONE - bearing (Timken #389A)

1шт.

VT2824

WASHER - fork spindle

1шт.

VT2825

BUSHING - front bracket, oilite

1шт.

VT2833

SHAFT - starting crank

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" pin - groove, type #5

1шт.

NSS

NOT SOLD SEPARAT

3/4" washer - plain, S.A.E. standard

1шт.

VT2838

WASHER - felt

1шт.

VT2864

SPRING

- starting crank

1шт.

VT4138

X

STUD - 5/8" x 2-7/8"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

2шт.

VT4218

BRACKET - radiator

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" screw - machine, counter sunk head, U.N.C.

2шт.

VTA260

FORK ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-3/4" pin - cotter

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" screw - set, square head, dog point, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

1/2" nut - hexagon, jam, U.N.C.

1шт.

NSS

NOT SOLD SEPARAT

1" nut - hexagon, castellated, U.N.F.

1шт.

VTA264

CRANK ASSEMBLY

1шт.

VTA282

JOINT - universal, crank

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" pin - groove, type #5

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" pin - groove, type #5

1шт.

VTA489

BRACKET - front (Includes bushing and bearing cup)

1шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting - grease (Lincoln #5000)

1шт.

VTA767

BEARING - starting crank joint

1шт.

VTA768

ARM - steering spindle

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-3/4" screw - cap, hex. head, U.N.C. with lockwasher

2шт.

Выбрано товаров: 33
