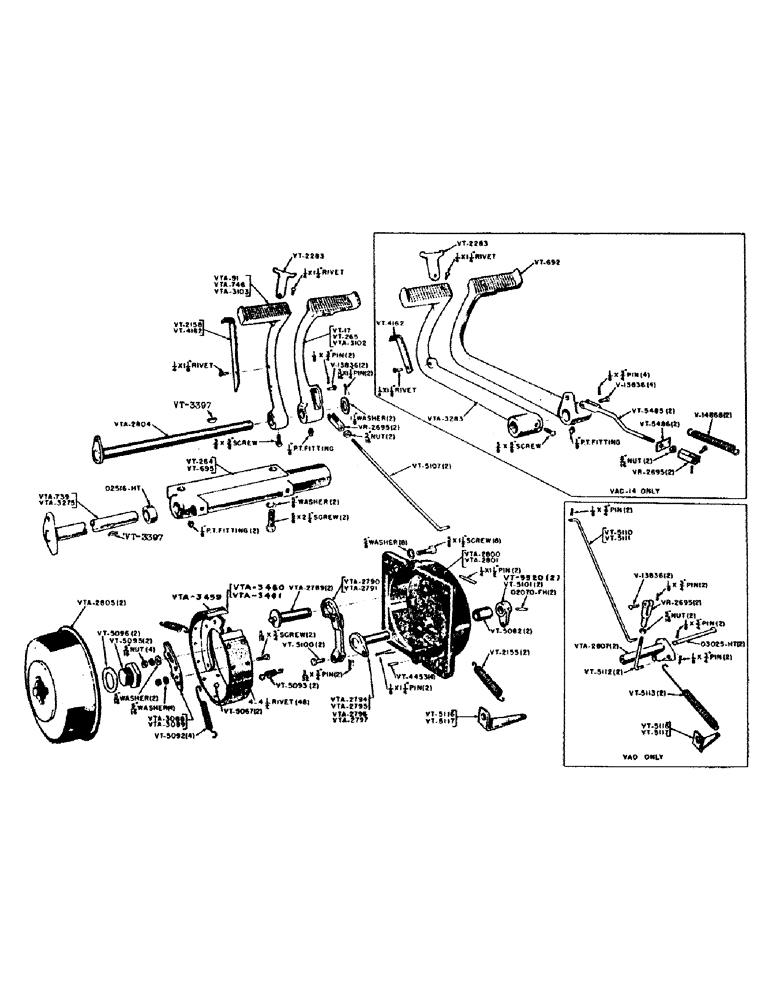

Запчасти Case IH VAC11-SERIES (066) - VAC, VA AND VAO BAND TYPE BRAKE ASSEMBLIES (06) - POWER TRAIN

O2070FH

X

ROLL PIN - for VT5520 lever

2шт.

O2516HT

BUSHING - brake shaft spacer (VAC14) (VAC)

1шт.

O3025HT

PIN - drilled (3/8" x 5) (VAO)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin (VAO)

2шт.

V13836

PIN - clevis (5/16" x 15/16") (VAC)

4шт.

V13836

PIN - clevis (5/16" x 15/16") (VA, VAO)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin (CAV)

4шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin (VAO)

2шт.

V14868

SPRING - brake return (VAC14) See VT2155 (VAC)

2шт.

VR2695

X

YOKE END - adjusting

2шт.

VT16

PEDAL - brake (Use VTA91)

1шт.

VT17

PEDAL - R.H. brake (VAC, VA), Serial Range: -5558747

1шт.

VT264

HOUSING - brake shaft (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000) (VAO)

1шт.

VT265

PEDAL - R.H. brake (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000) (VAO)

1шт.

VT266

PEDAL L.H. BRAKE (Use VTA746) (VAO)

1шт.

VT556

COVER (USe VTA2800)

1шт.

VT557

COVER (Use VTA2801)

1шт.

VT654

PEDAL - brake (Use VTA3102)

1шт.

VT655

PEDAL - brake (Use VTA3103)

1шт.

VT692

PEDAL - R.H. brake (VAC14 only) (VAC)

1шт.

VT693

PEDAL - brake (Use VTA3283) (VAC)

1шт.

VT695

HOUSING - brake shaft (VAC14 only) (VAC)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000) (VAC)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex. hd. cap screw w/lockwasher (VAC)

2шт.

VT2155

X

SPRING - brake return (See V14868) (VAC, VA)

2шт.

VT2158

CATCH - brake (See VT4162) (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/8" rd. hd. rivet (VAC, VA)

1шт.

VT2283

INTERLOCK - brake pedal

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" ctsk. hd. rivet

1шт.

VT3397

KEY - Woodruff, pedal to shaft (VAC, VA)

2шт.

VT4162

X

CATCH - brake (VAC14) (See VT2158) (VAC, VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/8" rd. hd. rivet (VAC, VAO)

1шт.

VT4453

X

PIN - locating, brake cover

4шт.

VT5067

RIVET - shoulder, brake lining

2шт.

VT5082

BUSHING - brake cover

2шт.

VT5092

X

SPRING - brake link

4шт.

VT5093

X

SPRING - brake retaining

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

2шт.

VT5095

NUT - brake drum

2шт.

VT5096

X

LOCK - nut

2шт.

VT5100

PIN - clevis, brak link

2шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

2шт.

VT5107

X

ROD - brake (See VT5485) (VAC, VA)

2шт.

NSS

NOT SOLD SEPARAT

5/16" N.E. Hex. nut (VAC, VA)

2шт.

VT5110

ROD - brake R.H. (VAO)

1шт.

VT5111

ROD - brake L.H. (VAO)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin (VAO)

1шт.

VT5112

LINK - adjusting, brake (VAO)

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin (VAO)

2шт.

VT5113

X

SPRING - brake return (VAO)

2шт.

VT5116

ANCHOR - R.H. return spring

1шт.

VT5117

ANCHOR - L.H. return spring

1шт.

VT5485

ROD - brake (VAC 14 only) See VT5107 (VAC)

2шт.

NSS

NOT SOLD SEPARAT

5/16" N.F. hex. nut (VAC)

2шт.

VT5486

CLIP - brake spring (VAC 14 only) (VAC)

2шт.

VT5520

LEVER - outer, brake assembly

2шт.

VTA91

PEDAL - brake, L.H. (VAC, VA), Serial Range: -5548747

1шт.

VTA739

SHAFT - clutch and brake (VAO)

1шт.

VTA746

PEDAL - brake, L.H. (VAO)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 5/8" N.C. sq. hd. cup pt set screw (VAO)

1шт.

VTA2789

PIN - brake spring anchor

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" groove pin-type #5

2шт.

VTA2790

CAM AND LINK ASSEMBLY - R.H.

1шт.

VTA2791

CAM AND LINK ASSEMBLY - L.H.

1шт.

VTA2794

LEVER ASSEMBLY - internal, R.H. (VAO)

1шт.

VTA2795

LEVER ASSEMBLY - internal, L.H. (VAO)

1шт.

VTA2796

LEVER ASSEMBLY - internal, R.H. (VAC, VA)

1шт.

VTA2797

LEVER ASSEMBLY - internal, L.H. (VAC, VA)

1шт.

VTA2800

COVER - R.H. brake (Includes VT5082 bushing)

1шт.

VTA2801

COVER - L.H. brake (Includes VT5082 bushing)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

8шт.

VTA2804

SHAFT - clutch and brake pedal (VAC, VA)

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-1/4" cotter pin (VAC, VA)

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" plain washer (VAC, VA)

2шт.

VTA2805

X

DRUM - brake

2шт.

VTA2807

BELL CRANK ASSEMBLY - brake (VAO)

2шт.

VTA3088

END PLATE - adjustable, R.H.

1шт.

VTA3103

PEDAL - brake, L.H. (See VTA3283), Start Serial: 5558746

1шт.

VTA3275

SHAFT - clutch and brake (VAC 14 only) (VAC)

1шт.

VTA3283

PEDAL - brake, L.H. (VAC 14 only) (See VTA3103) (VAC)

1шт.

VTA3459

X

SET OF 2 brake linings and rivets

1шт.

VTA3460

X

SHOE - R.H. brake (Includes lining and end plate)

1шт.

VTA3461

X

SHOE - L.H. brake (Includes lining and end plate)

1шт.

VTA3089

X

END PLATE - adjustanle, L.H.

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex. hd. bolt w/plain washer

2шт.

NSS

NOT SOLD SEPARAT

5/16" x N.F. hex. nut and lockwasher

4шт.

VTA3102

PEDAL - brake, R.H. See VT692 (VAC, VA), Start Serial: 5558746

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. fitting (Lincoln #5000) (VAC, VA)

1шт.
