Запчасти Case IH VAC11-SERIES (058) - TRANSMISSION CASE AND AXLE HOUSING, VAC, VA, VAO (06) - POWER TRAIN

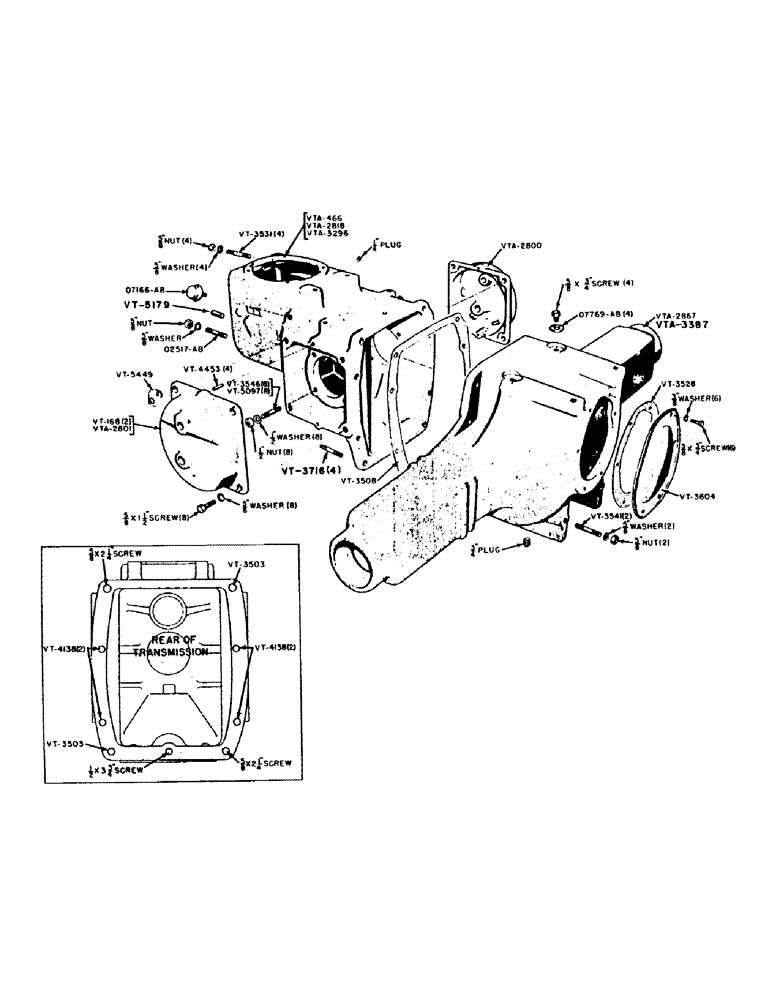

Схема запчастей Case IH VAC11-SERIES - (058) - TRANSMISSION CASE AND AXLE HOUSING, VAC, VA, VAO (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

O2517AB

X

STUD - 5/8" x 4-5/8"

1шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

1шт.

O7166AB

X

BREATHER

1шт.

O7769AB

X

GASKET - rockshaft mounting holes (Tractors without eagle hitch) (VA, VAO)

4шт.

VT166

CASE - transmission (Use VTA466)

1шт.

VT168

COVER - brake (VAC tractors before #5455000 and VAC tractors #5455500 to #5555000, VA and VAO tractors before #5555000 with disk type brakes)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" screw - cap, hex. head, U.N.C. with lockwasher

8шт.

VT241

CASE - transmission (Use VTA466)

1шт.

VT242A

HOUSING - axle (Use VTA2867)

1шт.

VT556

COVER - brake, right-hand (Use VTA2800)

1шт.

VT557

COVER - brake, left-hand (Use VTA2801)

1шт.

VT561

CASE - transmission (Use VTA2818)

1шт.

VT590

HOUSING - axle (Use VTA2867)

1шт.

VT696

CASE - transmission (Use VTA3296)

1шт.

VT708

HOUSING - axle (Use VTA3387)

1шт.

VT3476

STUD - 1/2" x 2" (Tractors before #4828245)

2шт.

VT3503

X

BOLT - ground body, 5/8" x 2-1/4", transmission case to axle housing

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

2шт.

VT3508

X

GASKET - transmission case to axle housing

1шт.

VT3528

X

GASKET - axle housing to rear cover

1шт.

VT3531

X

STUD - 5/8" x 3" (Transmission case to torque tube)

4шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

4шт.

VT3541

STUD - drawbar, 5/8" x 2"

2шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

2шт.

VT3546

X

STUD - 1/2" x 2-1/2" differential bearing carrier (VAC tractors before #5455000 and VAC tractors #5455000 to #5555000, VA and VAO tractors before #5555000 with disk type brakes) (See VT5097)

8шт.

VT3604

COVER - axle housing, rear

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" screw - cap, hex. head, U.N.C. with lockwasher

6шт.

VT3716

STUD - axle housing to transmission case (5/8" x 2-1/2") (VAC)

4шт.

VT4138

X

STUD - 5/8" x 2-7/8" (Transmission case to axle housing) (Tractors after #4828244)

4шт.

NSS

NOT SOLD SEPARAT

5/8" nut - hexagon, U.N.F., S.F. light series with lockwasher

4шт.

VT4453

X

PIN - dower, locating (Use with VTA2800 and VTA2801 covers)

4шт.

VT5097

STUD - 1/2" x 1-15/16" differential bearing carrier (VAC tractors #5455000 to #5455500, VAC, VA, and VAO after #5554999 with band-type brakes)

8шт.

NSS

NOT SOLD SEPARAT

1/2" nut - hexagon, U.N.F., S.F. light series

8шт.

NSS

NOT SOLD SEPARAT

1/2" washer - Shakeproof, E.T.

8шт.

VT5179

X

PIN - dowel, torque tube to transmission case

2шт.

VT5449

CLIP - crank holder (VAC-14 only) (VAC)

1шт.

VTA466

CASE - transmission (Includes snap rings, bearing cups and studs) (VAC tractors before #5455000 and VAC tractors #5455000 to #5555000, VA and VAO tractors before #5555000 with disk type breakes) (See VTA2818)

1шт.

VTA467

HOUSING - rear axle, stripped (Use VTA2867)

1шт.

VTA2800

COVER - brake, right-hand, with bushing (VAC tractors #5455000 to #5455500, VAC, VA and VAO tractors after #5554999 with band-type brakes)

1шт.

VTA2801

COVER - brake, left-hand, with bushing (VAC tractors #5455000 to #5455500, VAC, VA and VAO tractors after #5554999 with band-type brakes)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" screw - cap, hex. head, U.N.C. with lockwasher

8шт.

VTA2818

CASE - transmission (Includes snap rings, bearing cups and studs) (VAC tractors #5455000 to #5455500, VAC, VA, and VAO tractors after #5554999 with band-type brakes) (See VTA466) (See VTA3296 for VAC14)

1шт.

NSS

NOT SOLD SEPARAT

1/4" plug - pipe, slotted head

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-3/4" screw - cap, hexagon head, U.N.C. with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" screw - cap, hex. head, U.N.C. with hex. nut and lockwasher

2шт.

VTA2867

HOUSING - rear axle (Includes bearing cups, snap rings, and studs)

1шт.

NSS

NOT SOLD SEPARAT

3/4" plug - pipe, standard sqaure head

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 3/4" screw - cap, hex. head, U.N.C. (VA, VAO)

4шт.

VTA3296

CASE - transmission (Includes snap rings, bearing cups, 1/4" slotted hd. pipe plug and studs) (VAC14 only) (See VTA2818) (VAC)

1шт.

VTA3387

HOUSING - rear axle (Includes snap rings, bearing cups and pipe plug) (VAC)

1шт.

Выбрано товаров: 50
